243
ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
38
r Symbols (decimal point, digit group separator, etc) used in Windows may vary depending on
VJGNQECNG$GUWTGVQEJGEMDGHQTGGFKVKPICƂNG
r 2KRWNUGXCNWGCVVJGVKOGQHUCXKPIVJG%58ƂNGKUQWVRWVYKVJCPKPXCNKFQWVQHVJGOGTIG
UEQRGXCNWGŨ6QGPCDNGRWNUGXCNWGOGTIGTGYTKVGKVVQCXCNKFTCPIGXCNWG
r &CKMKPTGEQOOGPFU[QWVQNGCXGVJGOCPCIGOGPVRQKPV+&KPVJG%58ƂNGKPDNCPMUQVJCV
they are automatically set up at loading.
NOTE

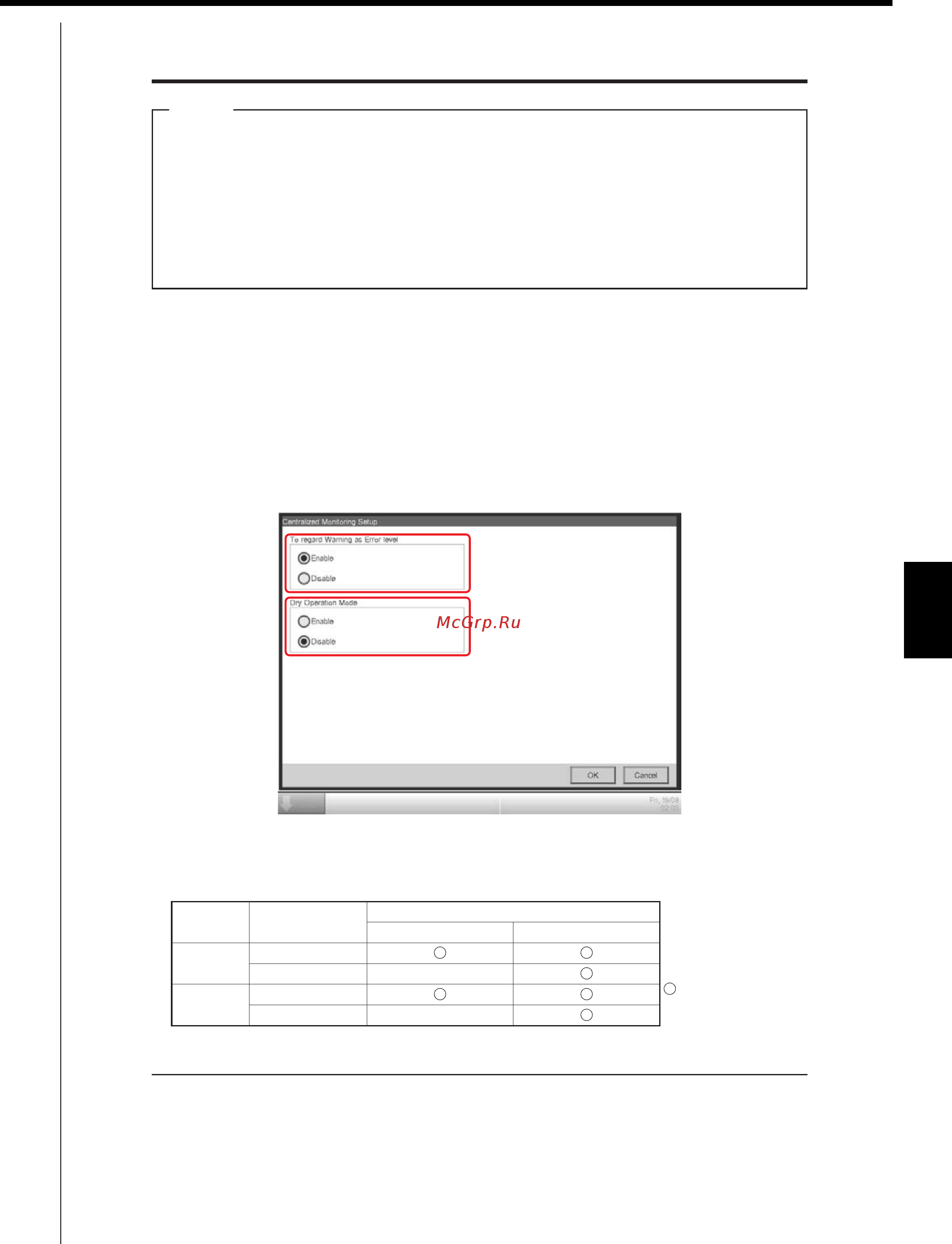

4-2 Other Setting
Sets up whether to recognize the “Warning” from a management point as an error and indicate it
XKCKEQPCPFJKUVQT[#NUQ'PCDNGU&KUCDNGUVJG&T[QRGTCVKQPOQFG
1. Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7).
Touch the Other Setting button on the Service Settings tab to display the Centralized Monitoring
Setup screen (see page 10).
(1)
(2)
2. 'PCDNG&KUCDNGWUKPIVJGTo regard Warning as Error level radio button (1). The following table
shows the displayed content for each error type depending on the setting.
Err Type
Error detection level
[Legend]
: Error indication
×: No error indication
Not regard Warning as Error level
Regard Warning as Error level
Icon
Equipment error
Warning ×
History
Equipment error
Warning ×
