1.7 Adaptor for Wiring <KRP1B61 / KRP1BA54, B56, BA57, BA59 / KRP1C63, C64> 93
ED721208 Adaptor
4
KRP1BA54, B56, BA57, BA59
•

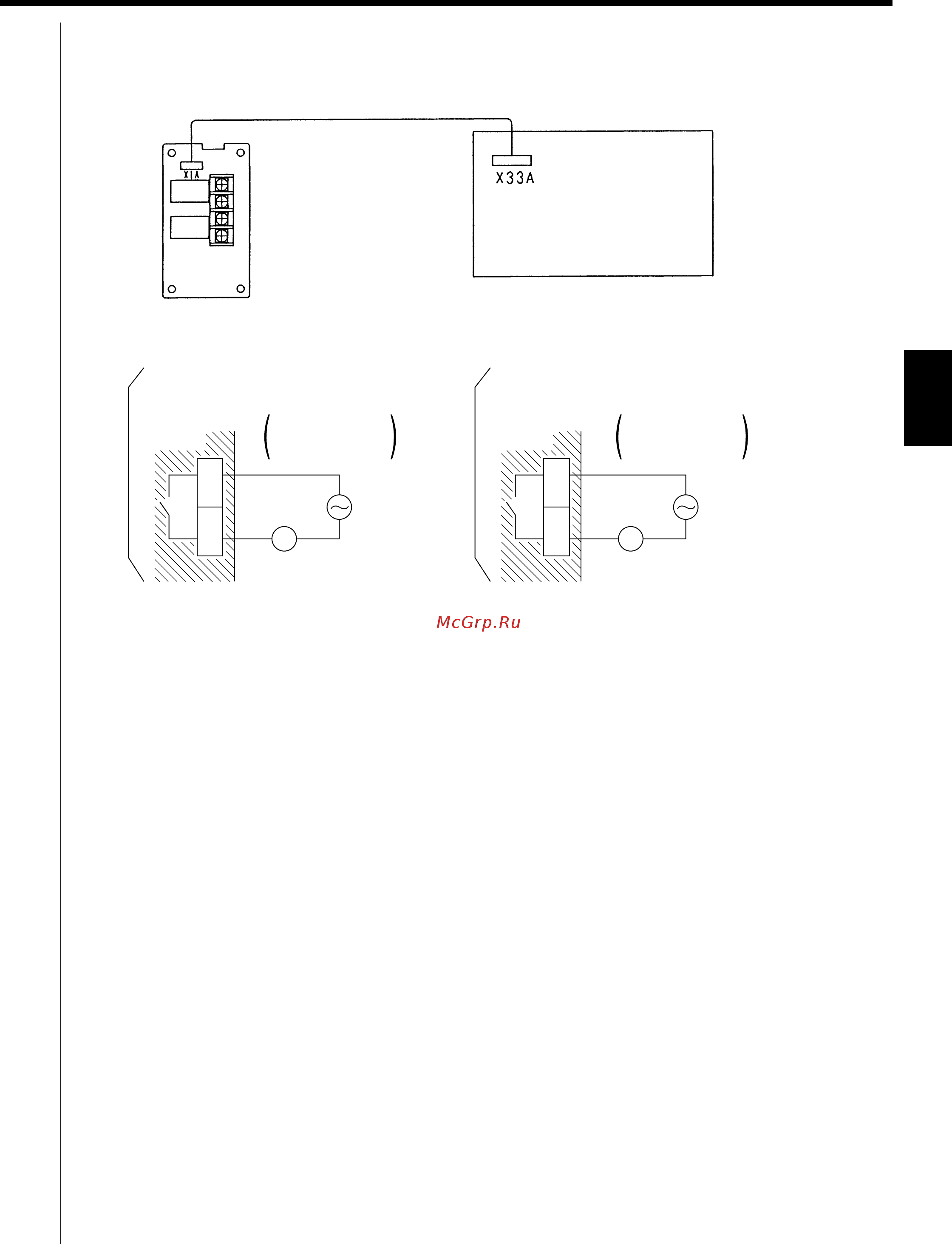

Refer to the WIRING DIAGRAM attached to the indoor unit before attempting to wire.
[Make sure wires to units do not pass over the PCB when wiring]
•
Wire the adaptor to the indoor unit as described below.
Indoor unit PCB
(FXZQ,FXD(Q) : X16A)
Fetching the operation display signal
•
Attaching an hour meter
Output is generated at the contact while
the compressor is running.
•
Fan ON display
Output is generated at the contact while the
fan is running.
X1
X2
HM
Carrying capacity
20mA and above
or 1.2A and below
Carrying capacity
20mA and above
or 1.2A and below
AC 220
~240V
AC 220
~240V
HM: Hour meter
(Field supplied part)
OL: Operation lamp
(Field supplied part)
X1
X2
OL
Example: Example:
