56 1.1 Wiring Adaptor for Electrical Appendices (1) <KRP2A61 / KRP2A62 / KRP2A53>
Adaptor ED721208
<Initial Setting>
1. Remote control input (Operation control)

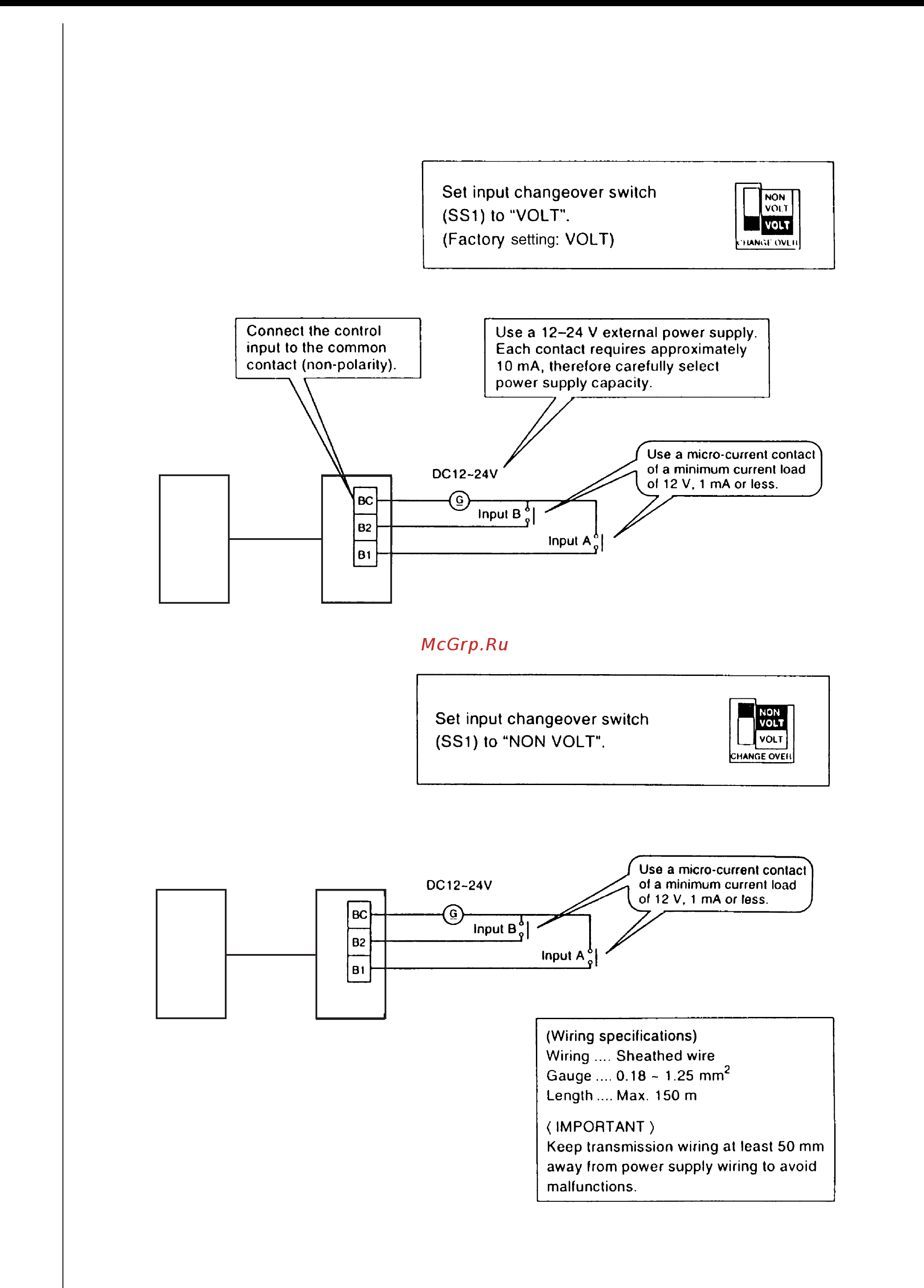

Wire as described below. Wiring differs depending on whether using a voltage or non-voltage input.
C: 1PA63642C
For voltage input
For non-voltage input
Wiring adaptor PCB
KRP2A61·62·53
Indoor
unit
PCB
F1 F2
Wiring adaptor PCB
KRP2A61·62·53
Indoor
unit
PCB
F1 F2
