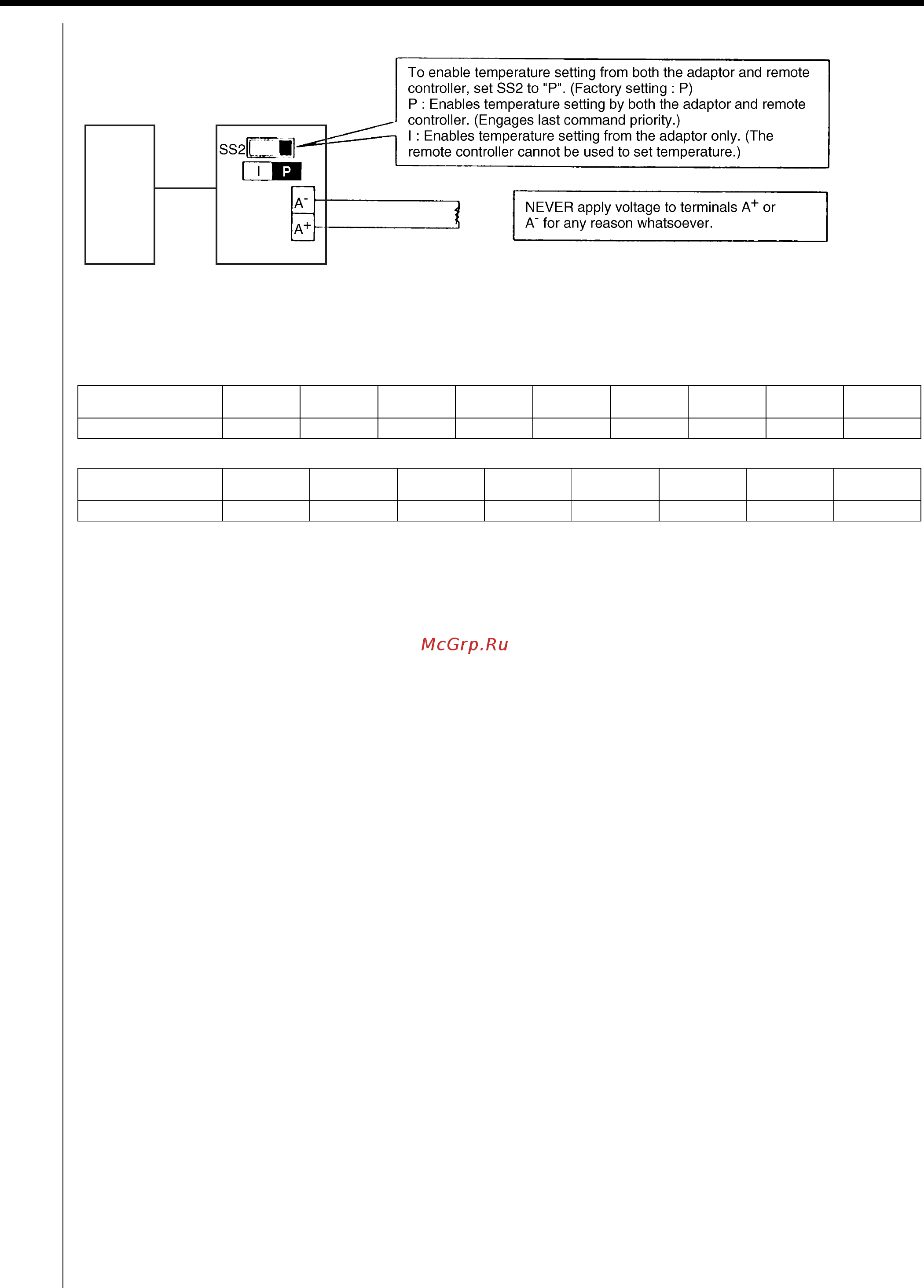

60 1.1 Wiring Adaptor for Electrical Appendices (1) <KRP2A61 / KRP2A62 / KRP2A53>
Adaptor ED721208
3. Temperature setting input
Temperature setting corresponds to resistance values in the range of 0 to 135Ω. Their relationship is as shown below.
Note:
Wiring resistance included in above figures.
(Wiring specifications)
Wiring ... Sheathed wire
Gauge ... 1.25
~
2.00 mm²
Length ... Max. 70 m
(IMPORTANT)
Keep transmission wiring at least 50 mm away from power supply wiring to avoid malfunctions.
Temperature Setting
(°C)
16 17 18 19 20 21 22 23 24
Resistance (Ω) 0.0~3.4 5.0~11.6 13.8~20.0 22.4~28.4 31.0~36.4 39.4~44.8 48.2~52.8 56.6~61.2 65.2~69.4
Temperature Setting
(°C)
25 26 27 28 29 30 31 32
Resistance (Ω) 73.8~77.8 82.4~85.8 91.0~94.0 99.4~102.2 108.6~110.4 117.2~119.2 125.8~127.4 134.2~140.0
Wiring adaptor PCB
KRP2A61·62·53
Indoor
unit
PCB
F1 F2
C: 1PA63642C
