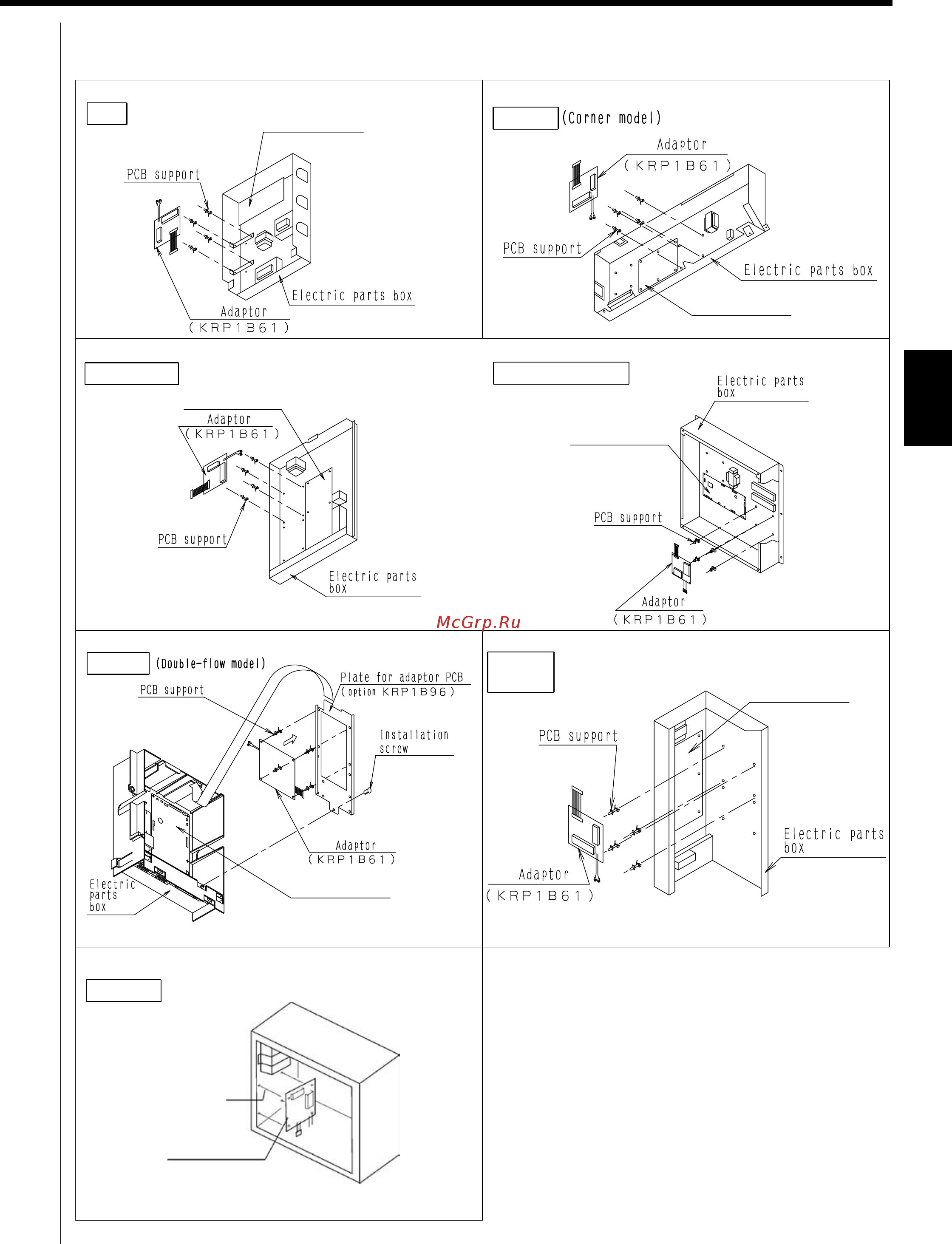

1.7 Adaptor for Wiring <KRP1B61 / KRP1BA54, B56, BA57, BA59 / KRP1C63, C64> 89
ED721208 Adaptor
4
z Installation differs according to models as shown below.
z Do not bundle low and high voltage wires together.
z Bundle any access wires with the attached clamps so as to keep loose wirings off the indoor unit PCB
Ceiling mounted built-in type Ceiling mounted cassette type
Ceiling mounted duct type
Ceiling mounted cassette type Floor-standing type
Ceiling mounted low silhouette duct type
FXS
Indoor unit PCB
FXK (Q)
Indoor unit PCB
FXM40~125
Indoor unit PCB
FXM (Q) 200 · 250
Indoor unit PCB
FXC (Q)
Note: A separate plate is needed to install the adaptor PCB.
Indoor unit PCB
FXL (Q)
FXN (Q)
Indoor unit PCB
FXYD-KA
PCB support
Adaptor PCB
KRP1B61
Note: Installation box is necessary for second adaptor
