Adding and Editing Areas or Management Points

(18)

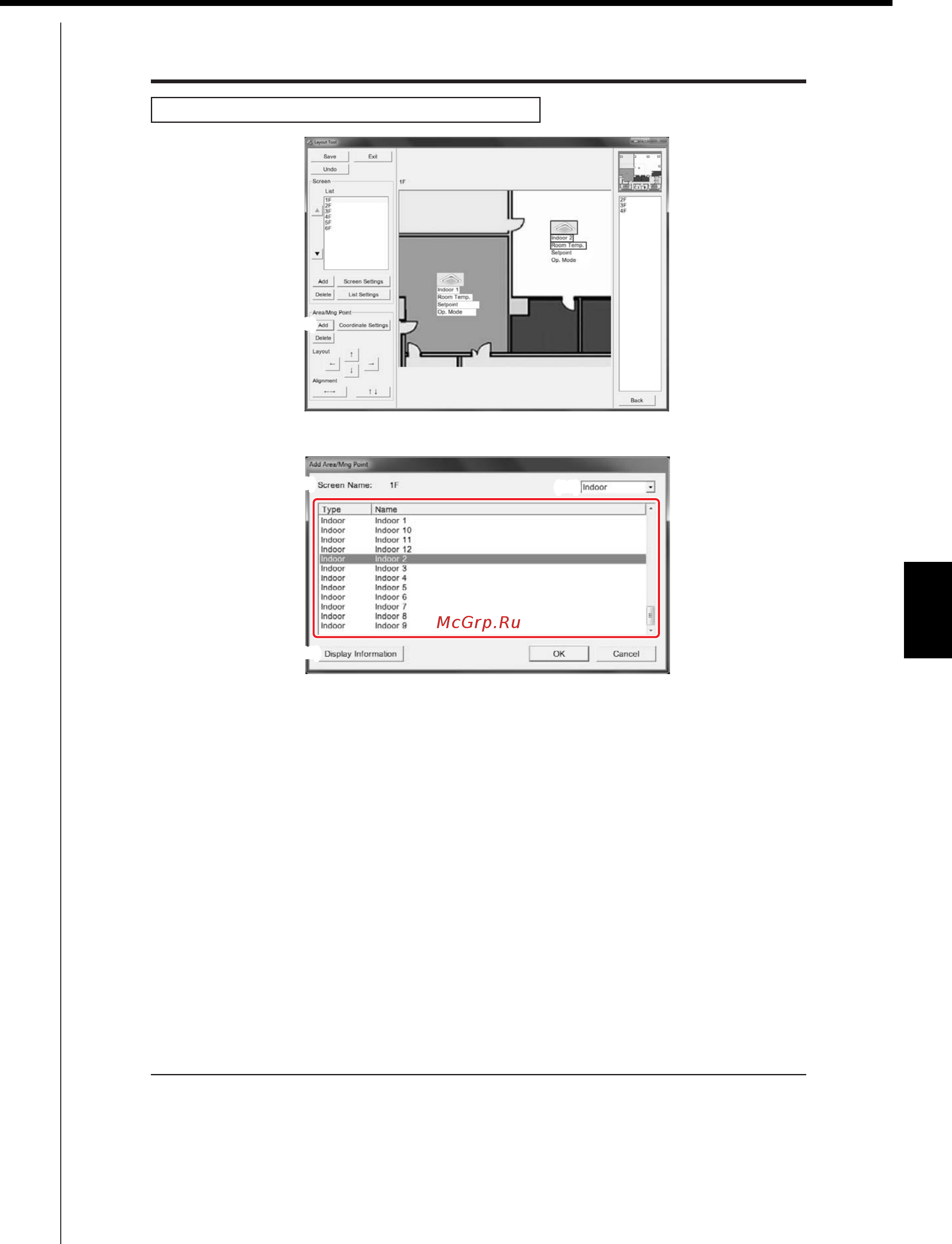

1. Click the Add button (18) to bring up the Add Area / Mng Point dialog box.

(21)

(19)

(20)

(22)

The name of the screen to add areas or management points is displayed in (19).

This dialog box does not display any of the automatically generated default areas.

From the Type combo box (20), choose one of the following types: All, Indoor, Ventilator, Analog,

Pulse, Outdoor, Area. Select areas and/or management points you want to add from the list (21),

which is now populated with a list of areas and management points available with your selected

type. You can add up to 20 items at the same time.

2.

Click the Display Information button (22) to bring up the Displayed Information Settings dialog

box, where you can set up the displayed information for your selected areas or management points.

The Displayed Information Setup dialog box has 8 tabs that correspond to the types of your

selected areas or management points.

Each tab provides a number of check boxes that control the display of various items. All of the

items checked on the tabs will be displayed on the layout screen.

By factory default, all the items are checked. So be sure to uncheck any items that you do not

want to have displayed.
