223
ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
18
9JGPƂPKUJGFYKVJCNNVJGVCDUVQWEJVJG1-DWVVQPVQUCXGVJGUGVVKPIUCPFTGVWTPVQVJGOCKP

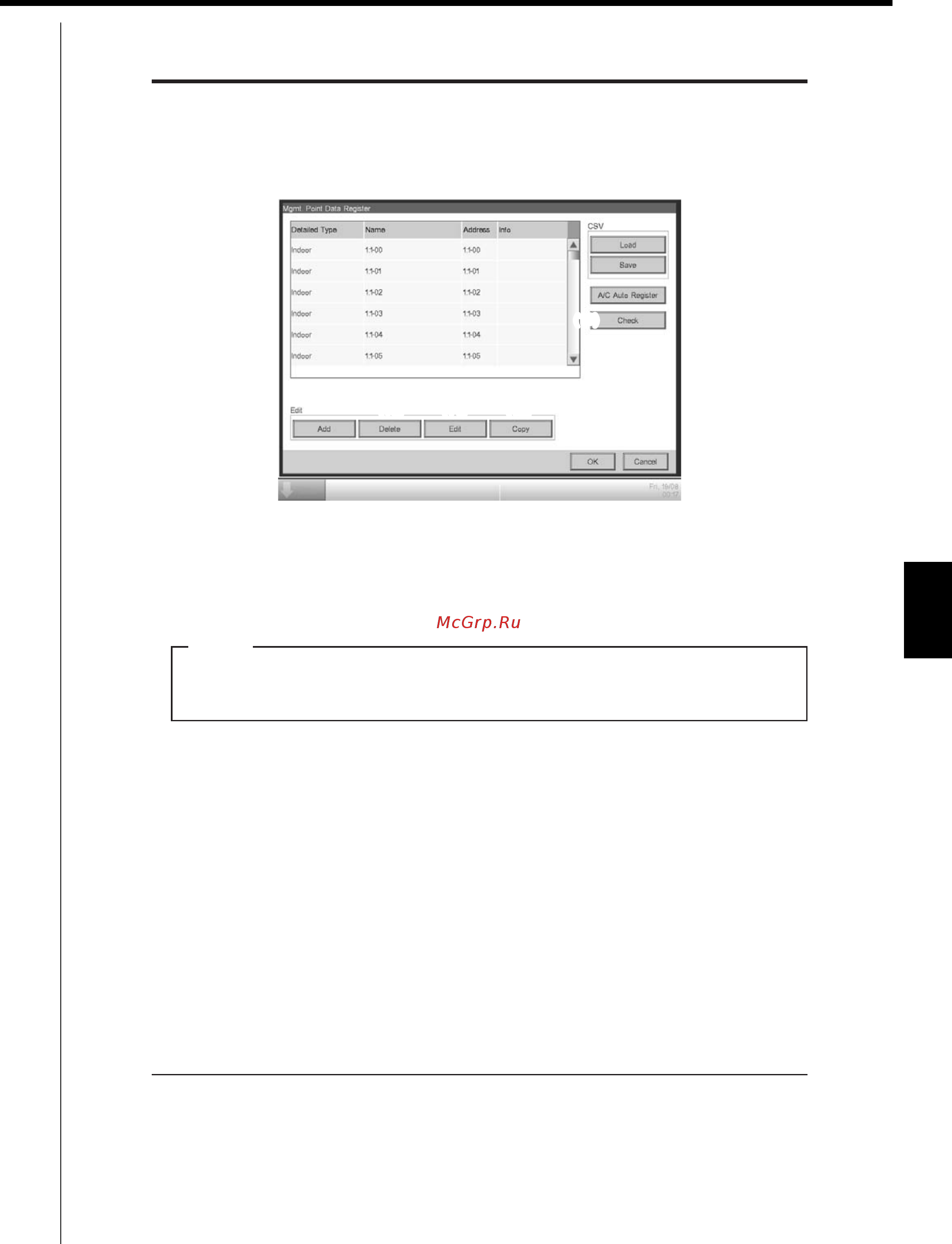

Mgmt. Point Data Register screen.
4. Deleting/Editing/Copying a management point
(13)
(10) (11) (12)
Touching the Delete button (10) deletes the management point selected in the list.
Touching the Edit button (11) displays the Mng. Point Attributes screen for editing the
management point selected in the list. (See procedures 1 to 3)
Touching the Copy button (12) makes a copy of the management point selected in the list.
Modify as necessary since the copy has exactly the same data. Registering as is will cause
duplicated address error and the like.
NOTE
