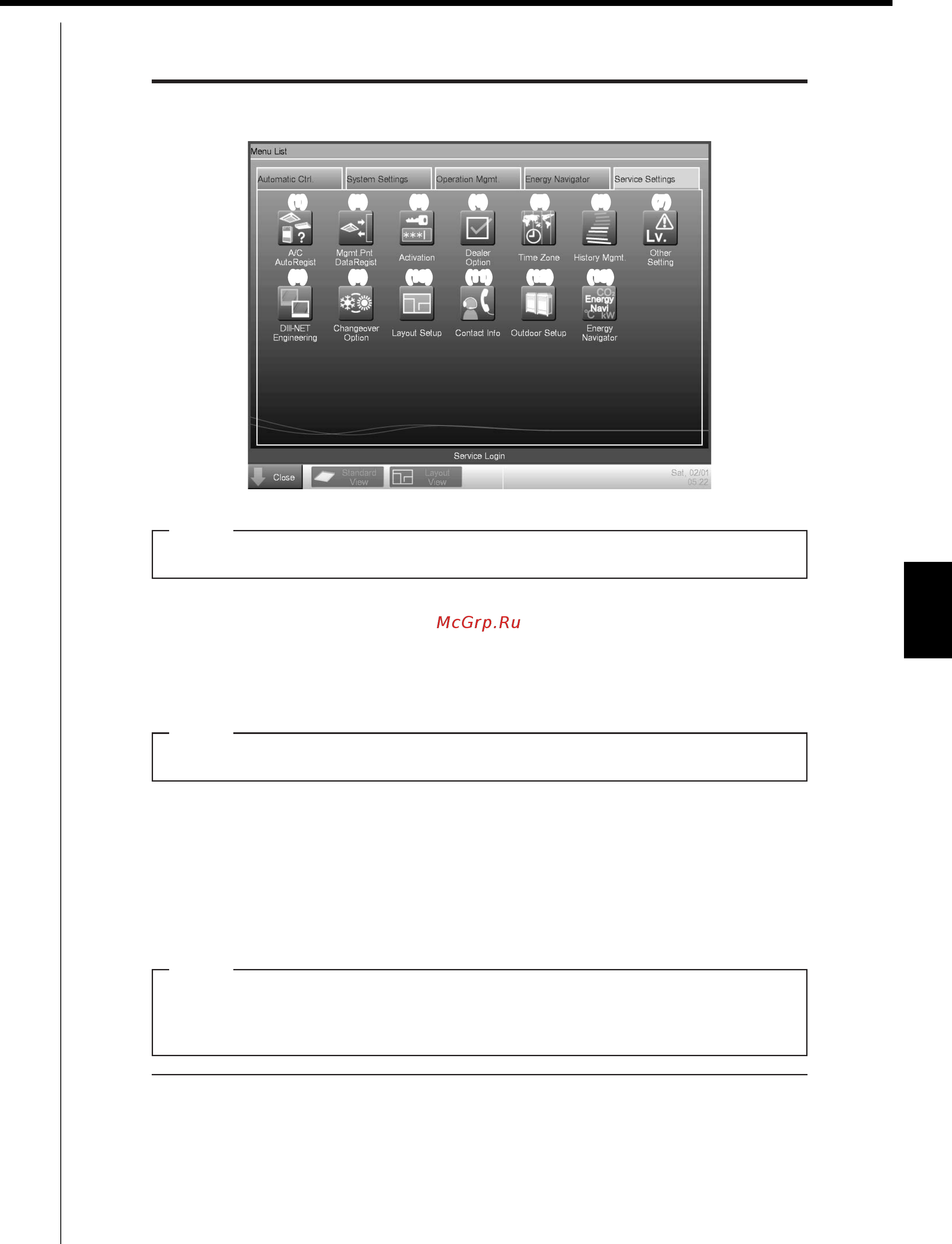

3-2 Service Settings Tab
(1) (2) (3) (4) (5) (6) (7)
(8) (9) (10) (11) (12) (13)
The button of an optional function is hidden unless the option is enabled.
NOTE
(1) A/C Auto Regist
Automatically registers as management points those air conditioners that are connected to the iTM
but not registered as management point. The air conditioner icons to be displayed on the Standard
View screen are also set up automatically.
Automatic registration is supported only for indoor units and Ventilator.
NOTE
(2) Mgmt. Point Data Regist
4GIKUVGTUOQFKƂGUCPFFGNGVGUOCPCIGOGPVRQKPVUVQDGQRGTCVGFEQPVTQNNGFWUKPIVJGK6/6JG
OCPCIGOGPVRQKPVFCVCECPCNUQDGKPRWVHTQOQWVRWVVQCƂNGKP%58HQTOCV
(3) Activation
Enables optional maker functions based on entered Activation keys.
Optional maker functions refer to the Power Proportional Distribution and Energy Navigator
functions.
NOTE
