76 1.4 Interface Adaptor for SkyAir <DTA112BA51>
Adaptor ED721208

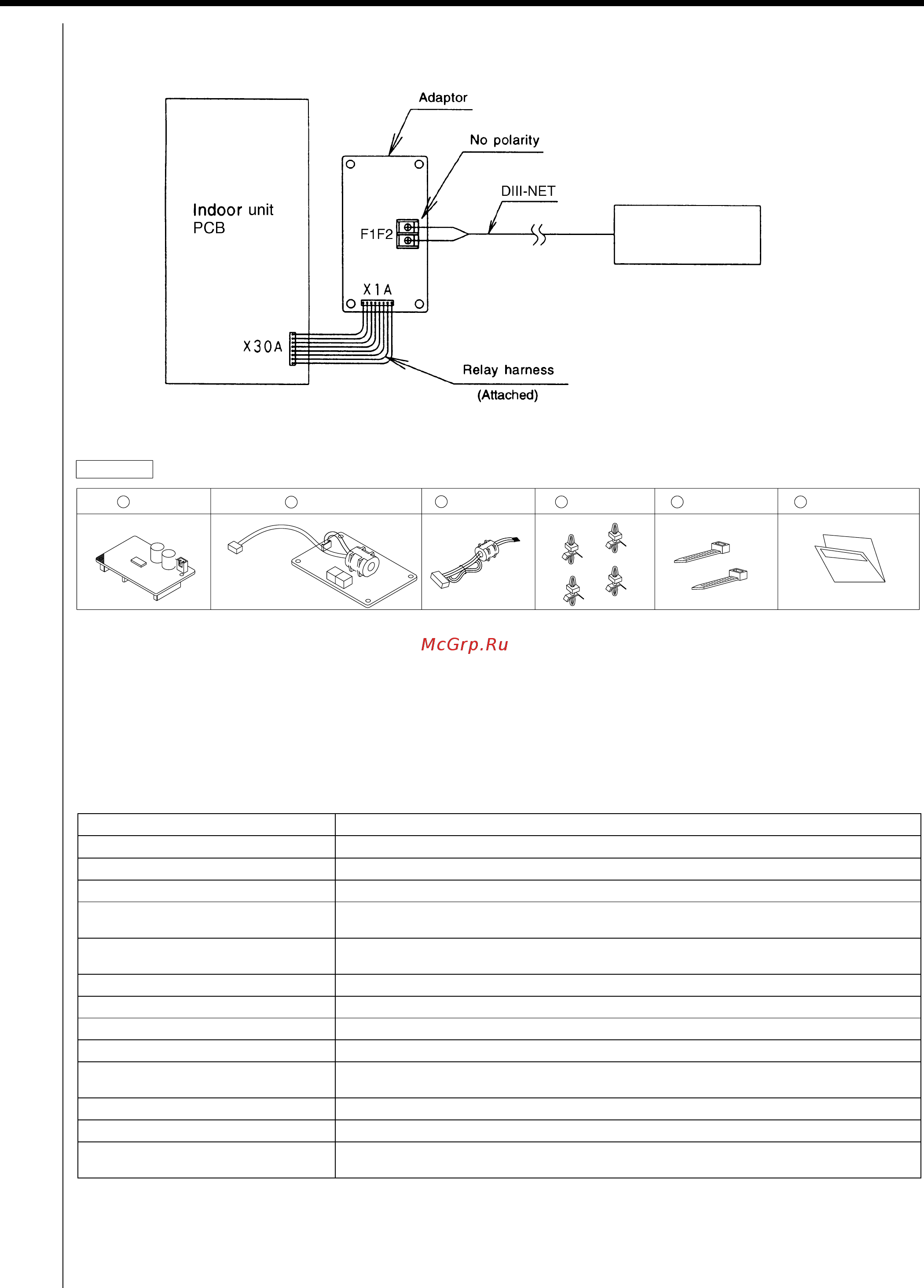

1.3.4 Electric Wiring Work
Wire this kit as described below.
Make sure wires to units do not pass over the PCB when wiring.
C : 1PA59896
1.4 Interface Adaptor for SkyAir <DTA112BA51>
1.4.1 Function
This interface adaptor is necessary when connecting to SkyAir indoor unit to Centralized Control Equipment
(Central Remote Controller, Unified ON/OFF Controller, Schedule Timer etc.).
By connecting Centralized Control Equipment, unified operation (ON/OFF), timer operation, remote controller
rejection/acceptance setting and operation/error monitor etc. are possible.
This adaptor enables the following operation and monitor function from Centralized Control Equipment.
Note: ∗1. It is limited when connecting Interface for BACnet
®
and BMS
Applicable SkyAir indoor unit
FFQ-B, FHQ-BV, FAQ-BV, FBQ-B
Note: FCQ(N)-K and FBQ-D are equipped standardly with the interface adaptor and this option is unnecessary.
Function
1. ON/OFF setting Setting Operation/Stop of the indoor unit
2. Operation/Error monitor Monitoring Operation (ON/OFF) status and error status
3. Mode setting Selecting mode such as cooling, fan only, etc.
4. Temperature setting
Enabling to set the temperature in the all set temperature range of SkyAir (Cooling:16-32°C,
Heating:16-32°C)
5. Remote controller rejection/
acceptance setting
Restricting operation of the remote controller for ON/OFF setting, Mode setting and
temperature setting (the last command priority, remote controller rejection, etc.)
6. Test operation Operating forced thermostat ON
7. Display of error code and reset
8. Group control Controlling the maximum 16 of indoor units simultaneously
9. Indoor temperature monitor Monitoring the indoor temperature when connecting Parallel Interface
10. Forced thermostat Off
Operating forced thermostat OFF when Centralized Control Equipment has the forced
thermostat OFF function
11. Filter sign display and reset
12. Air flow direction and volume setting Setting the air flow direction and volume by individual mode of Central Remote Controller
13. Other monitor
Monitoring the thermostat status, the compressor operation status and indoor unit fan
operation status (∗1)
Centralized control
equipment
Accessories
Note: Before opening control box lid, besure cut off the all air conditioner power of indoor unit and outdoor unit,
or you may get an electric shock..
Check if the following accessories are included in the kit.
1
Adaptor
×1
(for models
other than FFQ)
2
Relay PCB
×1
(for FFQ model)
3
Relay harness
×1
4
PCB support
×4
5
Clamp material
×2
6
Installation manual
×1
