6-2 Web Remote Management

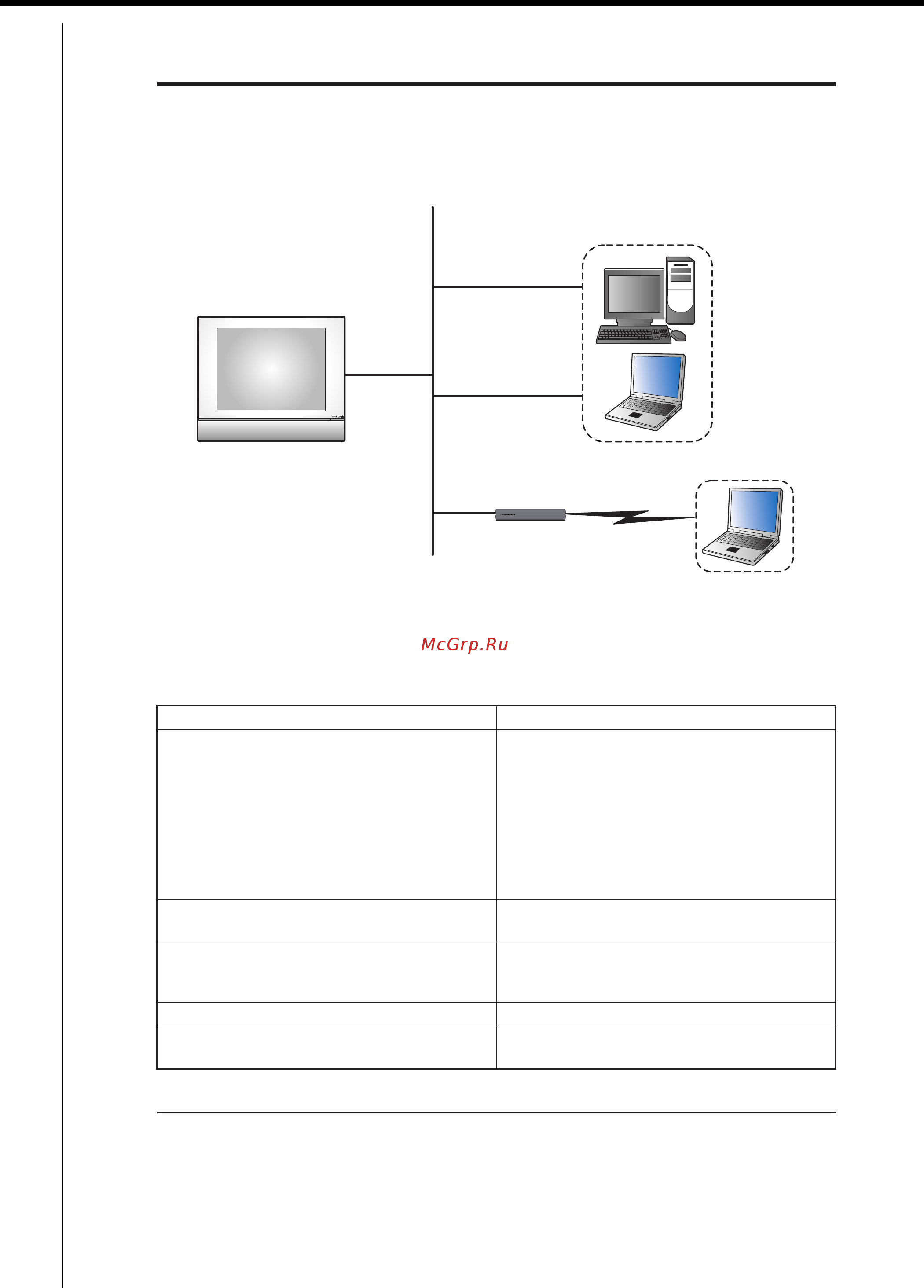

The iTM can be remotely operated via the Internet or local network.
Ethernet
(100Base-T or higher)
PC (Web browser)
PC (Web browser)
Internet
iTM
Firewall
For settings necessary on the iTM unit, see “6-1 Network”. This chapter describes the PC setup
procedure.
To use the Web Remote Management functions, you need to separately prepare a PC and software
such as a Web browser. The requirements for the PC are as indicated in the table below.
Function Requirement
PC for Web Remote Management OS: Windows XP Professional SP3 (32 bit)
Windows VISTA Business SP2 (32 bit)
Windows 7 Professional SP1 (32bit, 64bit)
CPU: Equivalent to Intel Core 2 Duo 1.2 GHz or
higher
Memory: 2 GB or more
Free HDD space: 10 GB or more
Network: 100Base-TX or higher
Display resolution: 1024 x 768 or higher
Network 100Base-TX
Real transfer rate: 115 kbps or higher
Supported security software McAfee 2011
Norton 2011
Virus Buster 2011
Flash Player Version 11.1
Web browser Internet Explorer 8, 9
Firefox 10.0
