90 1.7 Adaptor for Wiring <KRP1B61 / KRP1BA54, B56, BA57, BA59 / KRP1C63, C64>
Adaptor ED721208
KRP1BA54, B56, BA57, BA59
z Installation differs according to models as shown below.
Do not bundle low and high voltage wires together.
z Bundle any excess wires with the attached be wraps so as to keep loose wirings off the indoor unit PCB.
Ceiling-mounted cassette type Ceiling-mounted cassette type
Ceiling-mounted Duct type
Ceiling-suspended type
Accessories
NOTE
Check if the following accessories are included in the kit.
PCB support
Clamp
Installation manual
× 4
× 3
× 1
Adaptor
× 1
•
Kits vary according to applicable models.
•

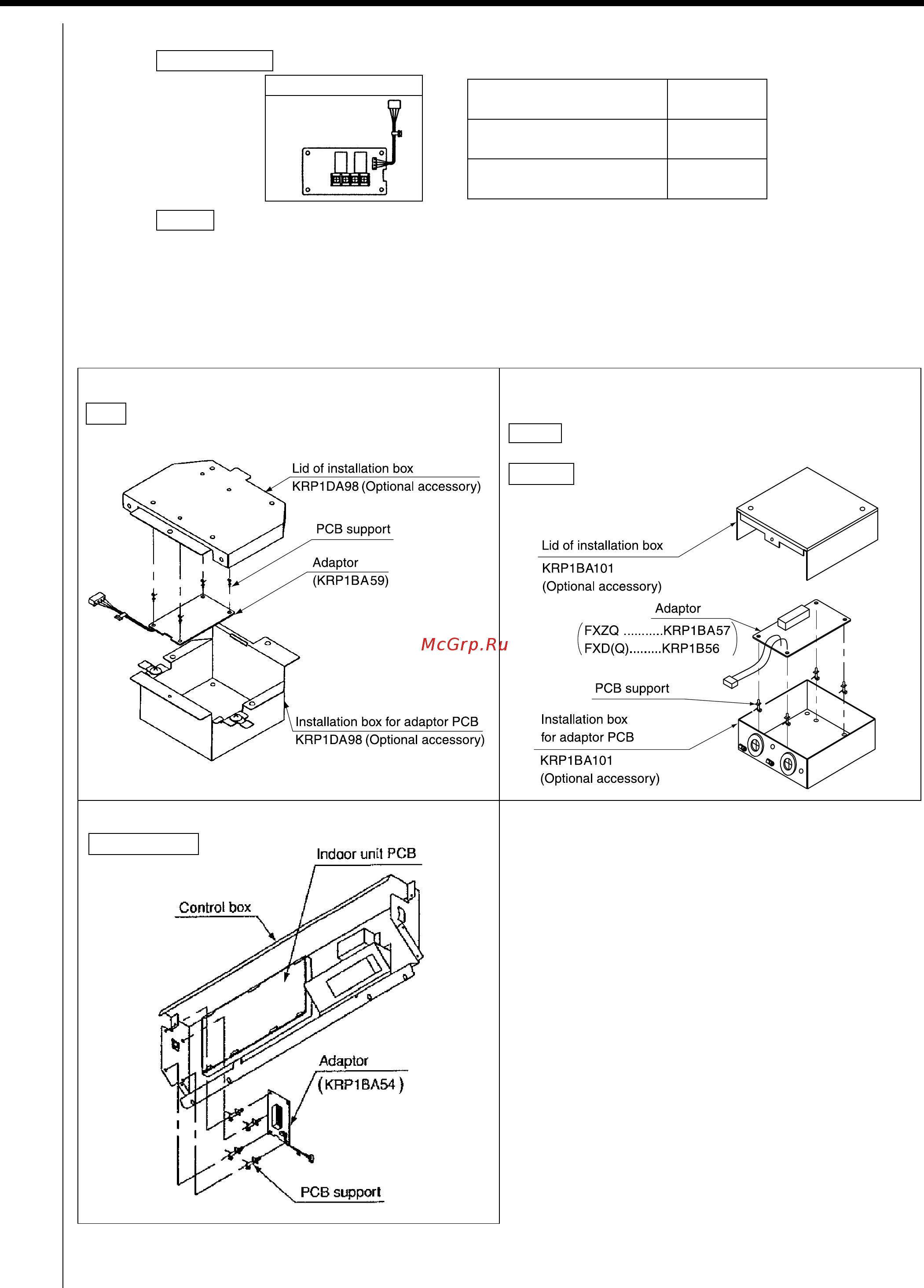

A special adaptor fixing plate and box are required for the following models.
...............................................................................
..................................................................
FXF–L
FXZQ, FXD(Q)
KRP1DA98
KRP1BA101
Note: Installation box for adaptor PCB is
required to install the adaptor.
FXF
(Multi-flow type)
FXZQ
(Compact Multi-flow type)
FXD(Q)
(Ceiling-mounted Duct type)
Note: Installation box for adaptor PCB
is required to install the adaptor.
FHQ · FXH(Q)
