296
Commissioning Manual ED721208
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
106

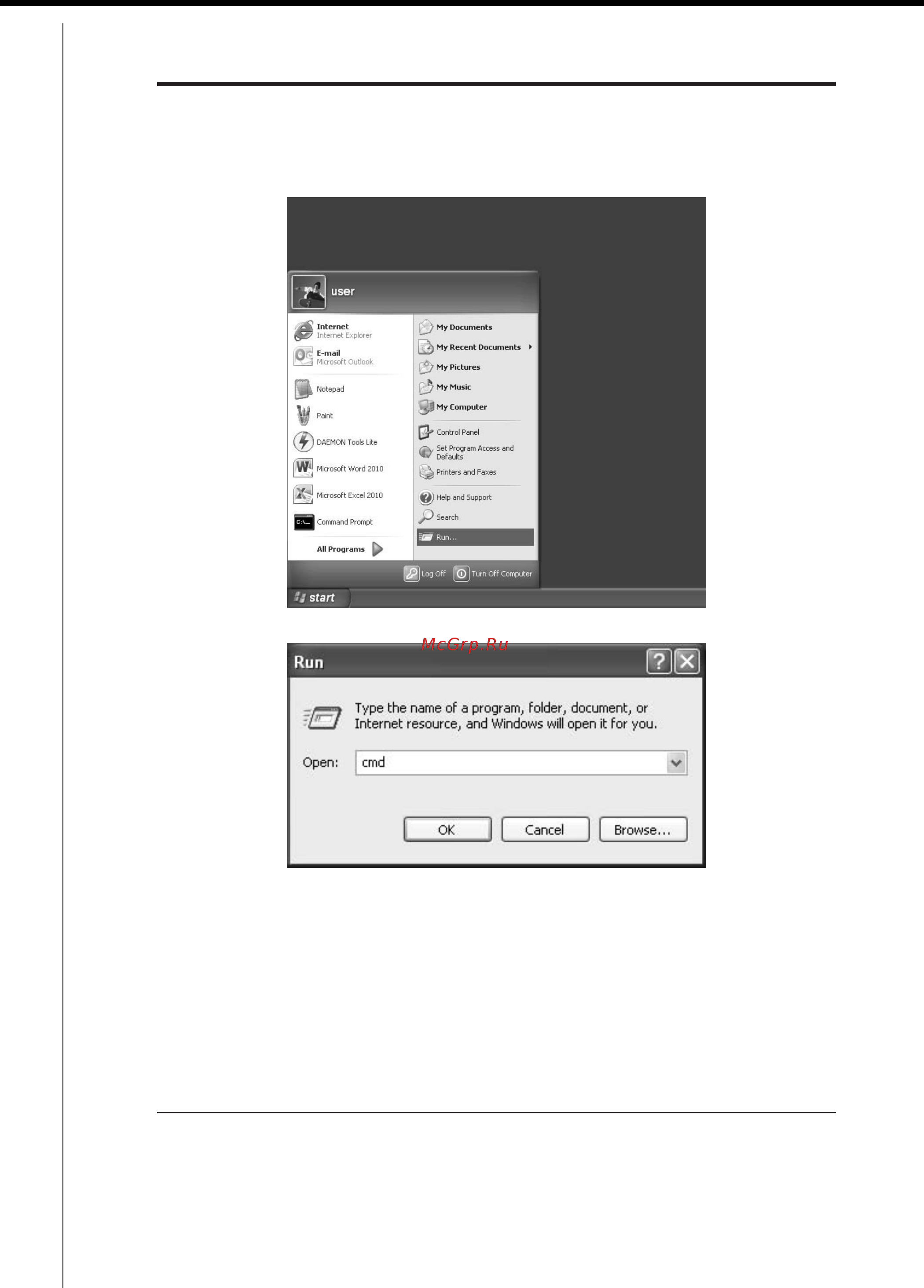

1. From the Start menu of the PC, select “All Programs”
ĺ
“Accessories”
ĺ
“Command Prompt”.
Alternatively, select “Run” from the Start menu of the PC, enter “cmd” in Open and click the OK
button. (Windows XP)
