234
Commissioning Manual ED721208
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
29

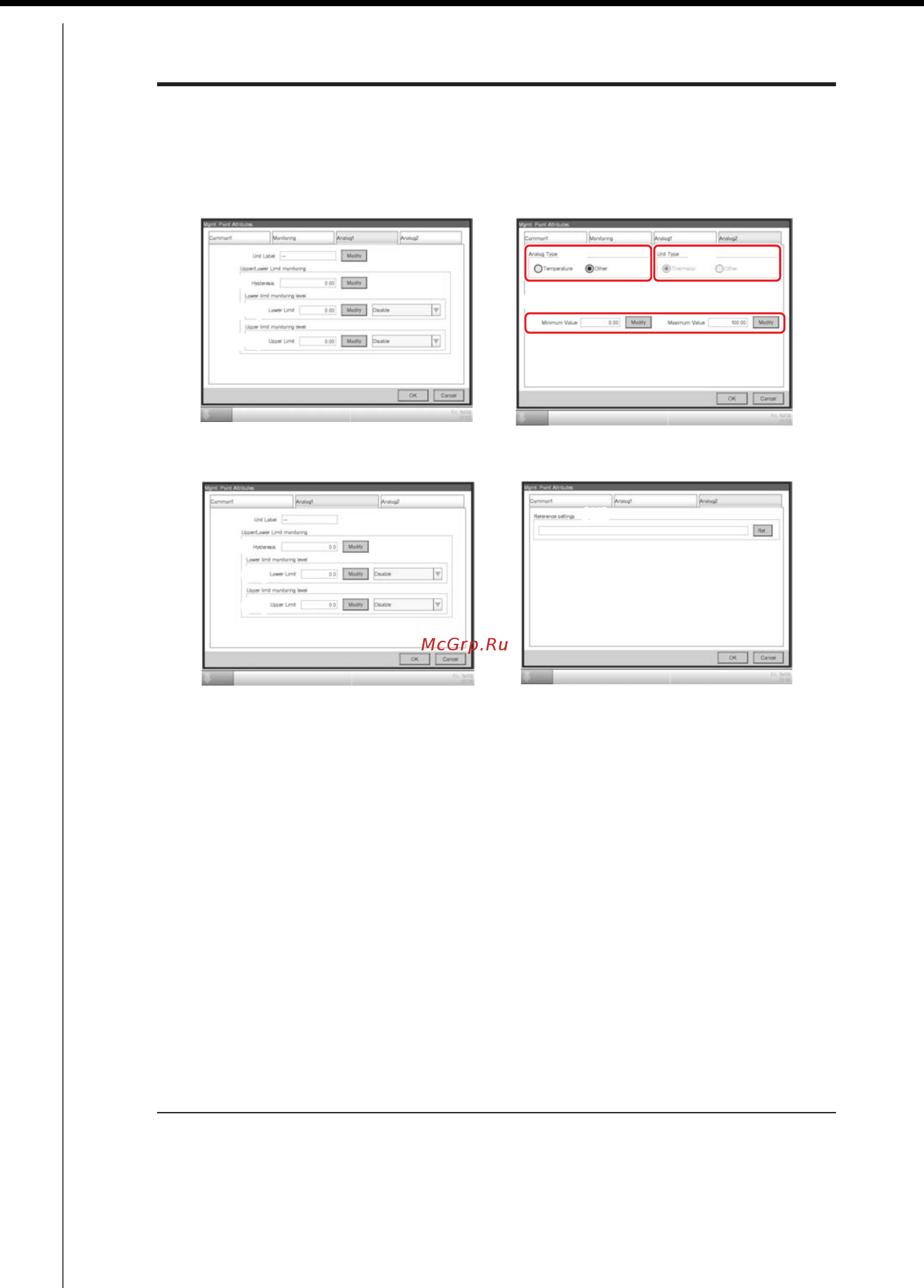

r Analog Tab
Sets up the analog value.
Displayed items vary depending on the management point type.
<External Ai>
Analog 1 Analog 2
Analog 1 Analog 2
<External Ai>
<Internal Ai>
<Internal Ai>
(41)
(42)
(43)
(44)
(47)
(45) (46)
(48)
(41)
(42)
(43)
(44)
For the range of values that can be input for each type in the Numerical Input dialog see the table on page 31
.
(41) Unit Label VGZVƂGNF
Sets up the unit.
Touch the Modify button and enter the value in the Text Input dialog that appears.
The number of characters you can enter is 0 to 8, irrespective of single or double byte.
(42) Hysteresis VGZVƂGNF
Sets up the hysteresis.
Touch the Modify button and enter the value in the Numerical Input dialog that appears.
(43) Lower Limit ƂGNF
Sets up the lower limit and monitoring status for lower limit error monitoring.
For the lower limit, touch the Modify button and enter it in the Numerical Input dialog that
appears.
For the monitoring status, select from Disable, Monitoring, and Monitor + History from the combo box.
