110 2.1 Wiring Adaptor for Other Air Conditioners <DTA103A51>
Adaptor ED721208
<Monitor Input>

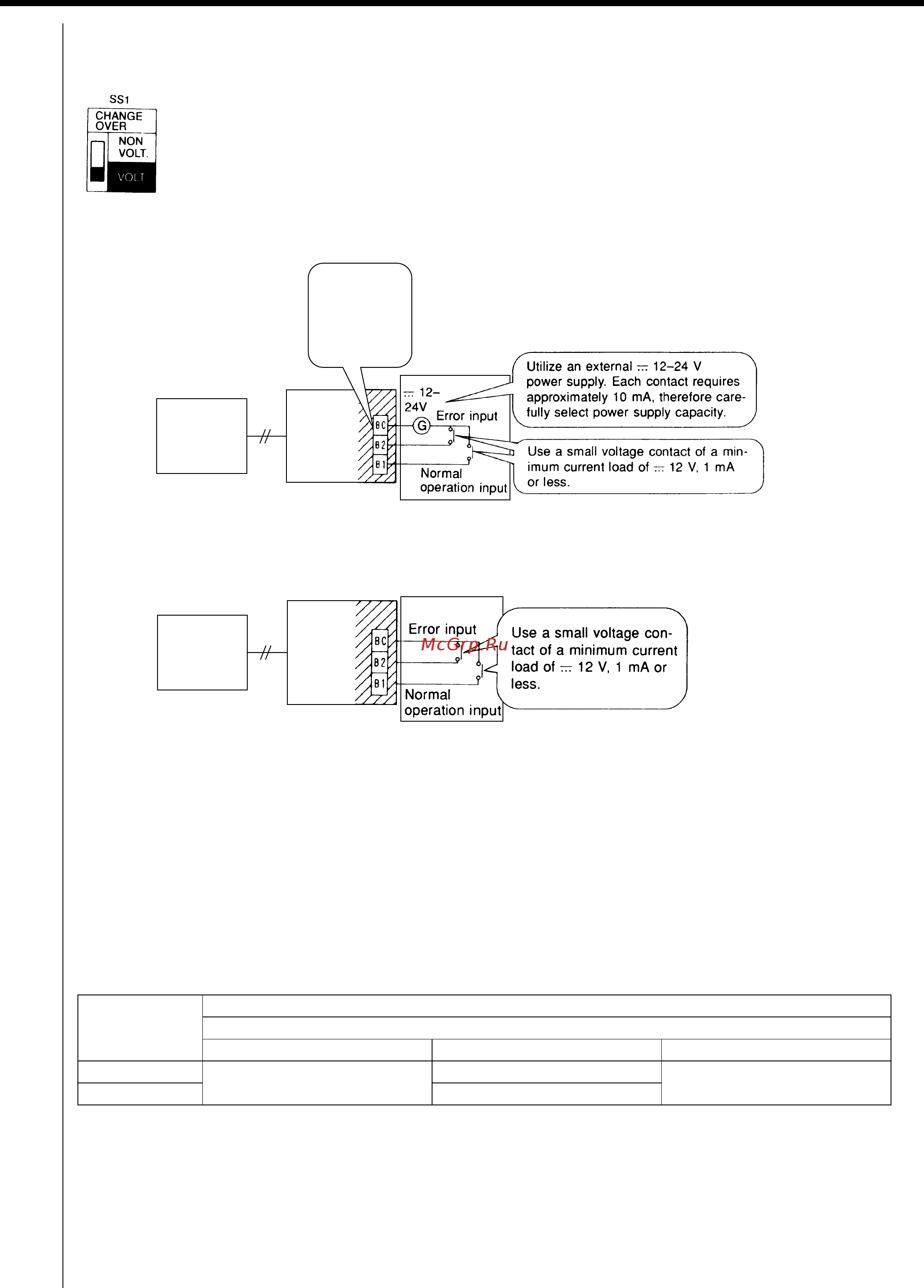

Wire as explained here following, depending on whether input carries a voltage (VOLT.) or not (NON VOLT.). Make the
VOLT/NON VOLT. setting at the monitor input changeover switch (SS1).
(For Voltage Charged Input)
Set the monitor input changeover switch to VOLT. (Factory setting: VOLT.)
(For Non Voltage Input)
Set the monitor input changeover switch to NON VOLT. (Factory setting: VOLT.)
Switch the malfunction signal switch (SS3) according to needs (Factory setting: W/O [OFF]). Set the switch to W (ON)
to display errors even if no operation feedback from the indoor unit is available, for example, when power to the indoor
unit is OFF. Together, set the individual switch (SS2) to OFF (ON).
Note:
This switch is ineffective when SS2 is set to ON (OFF).
The centralized control equipment display will change, as shown on the right, depending on the monitor input state
and the malfunction signal switch (SS3) setting.
After switching the centralized control equipment from stop to operation, it will take from 10 to 30 seconds before the
centralized control equipment display will indicate an error.
C: 2PA53853
(SS3) Malfunction
Signal
Centralized Control Equipment Display at Command Output
Monitor Input State
Operation Input ON Operation Input OFF Error Input ON
W
Operation Display
Error (A1 Display)
Error (A1 Display)
W/O Operation Display
Connect
control input to
the common
contact
(nonpolarized).
Equipment
F1, F2
Centralized
control
equipment
Equipment
F1, F2
Centralized
control
equipment
