74 1.3 Interface Adaptor for SkyAir Series <DTA102A52>
Adaptor ED721208

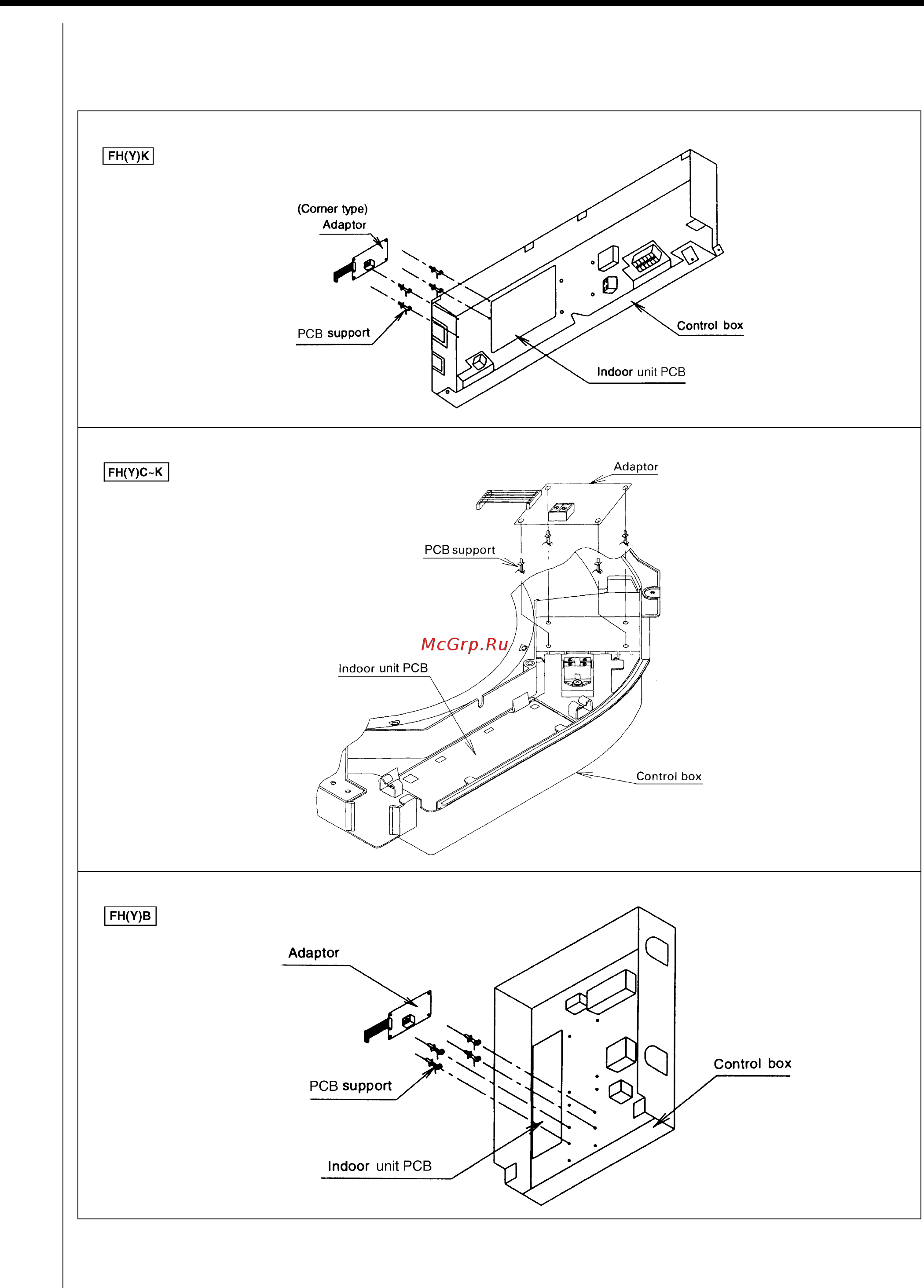

2. Installation
Installation differs according to models as shown below.
Do not bundle low and high voltage wires together.
Bundle any excess wires with the attached clamps so as to keep loose wirings off the indoor unit PC board.
C : 1PA59896
Ceiling Mounted Cassette Corner Type
Ceiling Mounted Cassette Type (Multi-Flow)
Ceiling Mounted Built-in Type
