IGNITION SIGNAL PFP:22448
Component Description
BBS004JF

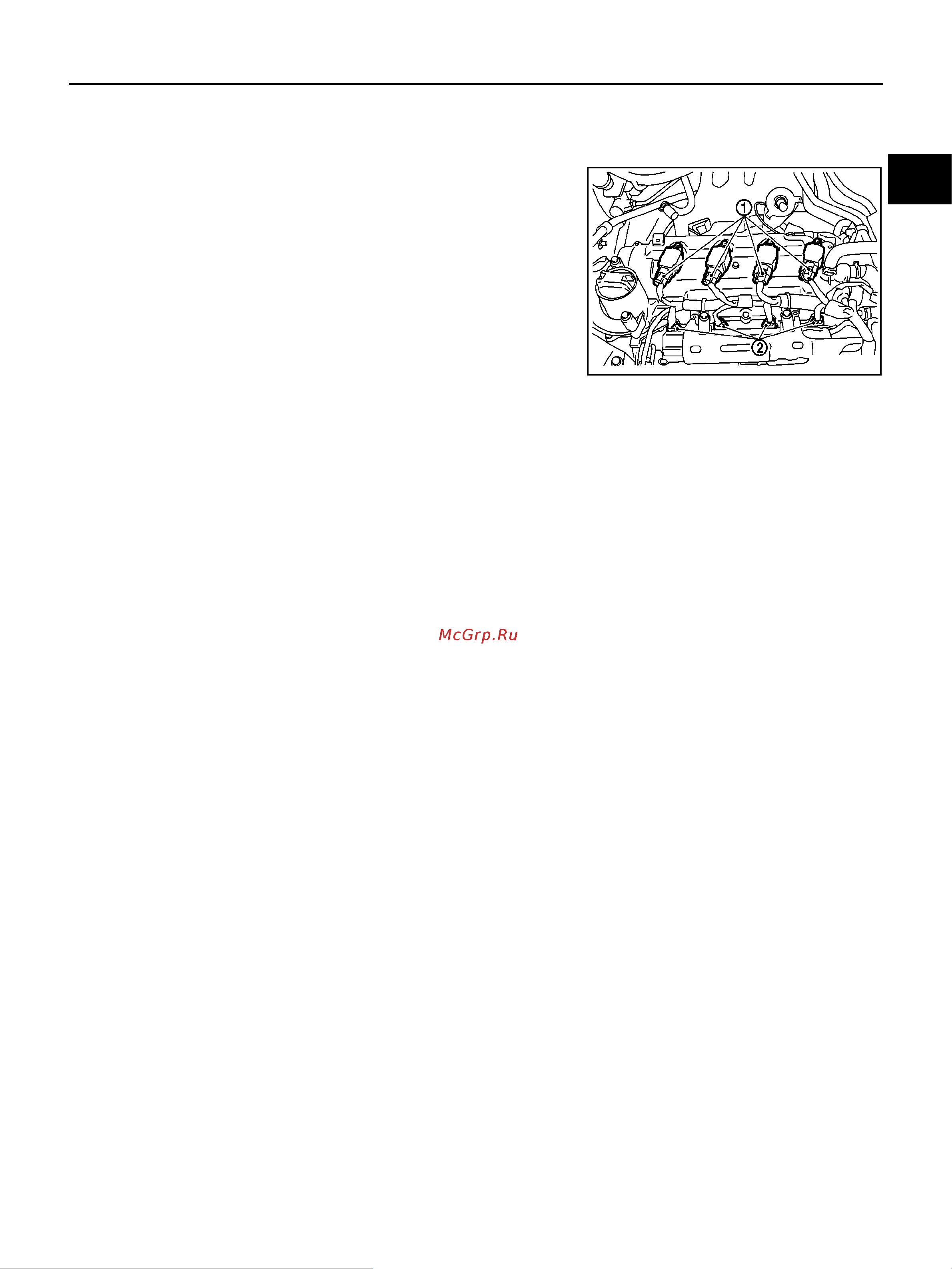

IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns ON and OFF the ignition
coil (1) primary circuit. This ON/OFF operation induces the proper
high voltage in the coil secondary circuit.
Fuel injector (2)
PBIB2968E
