DTC P0011 IVT CONTROL PFP:23796
Description
BBS004LQ

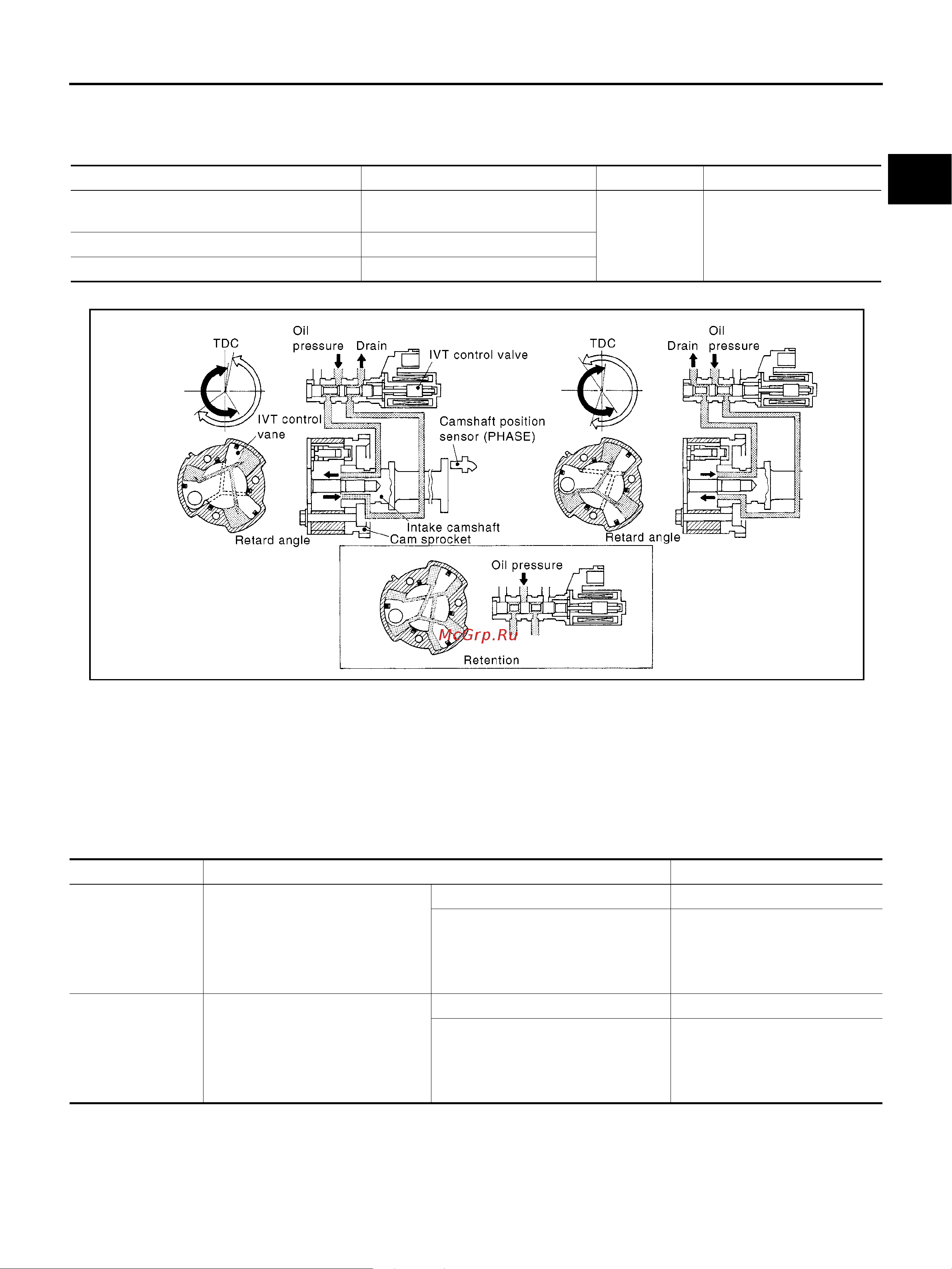

SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-II Reference Value in Data Monitor Mode
BBS004LR
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Engine speed and piston position
Intake valve
timing control
Intake valve timing control
solenoid valveEngine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed*
MBIB1560E
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
Engine: After warming up
Air conditioner switch: OFF
Shift lever: P or N (A/T), Neutral
(M/T)
No load
Idle 5° -5°CA
2,500 rpm Approx. 0° -40°CA
INT/V SOL (B1)
Engine: After warming up
Air conditioner switch: OFF
Shift lever: P or N (A/T), Neutral
(M/T)
No load
Idle 0% - 2%
2,500 rpm Approx. 0% - 90%
