DTC P0235 TC BOOST SENSOR
EC-1765
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EC

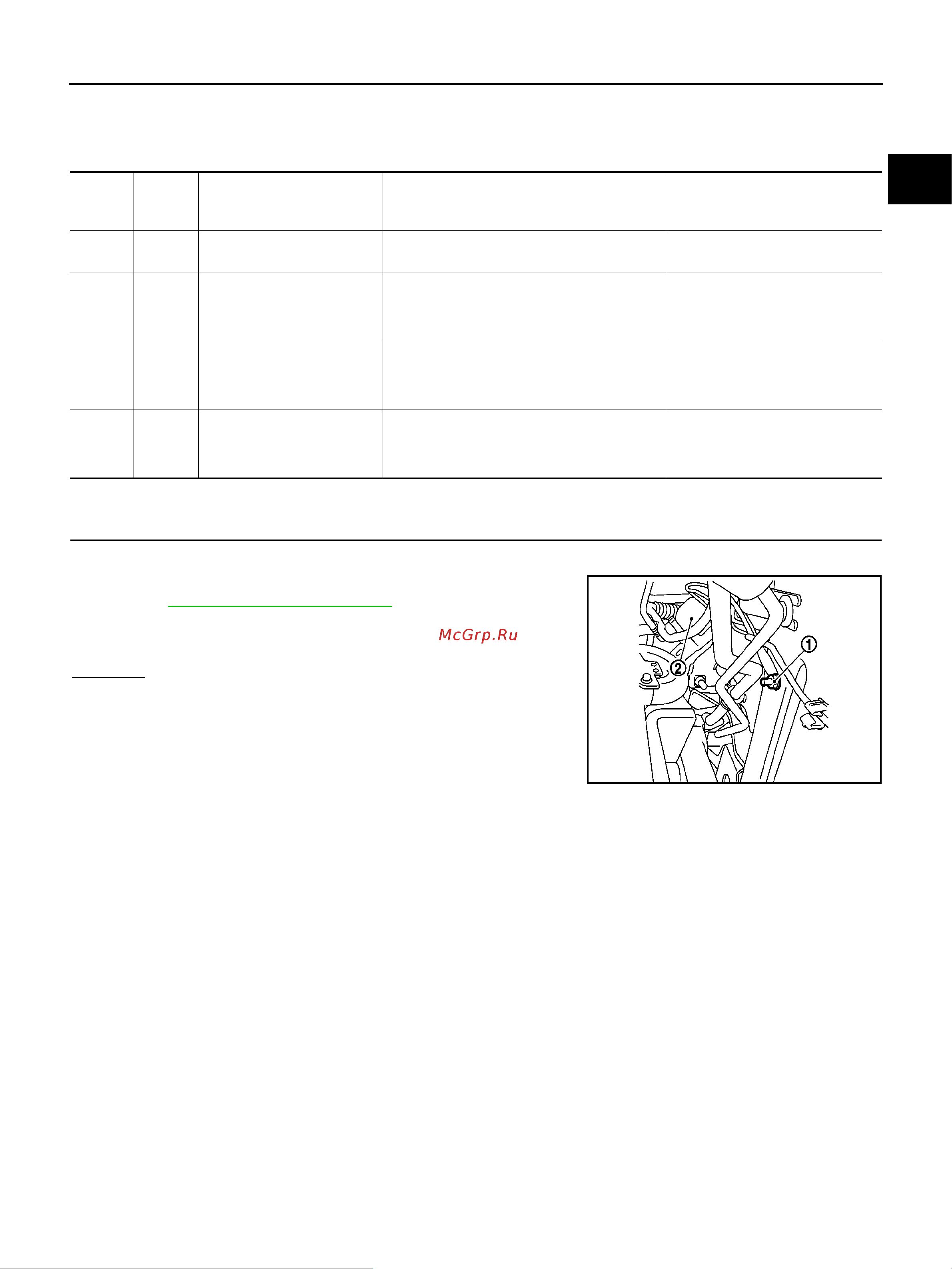

Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS0044B
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body.
Refer to EC-1703, "
Ground Inspection" .
Body ground (1)
Priming pump (2)
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION
DATA
(DC Voltage)
48 V
Sensor power supply
(Turbocharger boost sensor)
[Ignition switch ON] Approximately 5.0V
58 O Turbocharger boost sensor
[Engine is running]
Warm-up condition
Idle speed
Approximately 1.6V
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm
Approximately 2.0V
68 G
Sensor ground
(Turbocharger boost sensor)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0.3V
MBIB1520E
