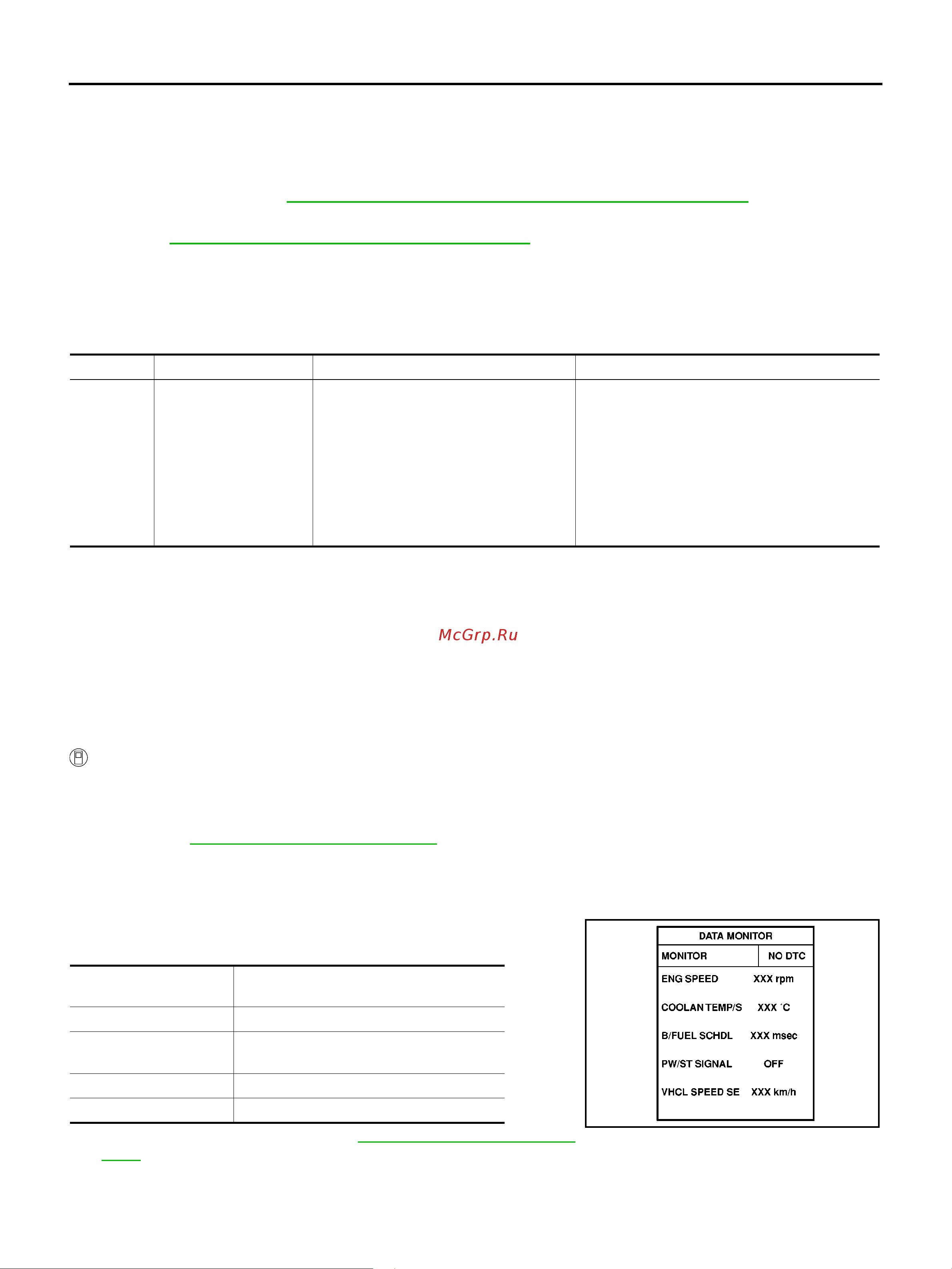

EC-1070
[HR (WITH EURO-OBD)]
DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Description
BBS004EL
NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-925, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P0500 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-928, "
DTC U1010 CAN COMMUNICATION" .
The vehicle speed signal is sent to the combination meter from “ABS actuator and electric unit (control unit)”
through CAN communication line. The combination meter then sends a signal to the ECM through CAN com-
munication line.
On Board Diagnosis Logic
BBS004EM
DTC Confirmation Procedure
BBS004EN
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-II. The vehicle speed on CONSULT-
II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-1071, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-1071, "
Diagnostic Proce-
dure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500
Vehicle speed sensor
The almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM
even when vehicle is being driven.
Harness or connectors
(The CAN communication line is open or
shorted.)
Harness or connectors
(Wheel sensor circuit is open or shorted)
ABS actuator and electric unit (control unit)
Wheel sensor
Combination meter
ENG SPEED A/T: More than 1,900 rpm
M/T: More than 2,500 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL
A/T: 4.8 - 31.8 msec
M/T: 3.8 - 31.8 msec
Shift lever Suitable position
PW/ST SIGNAL OFF
SEF196Y
