HO2S2 HEATER
EC-1571
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC

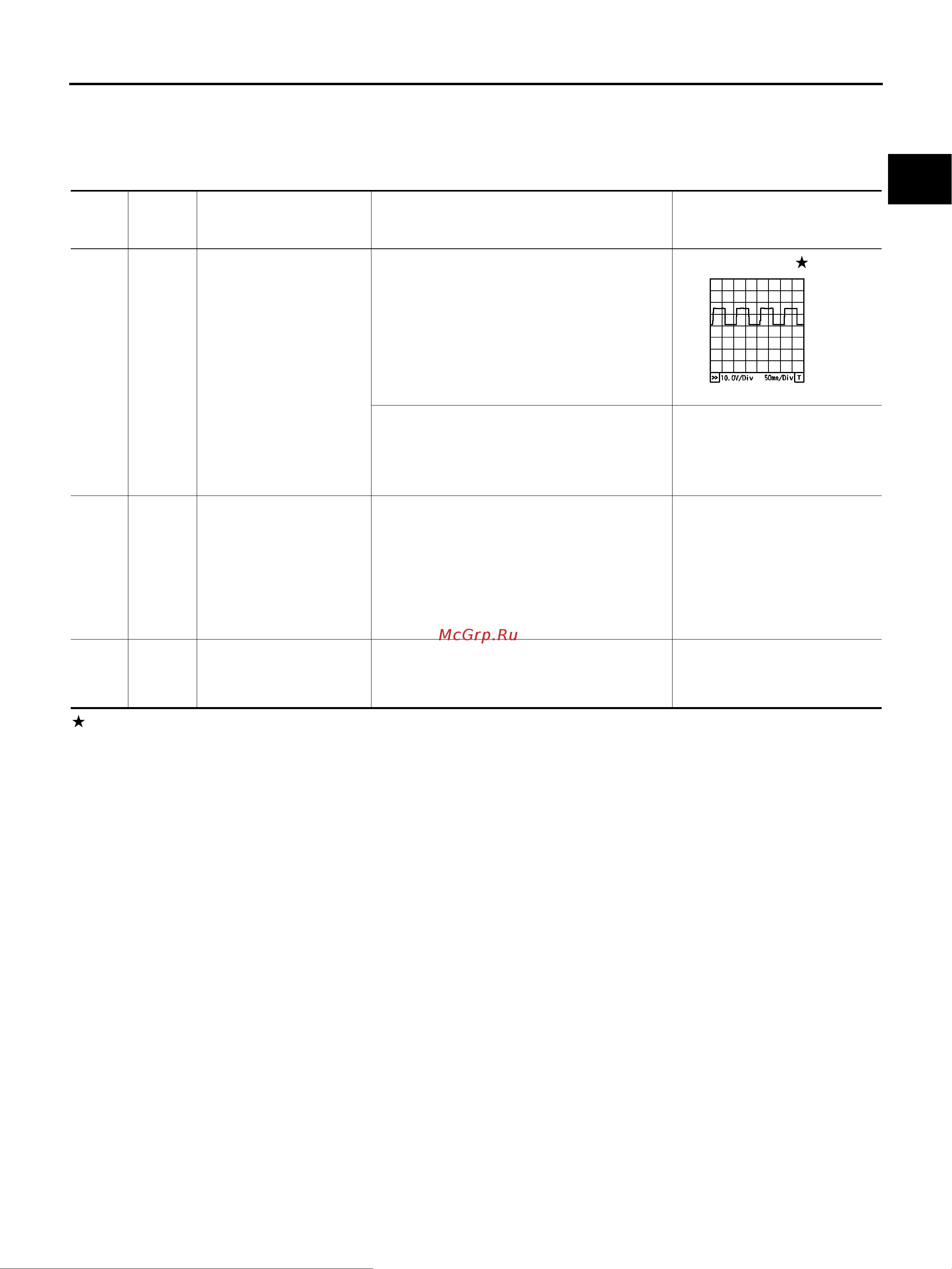

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
TER-
MINAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
5GR
Heated oxygen sensor 2
heater
[Engine is running]
Engine speed: Below 3,600 rpm after the fol-
lowing conditions are met.
Engine: After warming up
Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
Approximately 10V
[Ignition switch: ON]
Engine stopped
[Engine is running]
Engine speed: Above 3,600 rpm.
BATTERY VOLTAGE
(11 - 14V)
50 B Heated oxygen sensor 2
[Engine is running]
Revving engine from idle to 3,000 rpm quickly
after the following conditions are met.
Engine: After warming up
Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - Approximately 1.0V
59 LG
Sensor ground
(Heated oxygen sensor 2)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
PBIA8148J
