DTC P1706 PNP SWITCH
EC-1483
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS004Q8

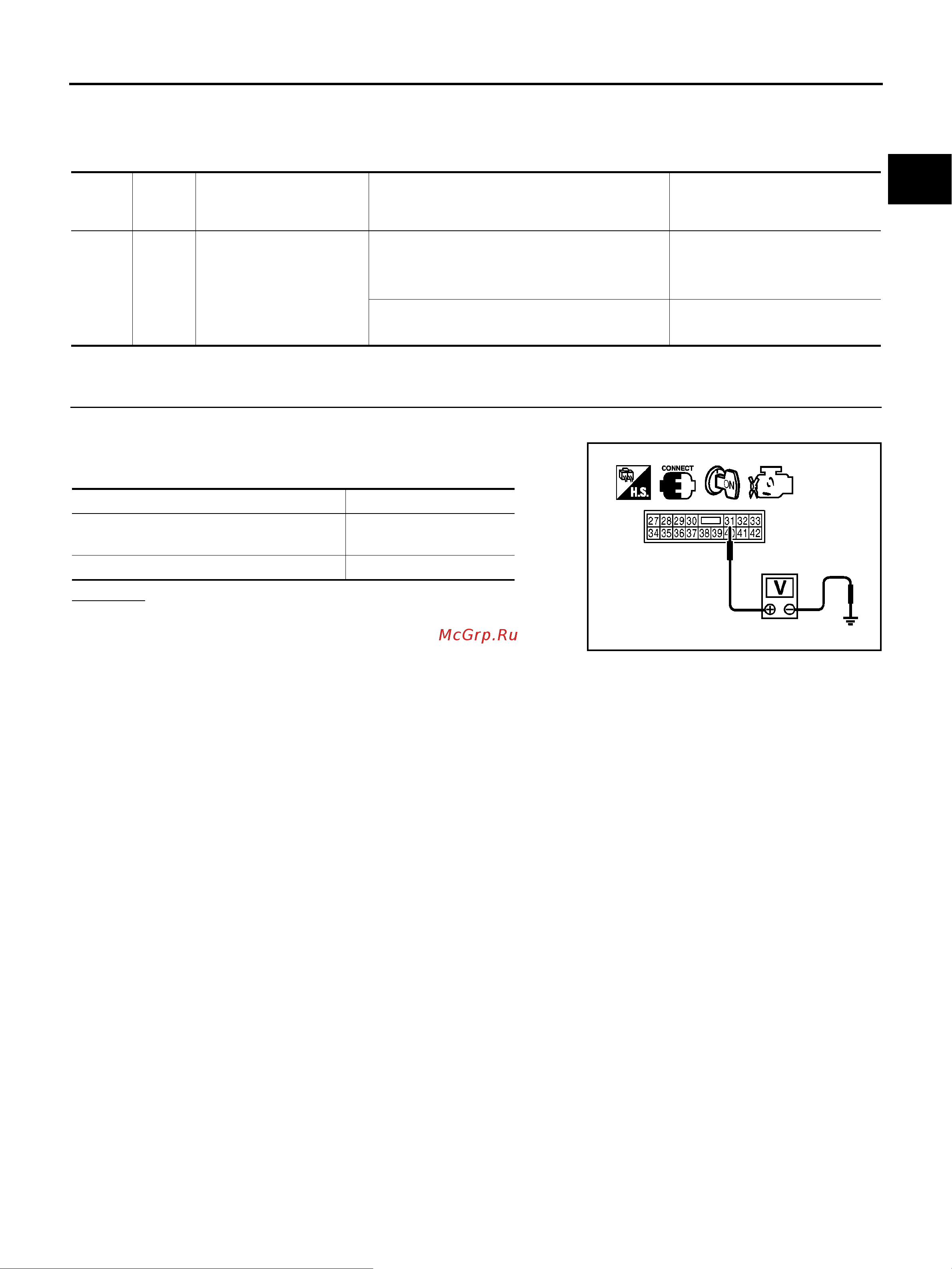

1. CHECK PNP SWITCH CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between IPDM E/R terminal 31 and ground under
following condition.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
70 GR
Park/Neutral position
(PNP) switch
[Ignition switch: ON]
Shift lever: P or N (A/T models)
Shift lever: Neutral (M/T models)
Approximately 0V
[Ignition switch: ON]
Except above position
BATTERY VOLTAGE
(11 - 14V)
Shift lever position Voltage
P or N (A/T models)
Neutral (M/T models)
Battery voltage (11- 14V)
Except above position Approximately 0V
MBIB0652E
