DTC P0685 ECM RELAY
EC-1847
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS0046Y

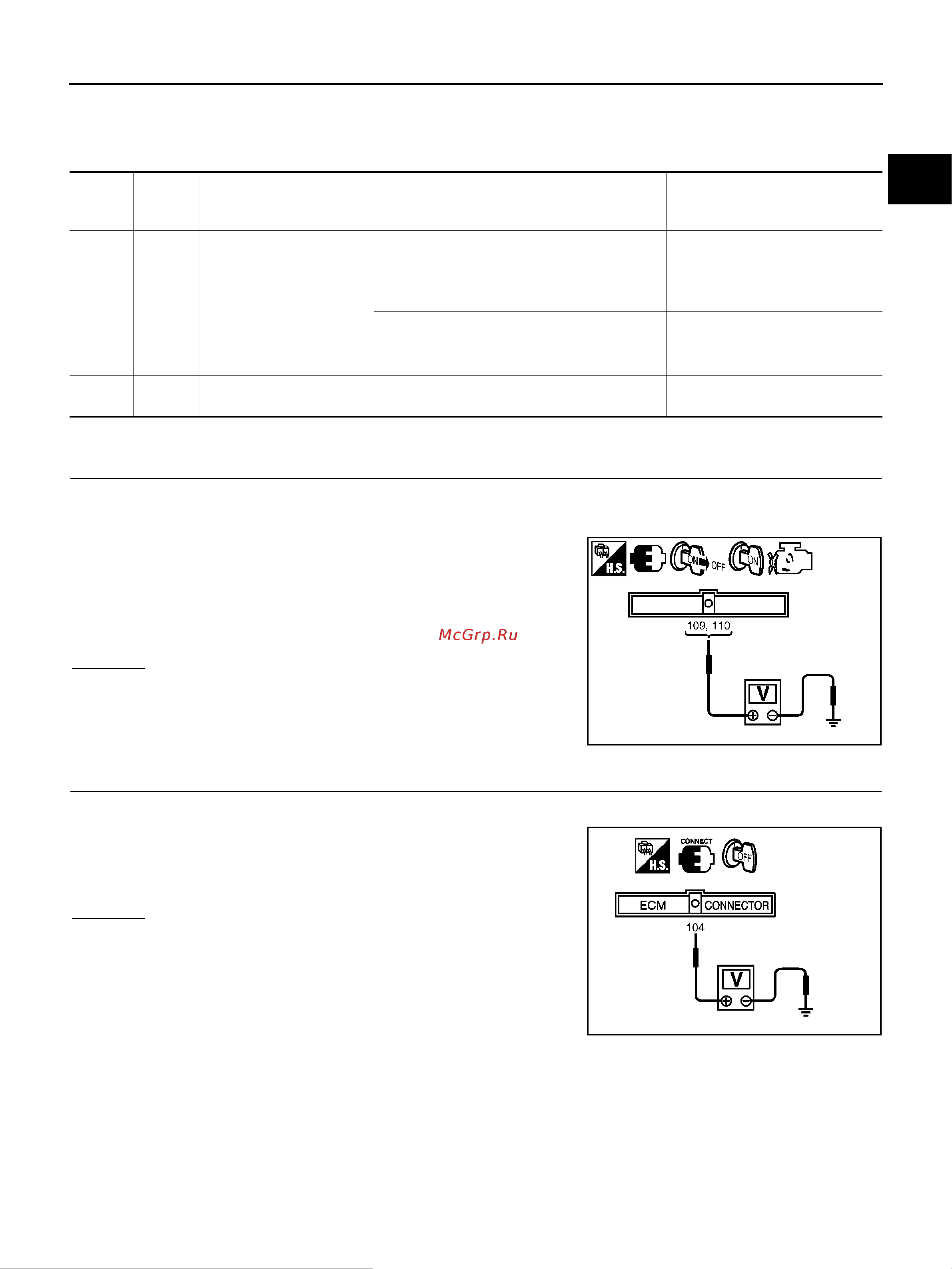

1. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON and then OFF.
3. Check voltage between ECM terminals 109, 110 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG (Battery voltage does not exist)>>GO TO 2.
NG (Battery voltage exists for more then a few seconds)>>GO TO
5.
2. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Check voltage between ECM terminal 104 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION
DATA
(DC Voltage)
104 P ECM relay (self-shutoff)
[Ignition switch ON]
[Ignition switch OFF]
For a few seconds after turning ignition
switch OFF
Approximately 1.4V
[Ignition switch OFF]
More than a few seconds after turning igni-
tion switch OFF
BATTERY VOLTAGE
(11 - 14V)
109
110
G
G
Power supply for ECM [Ignition switch ON]
BATTERY VOLTAGE
(11 - 14V)
Voltage: After turning ignition switch OFF, battery
voltage will exist for a few seconds, then
drop to approximately 0V.
MBIB1463E
Voltage: Battery voltage
PBIB1171E
