EC-1532
[HR (WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

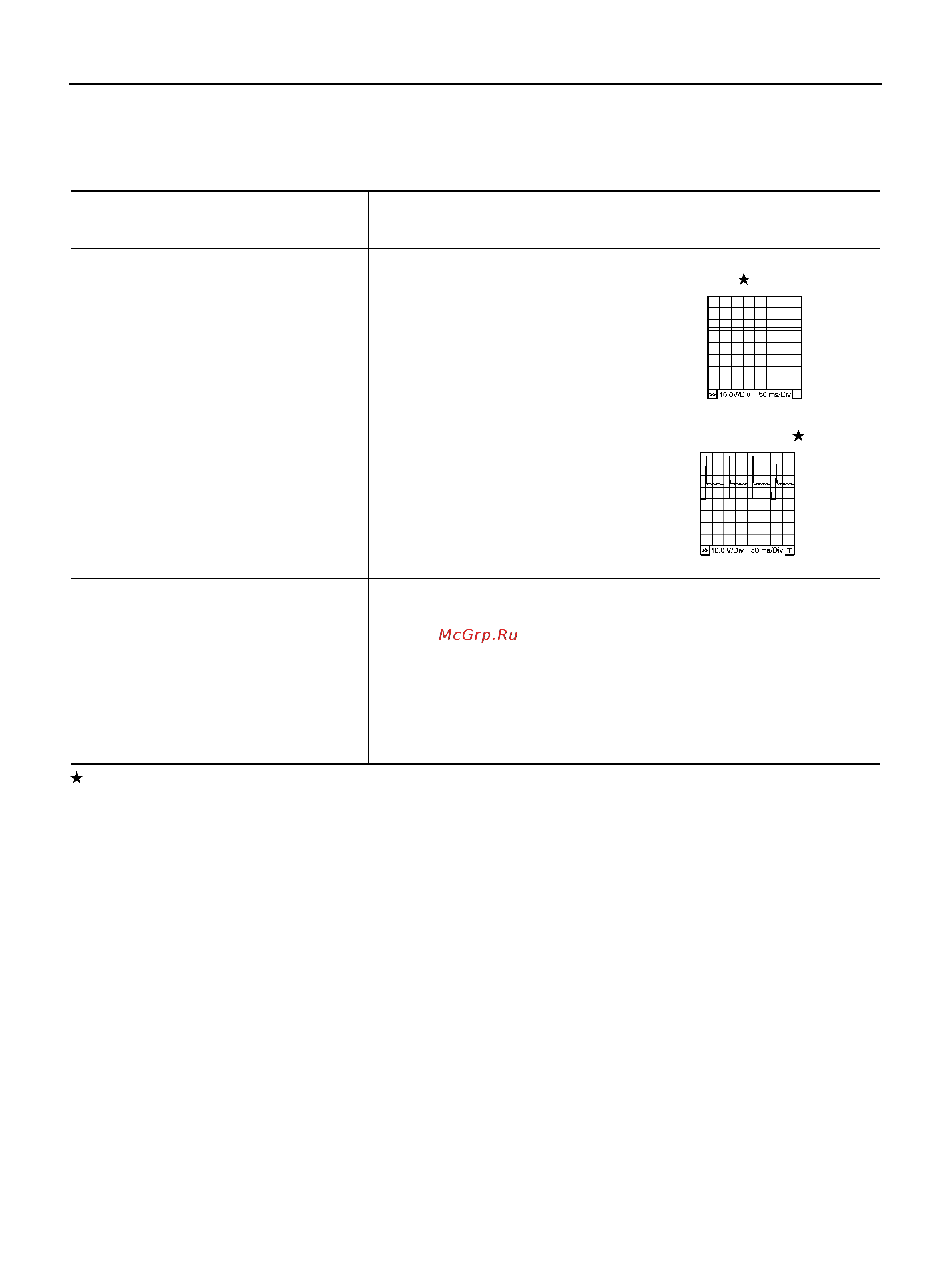

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
9LG
EVAP canister purge vol-
ume control solenoid valve
[Engine is running]
Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)
NOTE:
Voltage and Duty percent may vary.
Approximately 10V
32 P
ECM relay
(Self shut-off)
[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition switch
OFF
0-1.0V
[Ignition switch: OFF]
More than a few seconds after turning ignition
switch OFF
BATTERY VOLTAGE
(11 - 14V)
105 G Power supply for ECM [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14V)
PBIB0050E
PBIB0520E
