EC-1620
[K9K]
ENGINE CONTROL SYSTEM
Glow Plugs
BBS004TP
The resistance of a glow plug is 0.6.
Plugs may be removed without having to open the high pressure circuit.
REMOVAL
1. Disconnect the battery.
2. Unclip the plug connector.
3. Clean the outside of the plug to avoid any dirt entering the cylinder.
4. Loosen and remove the plugs.

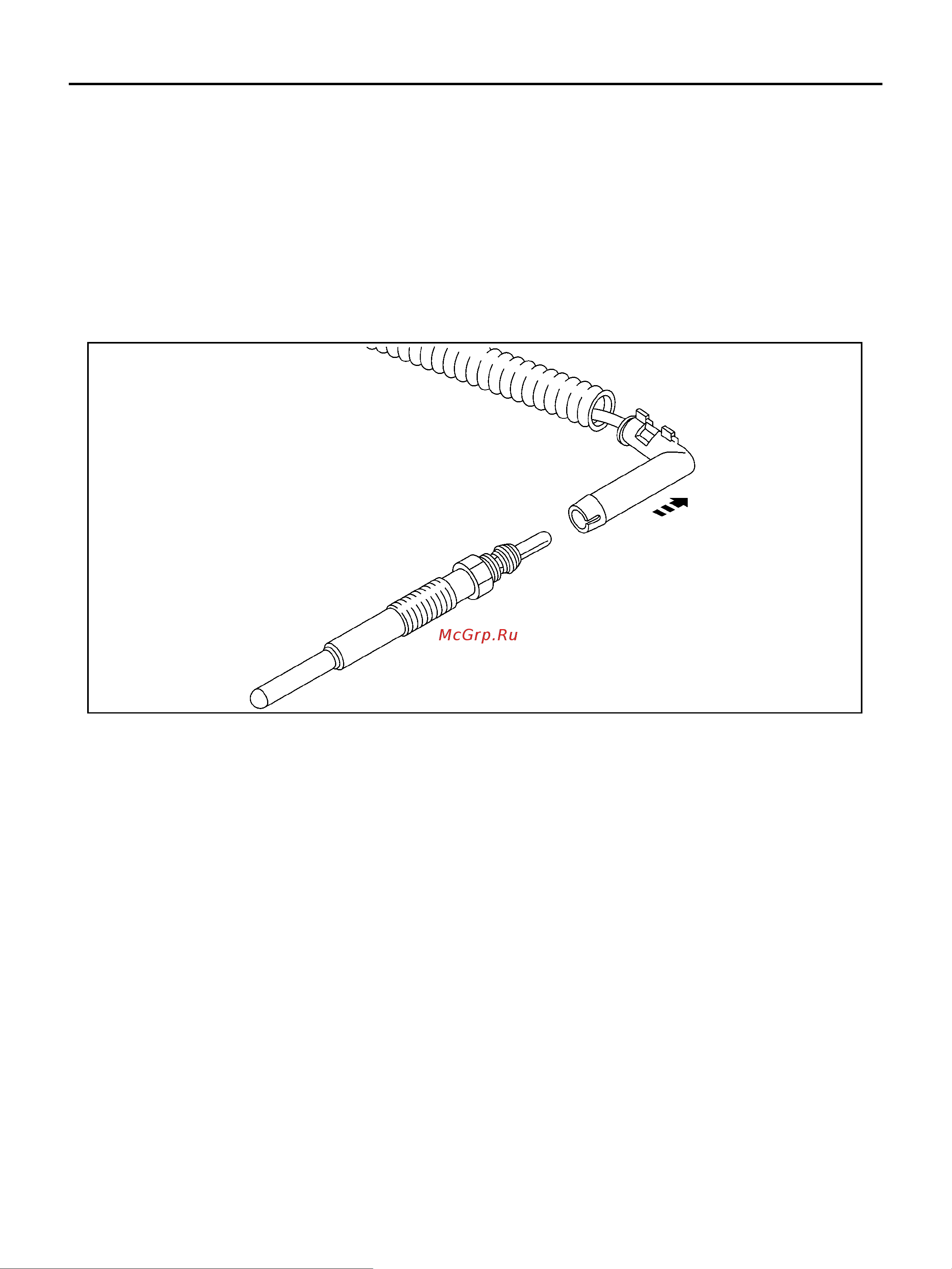

To undo the plug on cylinder 4 use a 10 mm long radio socket attached to a universal joint. Once the plug is
loosened use a hose to unscrew it completely.
REFITTING
Proceed in the reverse order of removal.
Cooling Fan Control
BBS004TQ
The cooling fan motor is controlled by the ECM.
COOLING FAN OPERATION WITH THE ENGINE RUNNING
The cooling fan motor is controlled:
At slow speed if the engine coolant temperature exceeds 96 °C(205°F) or if there is an engine coolant
temperature sensor malfunction, and is switched off when the temperature falls below 93 °C(199°F).
at high speed if the engine coolant temperature exceeds 99 °C(210°F) or if there is a low speed malfunc-
tion, and is switched off when the temperature falls below 96 °C(205°F).
The cooling fan motor low and high speeds are controlled when the air conditioning function is selected on the
instrument panel.
If the low speed setting is suspected, the high speed setting operates under the low speed conditions.
TIGHTENING TORQUE
Glow plug: 1.5 m, 15 kg/cm, 13 in/lb
MBIB1479E
