DTC P1706 PNP SWITCH
EC-1479
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC

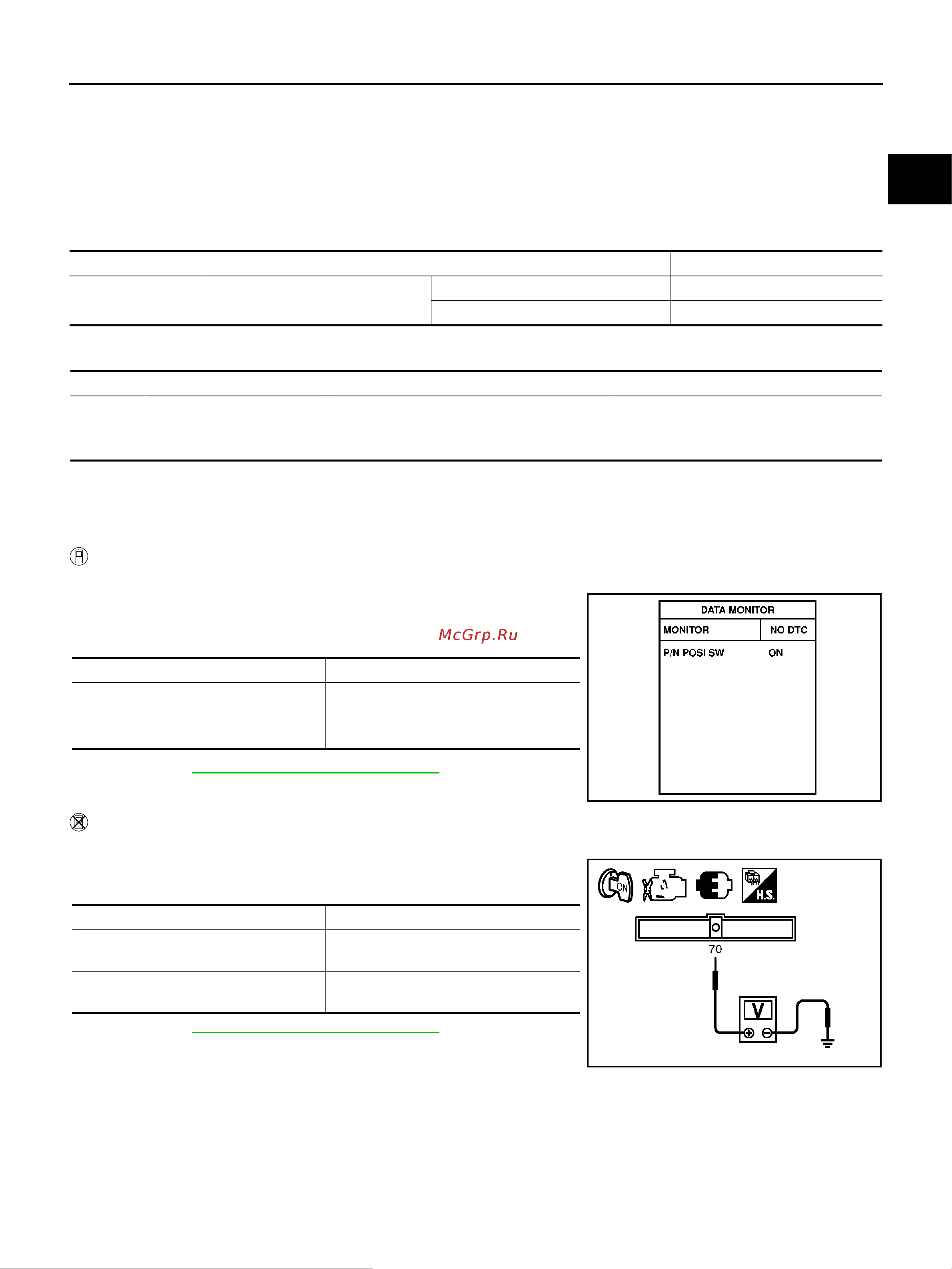

DTC P1706 PNP SWITCH PFP:32006
Component Description
BBS004Q2
When the shift lever position is P or N (A/T), Neutral (M/T), park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor Mode
BBS004Q3
Specification data are reference values.
On Board Diagnosis Logic
BBS004Q4
Overall Function Check
BBS004Q6
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-1483, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 70 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-1483, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ON
Shift lever: P or N (A/T), Neutral (M/T) ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706
Park/neutral position switch
The signal of the park/neutral position (PNP)
switch is not changed in the process of
engine starting and driving.
Harness or connectors
(PNP switch circuit is open or shorted.)
Park/neutral position (PNP) switch
Position (Shift lever) Known-good signal
N or P position (A/T)
Neutral position (M/T)
ON
Except above position OFF
SEF212Y
Condition (Gear position) Voltage (Known-good data)
P or N position (A/T)
Neutral position (M/T)
Approx. 0
Except above position
BATTERY VOLTAGE
(11 - 14V)
MBIB1397E
