EC-1852
[K9K]
DTC P0703 BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS00475

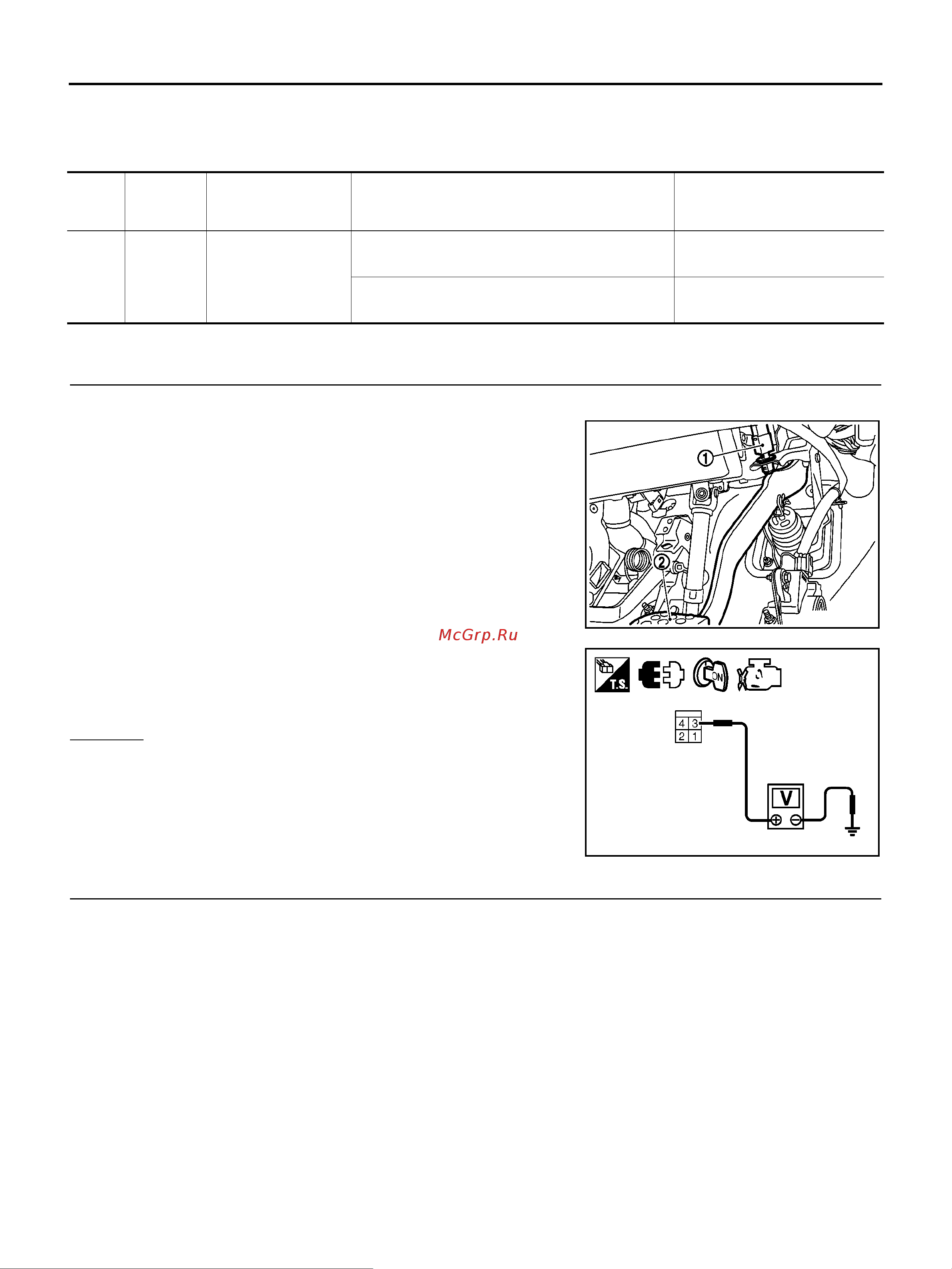

1. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
Brake pedal (2)
3. Turn ignition switch ON.
4. Check voltage between stop lamp switch terminal 3 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M1, E101 (RHD models)
Harness connectors M8, M201 (RHD models)
10A fuse
Fuse block (J/B) connector E7
Harness for open and short between stop lamp switch and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
5 R Stop lamp switch
[Ignition switch: ON]
Brake pedal: Fully released
Approximately 0V
[Ignition switch: ON]
Brake pedal: Slightly depressed
BATTERY VOLTAGE
(11 - 14V)
MBIB1346E
Voltage: Battery voltage
MBIB1558E
