Nissan Note [1757/1872] Component inspection

Nissan Note [1757/1872] Component inspection
DTC P0225 APP SENSOR
EC-1757
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EC
6. CHECK APP SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 30 and APP sensor terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M201, M8 (RHD models)
Harness connectors M1, E101 (RHD models)
Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK APP SENSOR
Refer to EC-1757, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace accelerator pedal assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-1697, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component Inspection
BBS0043W
ACCELERATOR PEDAL POSITION SENSOR

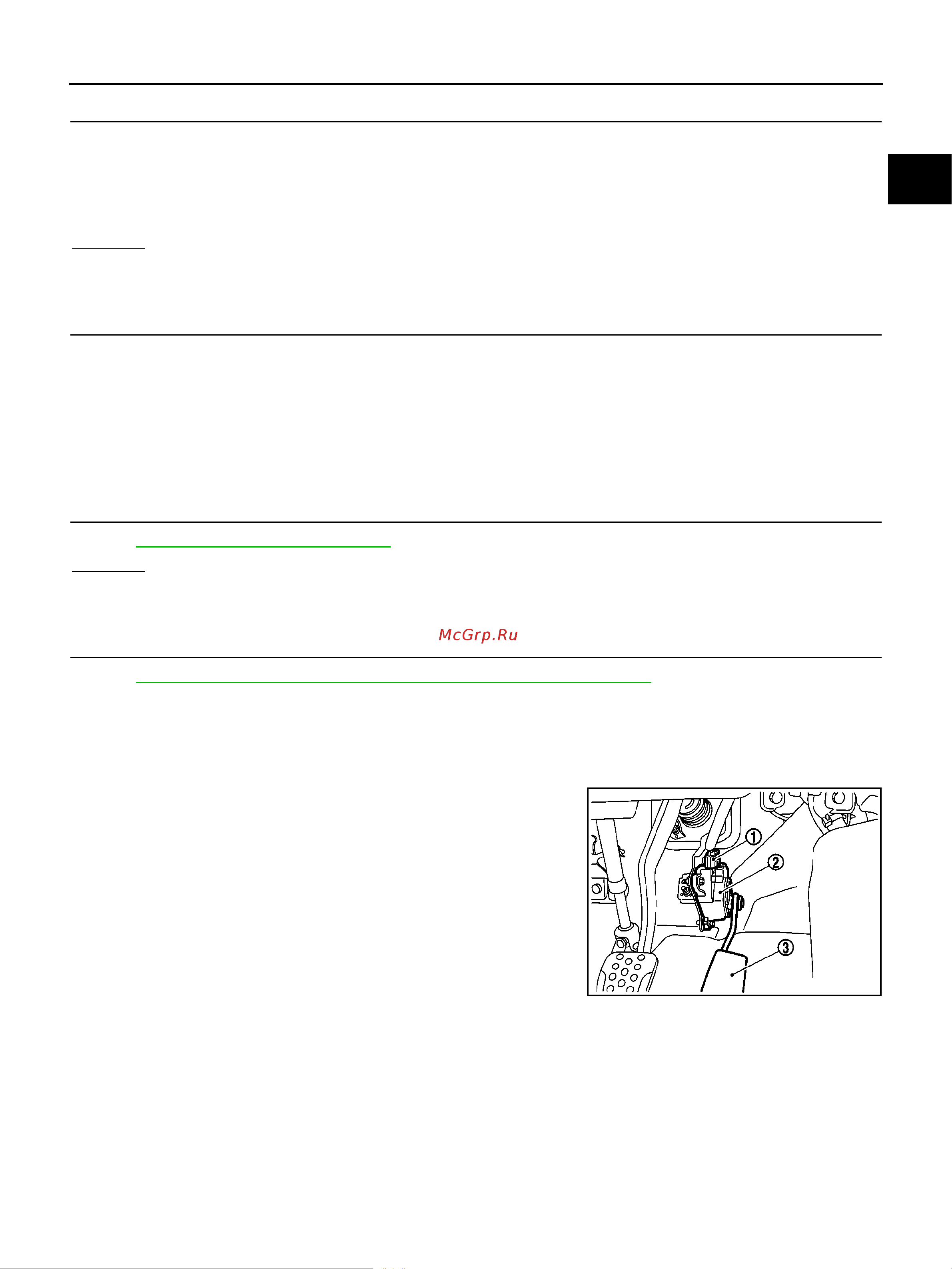

1. Disconnect APP sensor harness connector (1).
Accelerator pedal position sensor (2)
Accelerator pedal (3)
Continuity should exist.
MBIB1345E
