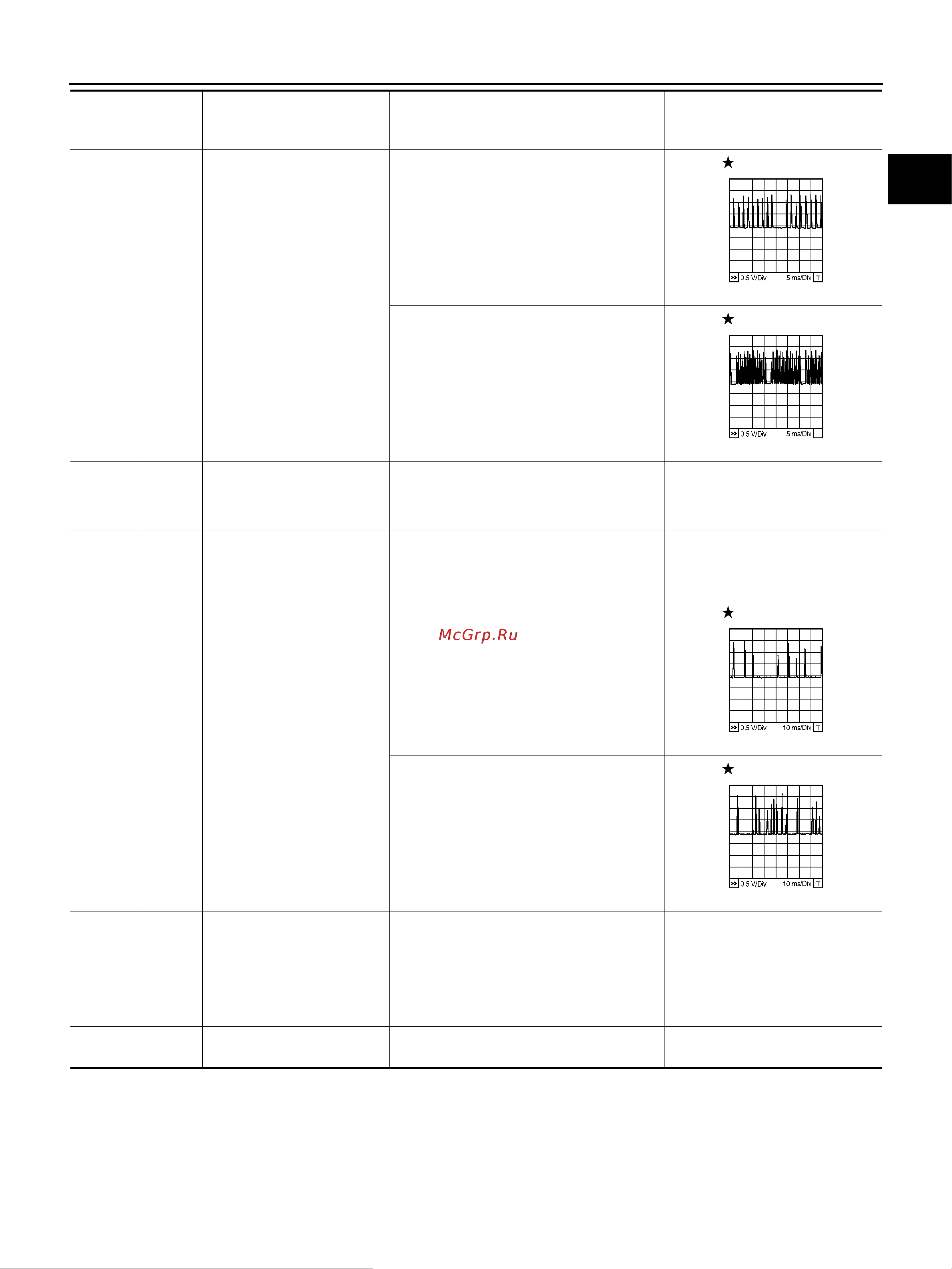

TROUBLE DIAGNOSIS
EC-1309
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
61 Y
Crankshaft position sensor
(POS)
[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idle.
0-1.0V
[Engine is running]
Engine speed: 2,000 rpm
0-1.0V
62 W
Sensor ground
[Crankshaft position sensor
(POS)]
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
63 B
Sensor ground
[Camshaft position sensor
(PHASE)]
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
65 R
Camshaft position sensor
(PHASE)
[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idle.
0-1.0V
[Engine is running]
Engine speed: 2,000 rpm
0-1.0V
70 GR
Park/Neutral position (PNP)
switch
[Ignition switch: ON]
Shift lever: P or N (A/T models)
Shift lever: Neutral (M/T models)
Approximately 0V
[Ignition switch: ON]
Except above position
BATTERY VOLTAGE
(11 - 14V)
72 L
Sensor power supply
(Throttle position sensor)
[Ignition switch: ON] Approximately 5V
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
MBIB1453E
MBIB1454E
MBIB1455E
MBIB1456E
