EC-1052
[HR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic Procedure
BBS004E6
1. CHECK STARTING SYSTEM
Turn ignition switch to START position.
Yes or No
Yes >>GOTO2.
No >> Check starting system. (Refer to SC-45, "
STARTING SYSTEM" .)

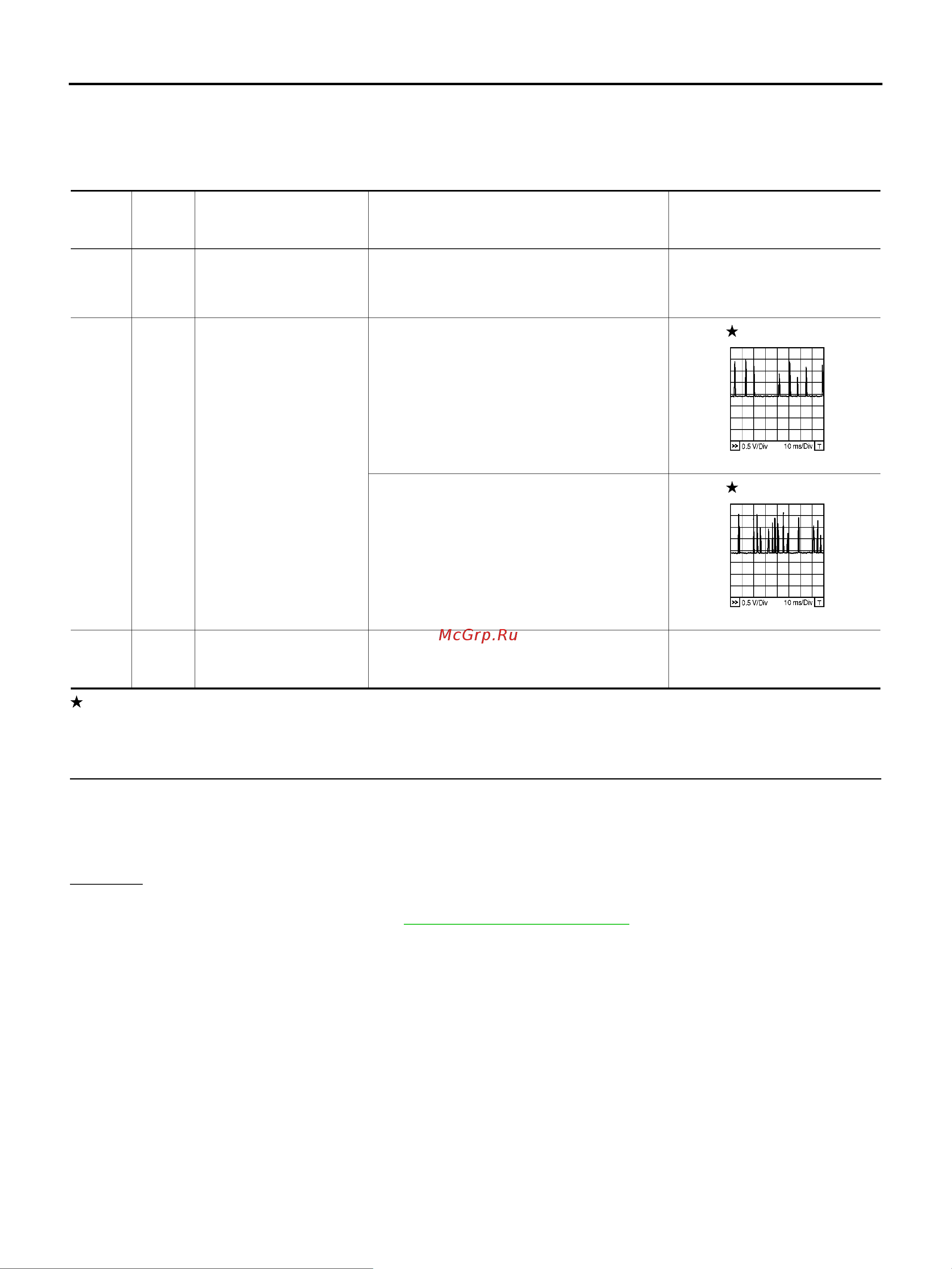

TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
63 B
Sensor ground
[Camshaft position sensor
(PHASE)]
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
65 R
Camshaft position sensor
(PHASE)
[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle
0-1.0V
[Engine is running]
Engine speed: 2,000 rpm
0-1.0V
78 O
Sensor power supply
[Camshaft position sensor
(PHASE)]
[Ignition switch: ON] Approximately 5V
MBIB1455E
MBIB1456E
Does the engine turn over?
Does the starter motor operate?
