DTC P1111 IVT CONTROL SOLENOID VALVE
EC-1081
[HR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
5. CHECK INTERMITTENT INCIDENT
Refer to EC-917, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component Inspection
BBS004F4

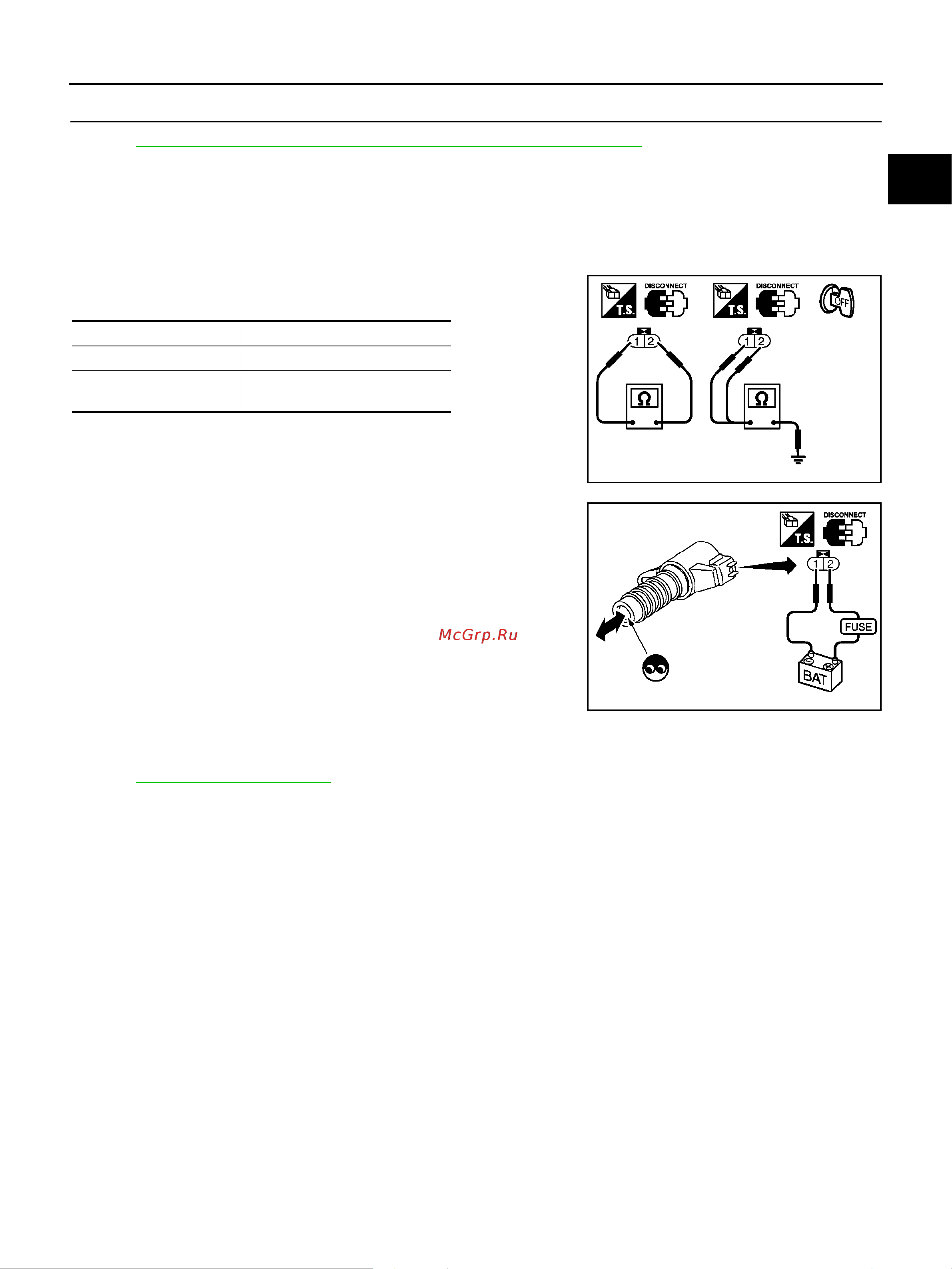

INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve as follows.
If NG, replace intake valve timing control solenoid valve.
IfOK,gotonextstep.
3. Remove intake valve timing control solenoid valve.
4. Provide 12V DC between intake valve timing control solenoid
valve terminals and then interrupt it. Make sure that the plunger
movesasshowninthefigure.
CAUTION:
Do not apply 12V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
If NG, replace intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Removal and Installation
BBS004F5
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-142, "TIMING CHAIN" .
Terminal Resistance
1 and 2 6.7 - 7.7 [at 20°C(68°F)]
1 or 2 and ground
∞Ω
(Continuity should not exist.)
PBIB0193E
PBIB2275E
