EC-1528
[HR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
PFP:25350

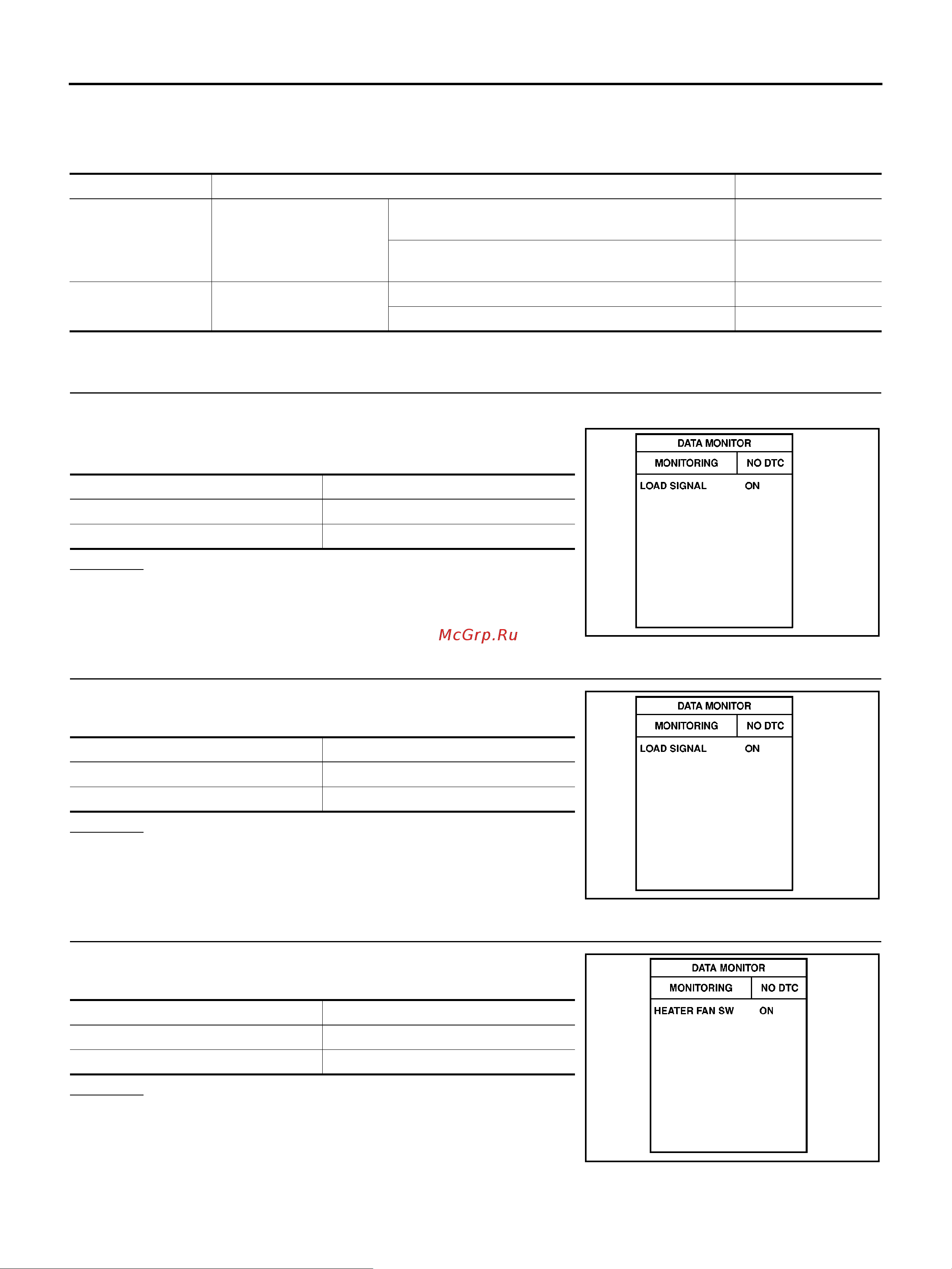

CONSULT-II Reference Value in Data Monitor Mode
BBS004RG
Specification data are reference values.
Diagnostic Procedure
BBS004RH
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCITION-I
1. Turn ignition switch ON.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” in “DATA MONITOR” mode with CONSULT-
II under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Check HEATER FAN SW” in “DATA MONITOR mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> INSPECTION END.
NG >> GO TO 6.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
Ignition switch: ON
Rear window defogger switch is ON and/or lighting
switch is in 2nd position.
ON
Rear window defogger switch is OFF and lighting switch
is OFF.
OFF
HEATER FAN SW
Ignition switch: ON
Heater fan is operating. ON
Heater fan is not operating. OFF
Condition LOAD SIGNAL
Lighting switch: ON at 2nd position ON
Lighting switch: OFF OFF
PBIB0103E
Condition LOAD SIGNAL
Rear window defogger switch: ON ON
Rear window defogger switch: OFF OFF
PBIB0103E
Condition HEATER FAN SW
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB1995E
