EC-1780
[K9K]
DTC P0340 CMP SENSOR
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

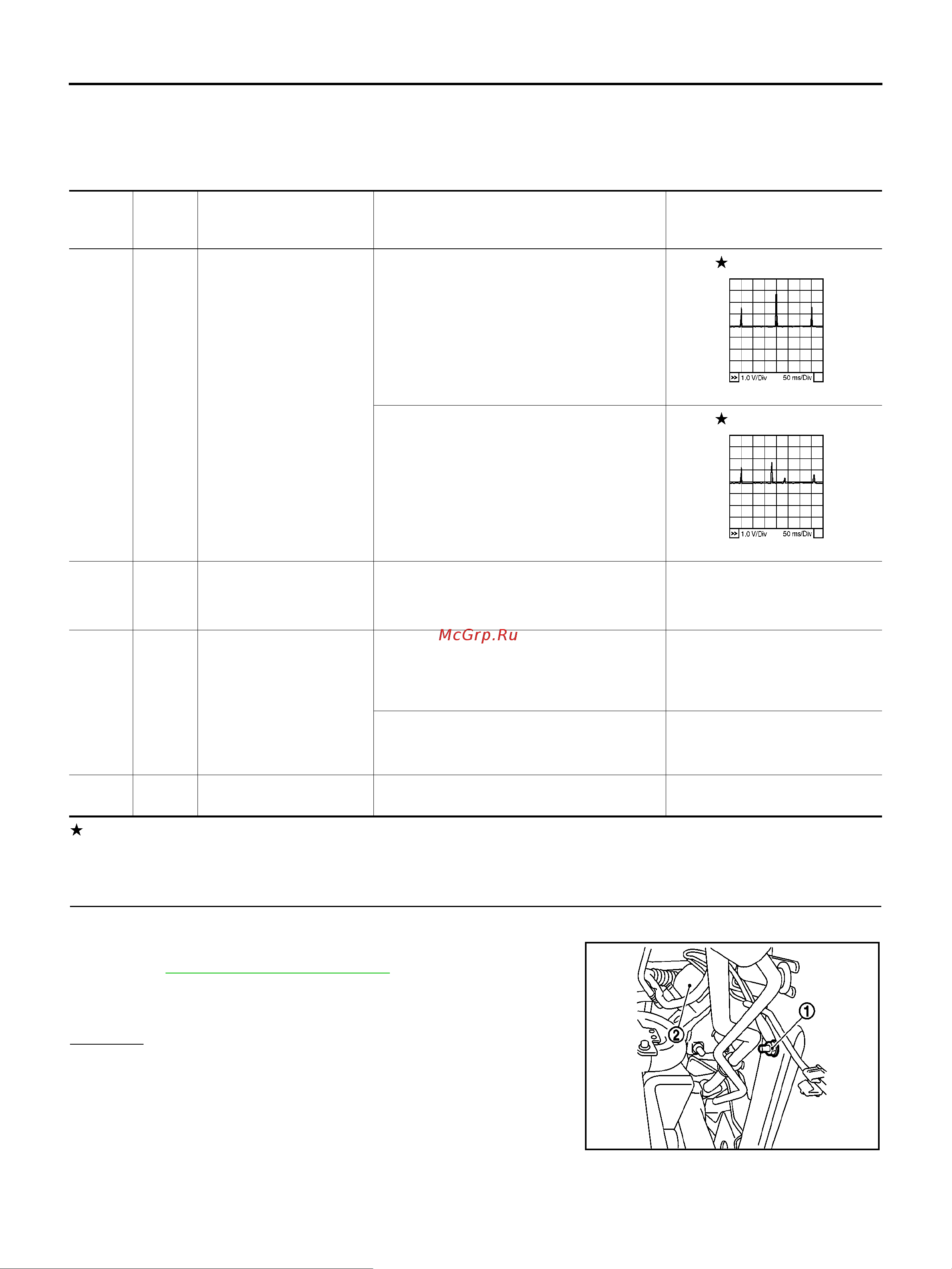

Diagnostic Procedure
BBS0044Q
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body.
Refer to EC-1703, "
Ground Inspection" .
Body ground (1)
Priming pump (2)
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION
DATA
(DC Voltage and Pulse Signal)
56 Y Camshaft position sensor
[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.
0-1V
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm
0-1V
66 L
Sensor ground
(Camshaft position sensor)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0.3V
104 P ECM relay (self-shutoff)
[Ignition switch ON]
[Ignition switch OFF]
For a few seconds after turning ignition
switch OFF
Approximately 1.4V
[Ignition switch OFF]
More than a few seconds after turning igni-
tion switch OFF
BATTERY VOLTAGE
(11 - 14V)
109
110
G
G
Power supply for ECM [Ignition switch ON]
BATTERY VOLTAGE
(11 - 14V)
MBIB1510E
MBIB1511E
MBIB1520E
