EC-1408
[HR (WITHOUT EURO-OBD)]

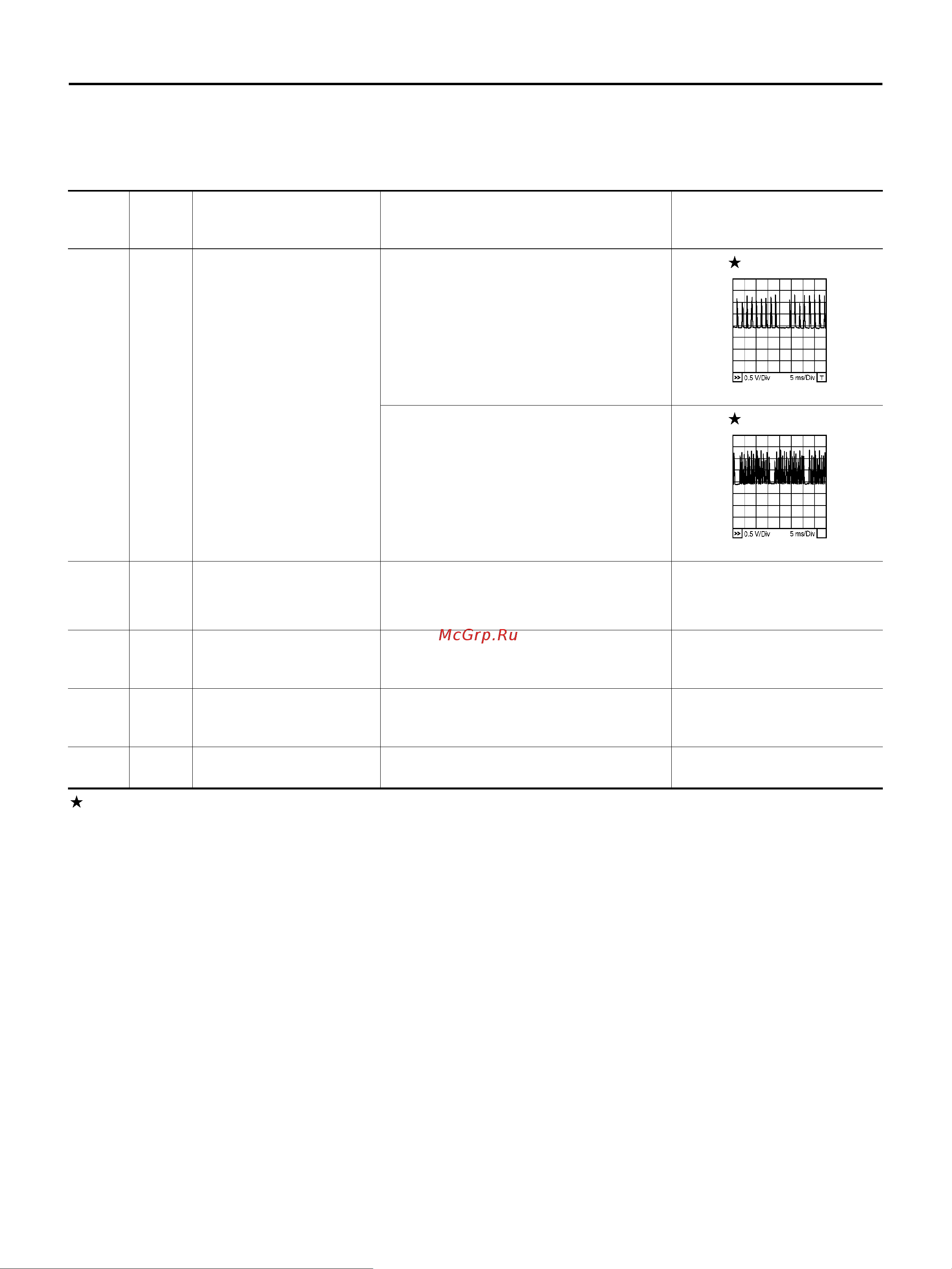

DTC P0335 CKP SENSOR (POS)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
61 Y
Crankshaft position
sensor (POS)
[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle
0 - 1.0V
[Engine is running]
Engine speed: 2,000 rpm
0 - 1.0V
62 W
Sensor ground
[Crankshaft position sensor
(POS)]
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
74 W
Sensor power supply
(Refrigerant pressure sen-
sor)
[Ignition switch: ON] Approximately 5V
75 G
Sensor power supply
[Crankshaft position sensor
(POS)]
[Ignition switch: ON] Approximately 5V
102 BR
Sensor power supply
(APP sensor 2)
[Ignition switch: ON] Approximately 5V
MBIB1453E
MBIB1454E
