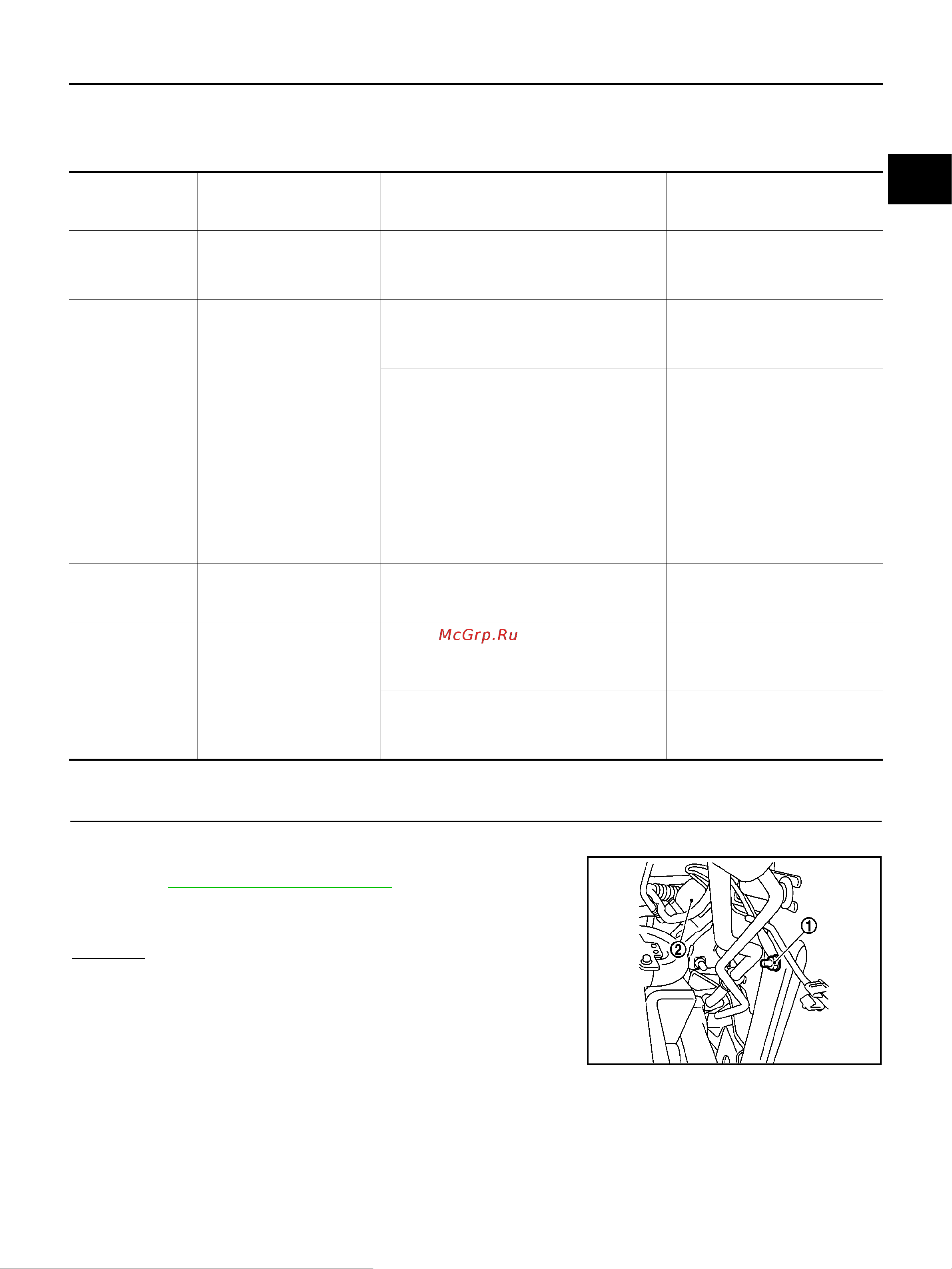

DTC P0225 APP SENSOR
EC-1755
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS0043V
1. CHCEK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body.
Refer to EC-1703, "
Ground Inspection" .
Body ground (1)
Priming pump (2)
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION
DATA
(DC Voltage and Pulse Signal)
6L/R
Sensor ground
(Accelerator pedal position
sensor 2)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0.3V
12 L/W
Accelerator pedal position
sensor 2
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully released
Approximately 0.4V
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully depressed
Approximately 2.0V
18 L
Sensor power supply
(Accelerator pedal position
sensor 2)
[Ignition switch ON] Approximately 4.6V
28 B
Sensor ground
(Accelerator pedal position
sensor 1)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0.24V
29 R
Sensor power supply
(Accelerator pedal position
sensor 1)
[Ignition switch ON] Approximately 5.0V
30 W
Accelerator pedal position
sensor 1
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully released
Approximately 0.76V
[Ignition switch ON]
Engine stopped
Accelerator pedal: Fully depressed
Approximately 4.2V
MBIB1520E
