EC-1592
[HR (WITHOUT EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic Procedure
BBS004T0

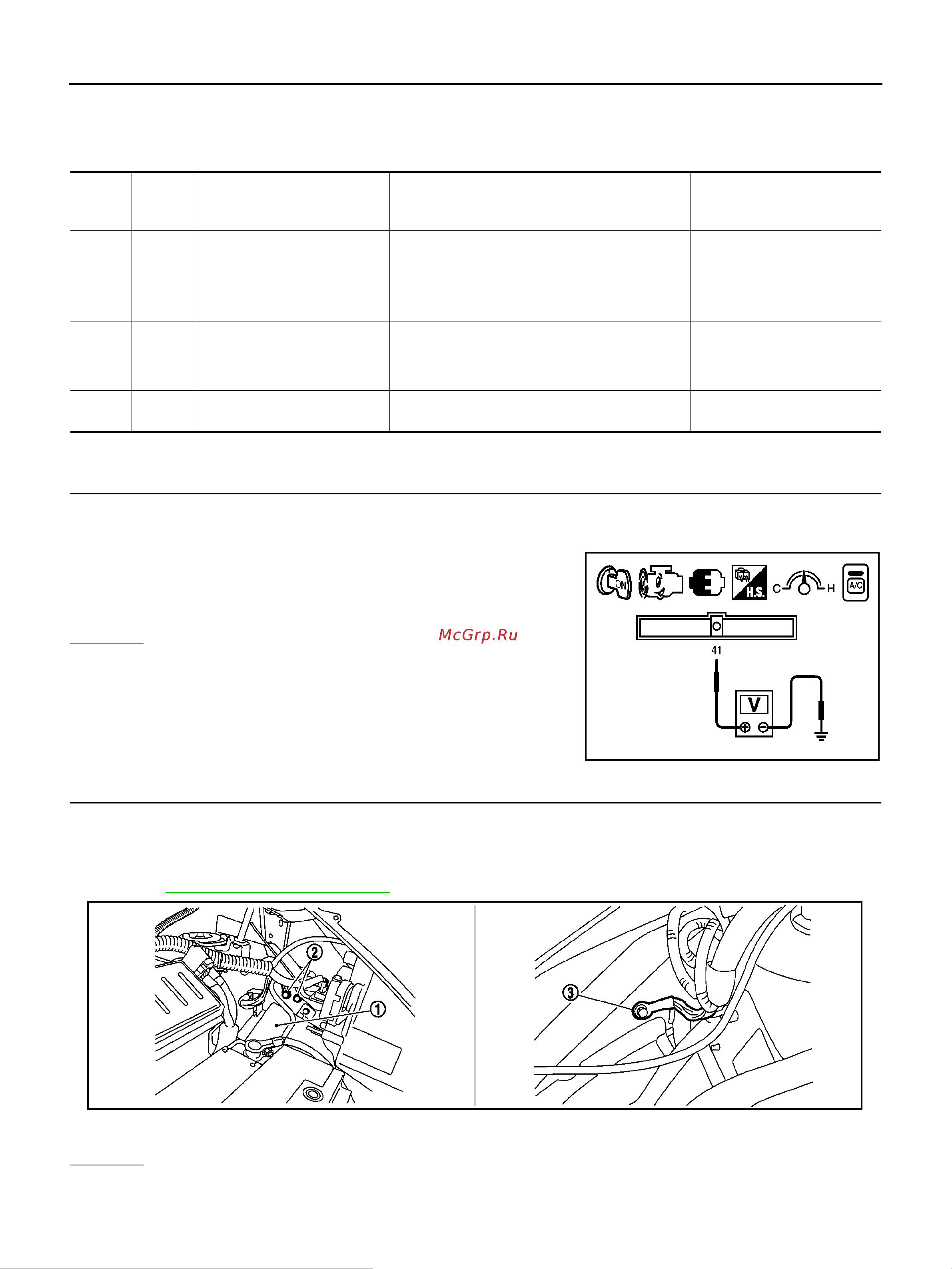

1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check voltage between ECM terminal 41 and ground with CON-
SULT-II or tester.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn A/C switch and blower fan switch OFF.
2. Stop engine.
3. Loosen and retighten ground screws on the body.
Refer to EC-1342, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
41 BR Refrigerant pressure sensor
[Engine is running]
Warm-up condition
Both A/C switch and blower fan switch: ON
(Compressor operates)
1.0 - 4.0V
48 Y
Sensor ground
(Refrigerant pressure sensor)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
74 W
Sensor power supply
(Refrigerant pressure sensor)
[Ignition switch: ON] Approximately 5V
Voltage: 1.0 - 4.0V
PBIA9574J
1. IPDM E/R 2. Body ground 3. Body ground
MBIB1550E
