DTC P0011 IVT CONTROL
EC-1351
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
7. If 1st trip DTC is detected, go to EC-1352, "Diagnostic Procedure" .
Overall Function Check
BBS004LU
Use this procedure to check the overall function of the intake valve timing control system. During this check, a
1st trip DTC might not be confirmed.
WITHOUT CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Set the tester probe between ECM terminal 73 (IVT control solenoid valve signal) and ground.
5. Start engine and let it idle.
6. Check the voltage under the following conditions.

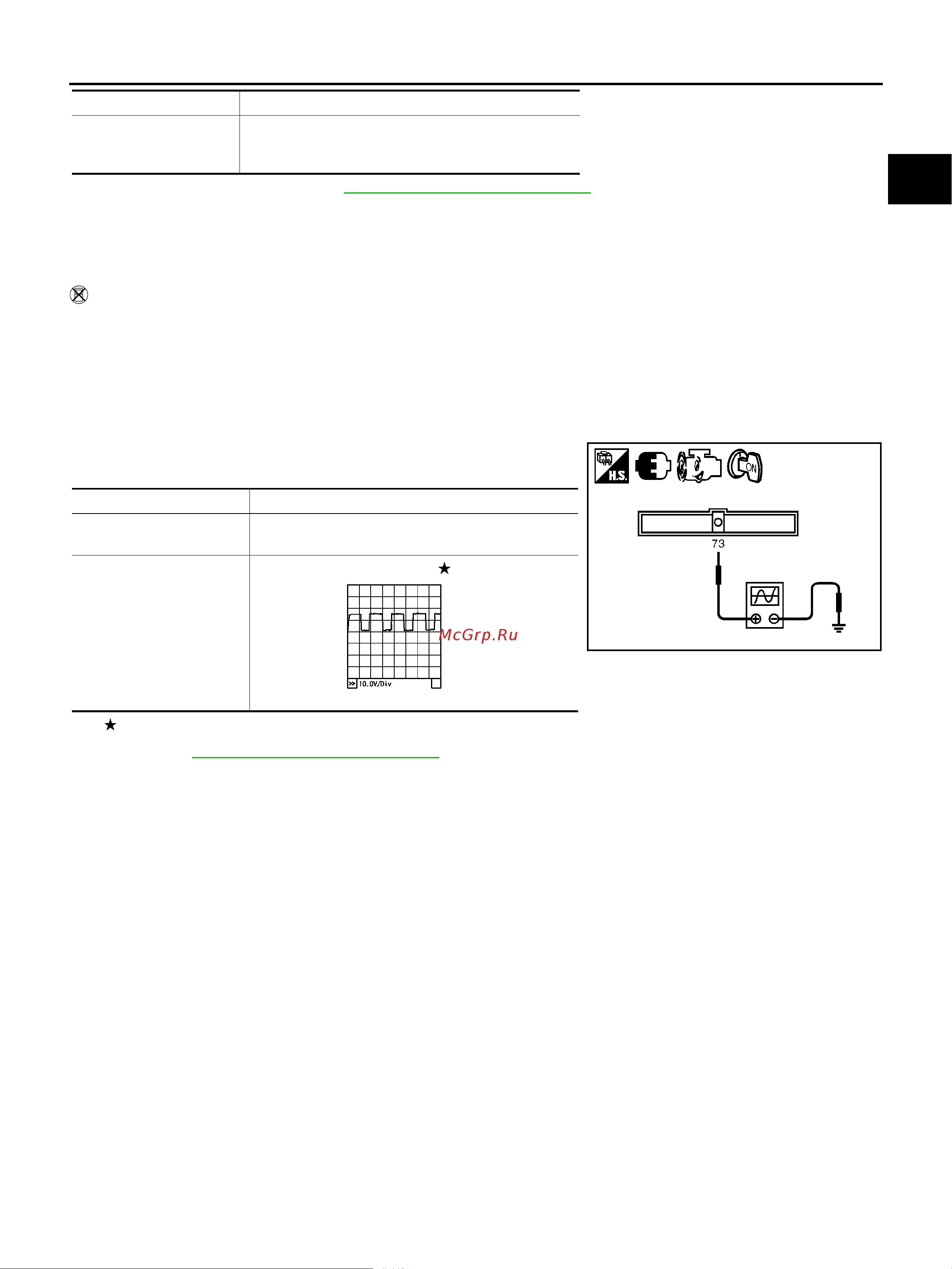

Verify that the oscilloscope screen shows the signal wave as
shown below.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
7. If NG, go to EC-1352, "Diagnostic Procedure" .
Shift lever 1st or 2nd position
Driving location uphill
Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
Conditions Voltage
At idle
BATTERY VOLTAGE
(11 - 14V)
Engine speed: 2,000 rpm
7V - 10V
PBIB3036E
PBIA4937J
