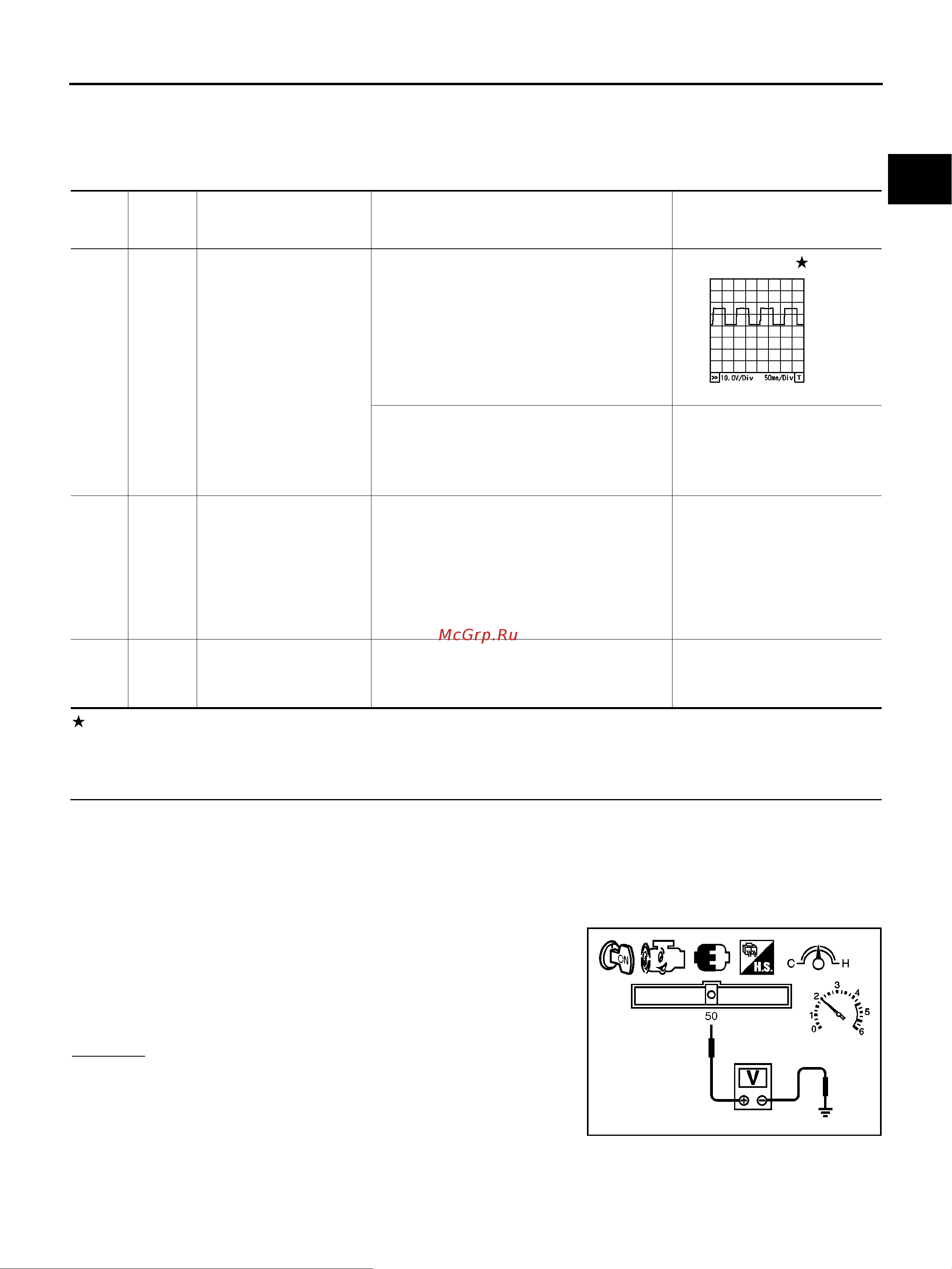

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic Procedure
BBS004SF
1. CHECK OVERALL FUNCTION - I
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 50 (HO2S2 signal) and ground.
6. Check the voltage while revving engine up to 4,000 rpm under
no load at least 10 times.
(Depress and release the accelerator pedal as quickly as possi-
ble.)
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
TER-
MINAL
NO.
WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
5GR
Heated oxygen sensor 2
heater
[Engine is running]
Below 3,600 rpm after the following condi-
tions are met.
Engine: After warming up
Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
Approximately 10V
[Ignition switch: ON]
Engine stopped
[Engine is running]
Engine speed: Above 3,600 rpm
BATTERY VOLTAGE
(11 - 14V)
50 B Heated oxygen sensor 2
[Engine is running]
Revving engine from idle to 3,000 rpm quickly
after the following conditions are met.
Engine: After warming up.
Keep the engine speed between 3,500 rpm
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.
0 - Approximately 1.0V
59 LG
Sensor ground
(Heated oxygen sensor 2)
[Engine is running]
Warm-up condition
Idle speed
Approximately 0V
PBIA8148J
The voltage does not remain in the range of 0.2 - 0.4V
PBIB3000E
