IGNITION SIGNAL
EC-1585
[HR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC

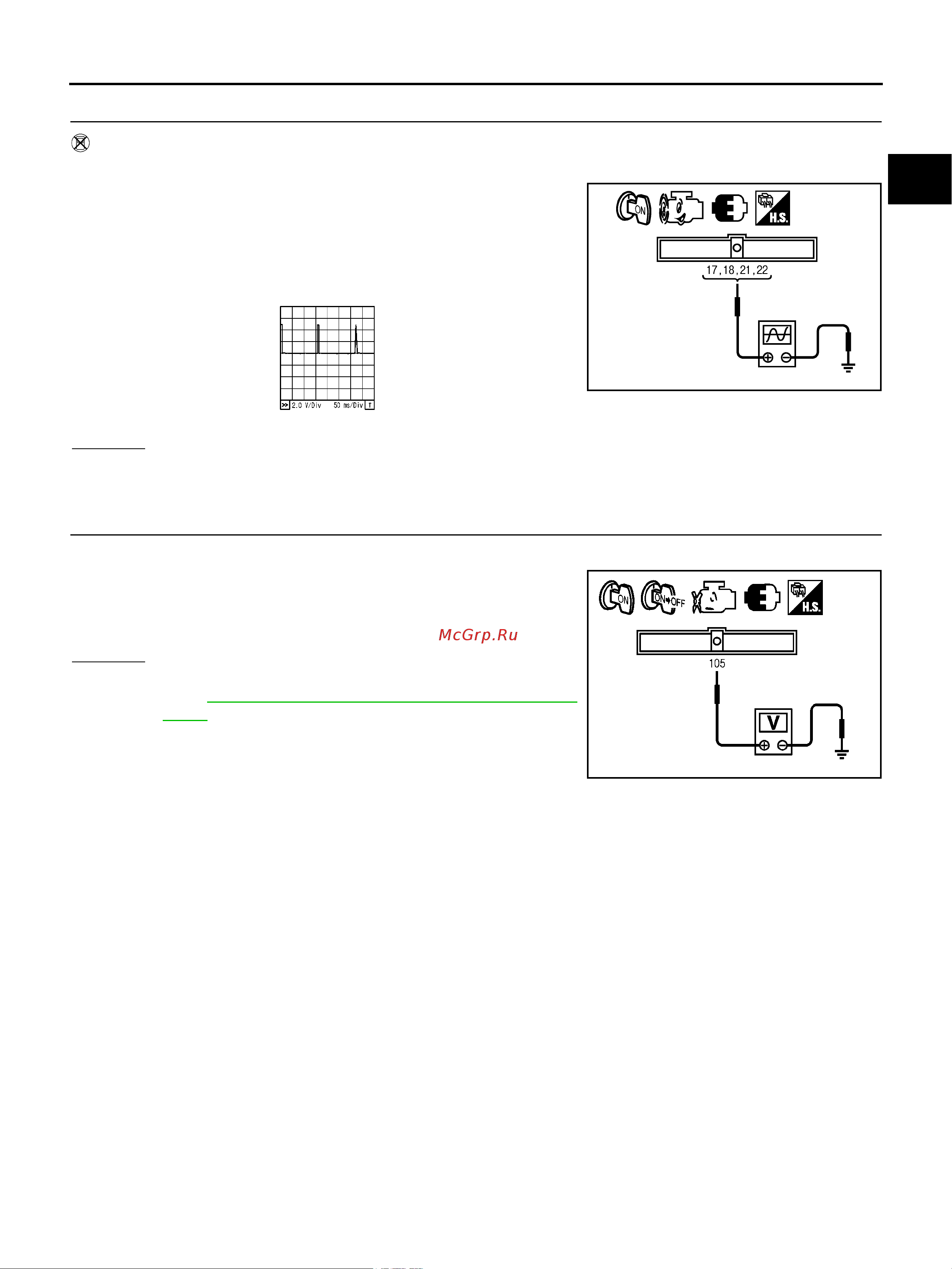

3. CHECK OVERALL FUNCTION
Without CONSULT-II
1. Let engine idle.
2. Read the voltage signal between ECM terminals 17, 18, 21, 22
and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as
shown below.
NOTE:
The pulse cycle changes depending on rpm at idle.
OK or NG
OK >> INSPECTION END
NG >> GO TO 10.
4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
2. Check voltage between ECM terminal 105 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> Go to EC-1337, "
POWER SUPPLY AND GROUND CIR-
CUIT" .
PBIA9567J
PBIA9265J
Voltage: Battery voltage
PBIA9575J
