TRANSLATION OF
THE ORIGINAL INSTRUCTIONS
MITRE SAW
59G800
CAUTION: BEFORE USING THE DEVICE READ THIS MANUAL
CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
DETAILED SAFETY REGULATIONS
PRECAUTIONS:
• Do not use damaged or deformed cutting blades.
• Replace table insert when it is worn out.
• Use only cutting blades that are recommended by the
manufacturer and comply with the standard EN 847-1.
• Do not use cutting blades made of high speed steel.
• Use personal protection measures, such as:
- earmuff protectors to reduce risk of hearing damage,
- eye shield,
- respiratory system protection to reduce risk of harmful dusts
inhalation,
- gloves for maintenance of cutting blades (hold cutting blades
by the hole whenever possible) and other rough materials.
• Connect dust extraction system when cutting wood.
SAFE OPERATION:
• Each time before connecting the mitre saw check the power cord,
in case of damage hand over to authorized workshop for repair.
• Before connecting the saw to mains socket make sure the supply
voltage matches the voltage on the rating plate of the tool.
• Do not allow bystanders, and children in particular, to touch the
tool, power cord, or get into the workplace.
• Match cutting blade with material that you plan to cut.
• Never use mitre saw for cutting materials other than specified by
the manufacturer.
• Do not use the saw without guard or when the guard is blocked.
• Ensure that saw arm is well fixed when making a mitre cut.
• Floor close to the machine should be kept tidy and without loose
materials like scobs and other wastes.
• Provide appropriate top or spot lighting.
• Machine operator must be properly trained for use, operation and
working with the machine.
• Use sharp cutting blades only, observe maximum speed marked
on the cutting blade.
• Ensure that spacing parts and spindle rings are used in accordance
with the manufacturer instructions.
• If the mitre saw is equipped with laser, replacement with laser of
another type is forbidden. Repairs should be carried out by the
manufacturer or authorized representative.
• Before starting to work ensure the machine is fixed to a bench.
SAFETY RULES FOR LASER DEVICE
Laser device used in the power tool design is the class 2 with
maximum power below 1mW and wavelength 650 nm. Such device
is not dangerous to eyes, however do not look directly at the source
of the light (temporary blindness hazard).
WARNING. Do not look directly at the source of the laser beam. It
may cause hazards. Follow the below safety rules.
• Use the laser device in accordance with the manufacturer’s
instructions.
• Do not, either intentionally or unintentionally, point the laser
beam at people, animals or any object other than processed
material.
• Do not bring to accidental pointing the laser beam at bystanders’
or animals’ eyes for a period longer than 0.25 second, for instance
by pointing the laser beam at mirrors.
• Always ensure the laser beam is directed at material which does
not have any reflective surfaces. Reflective steel sheet does
not allow for laser use, because it might cause hazardous light
reflection directed at operator, bystanders or animals.
• Do not replace the laser unit with device of other type. All repairs
must be carried out by the manufacturer or authorized person.
LASER LIGHT, LASER RADIATION
DO NOT LOOK AT THE LASER BEAM
LASER DEVICE CLASS 2
Wavelength: 650 nm; Output: < 1 mW
EN 60825-1:2007
CAUTION: This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries.

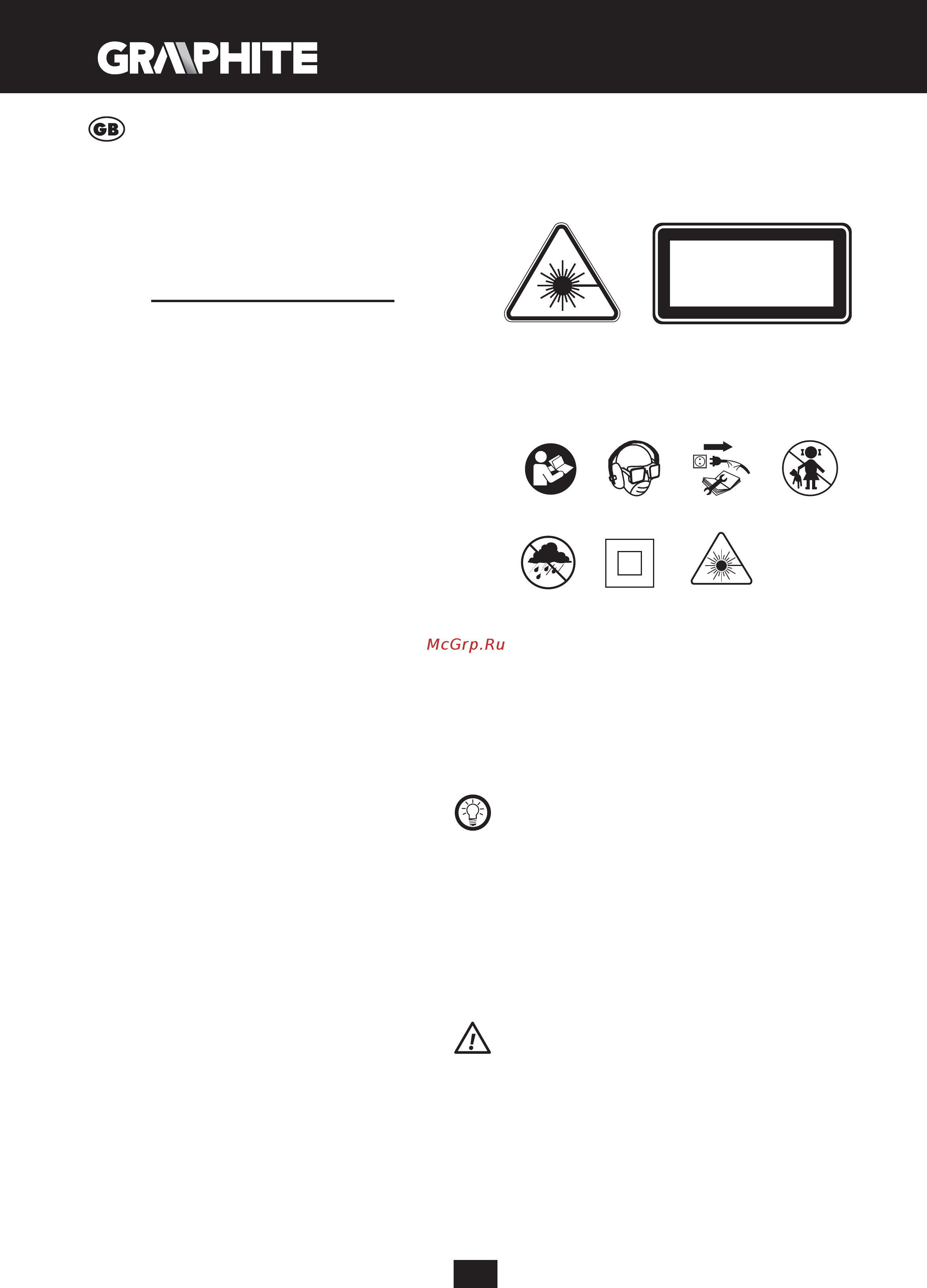

Explanation of used symbols
1 2 3 4
5 6 7
1. Read instruction manual, observe warnings and safety
conditions therein!
2. Use personal protection measures (protective goggles, earmuff
protectors)
3. Disconnect the power cord before starting maintenance or
operation.
4. Keep the tool away from children.
5. Protect against rain.
6. Protection class 2
7. Laser radiation. Do not look at laser beam
Adjustments other than described in this manual put in danger of
exposition to laser radiation!
CONSTRUCTION AND USE
Mitre saw is the tool equipped with base, that allows to change angle
of the cutting head attached to it. Additionally, the mitre saw cutting
head can tilt at an angle and be extended for greater functionality and
cutting length.
Mitre saw is designed for cutting wooden pieces that match with
the tool size. Do not use the saw for cutting firewood. Use the saw
accordingly to its purpose only. Attempts to use the saw for purposes
other than specified will be considered an improper use. Use the saw
only with appropriate cutting blades with teeth with sintered carbide
inserts. The mitre saw is fit for use in workshop woodworking or for
structural carpentry purposes.
Use the tool according to the manufacturer’s instructions only!
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Carrying handle
2. Handle grip
3. Switch
4. Cutting blade guard lever
5. Spindle lock button
6. Cutting blade shield
7. Carbon brush cover
8. Head locking pin
