24-port NWay Ethernet Switch User’s Guide

86 Using the Console Interface

To configure a VLAN, highlight the desired entry on the screen

above and press ENTER. The following MAC-Based VLAN---MAC

Assignment screen appears:

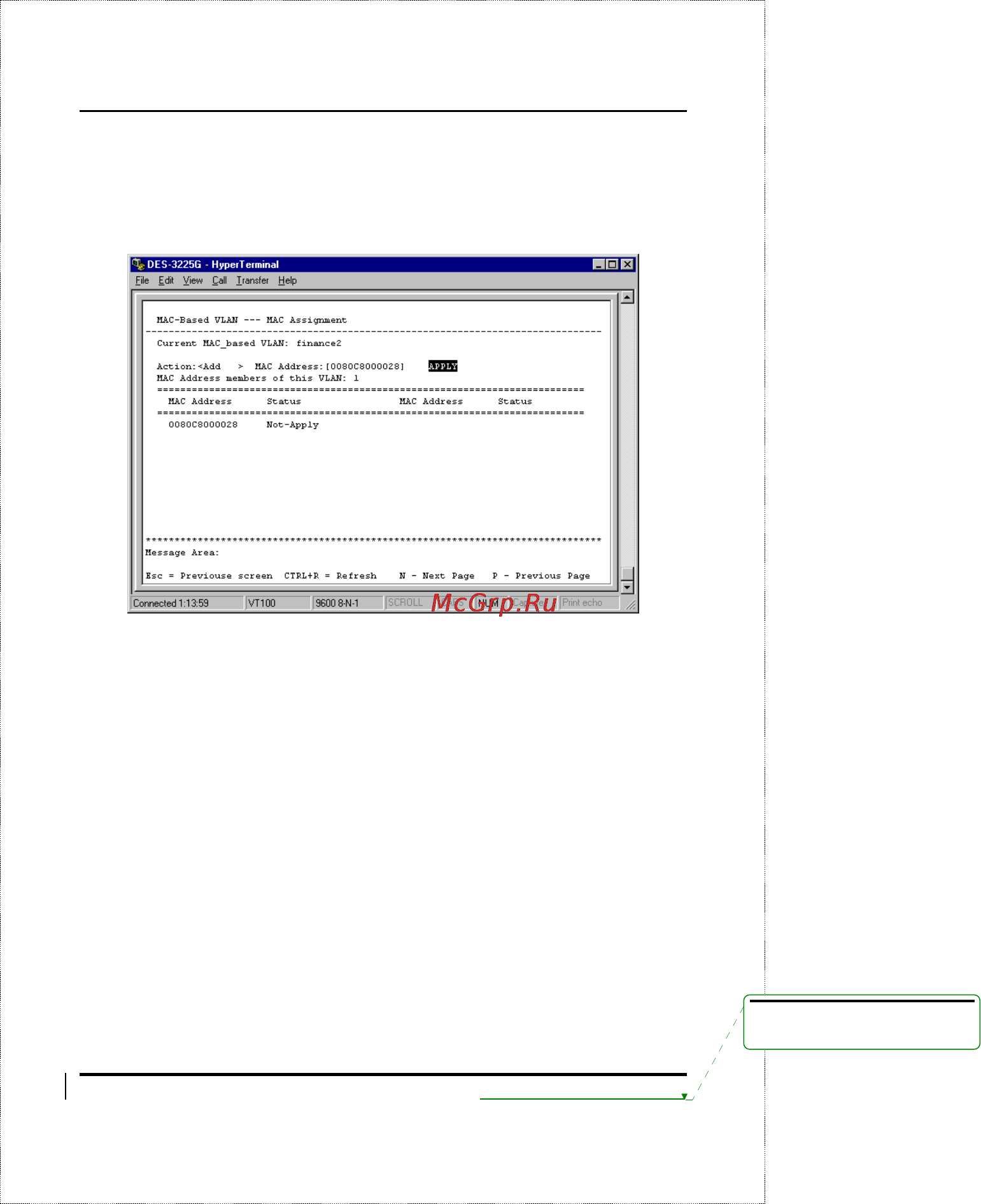

Figure 6-28. MAC-Based VLAN—MAC Assignment screen

The fields you can set are:

♦ Action Select the desired action by toggling between Add and

Remove.

♦ MAC Address The MAC address of the VLAN member being

added or removed.

Current MAC-based VLAN, MAC address members of the

VLAN, MAC Address (in the lower part of the screen), and Status

reflect the current conditions. They are read-only fields and cannot

be changed.

Удалено: Using the Console

Interface
