24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 59
Configure Console
You can use the Console Options screen to choose whether to use
the Switch’s RS-232C serial port for console management or for
out-of-band TCP/IP communications using SLIP, and to set the bit
rate used for SLIP communications.
Choose Configure Console to access the last item on the
Configuration menu. The following screen appears:

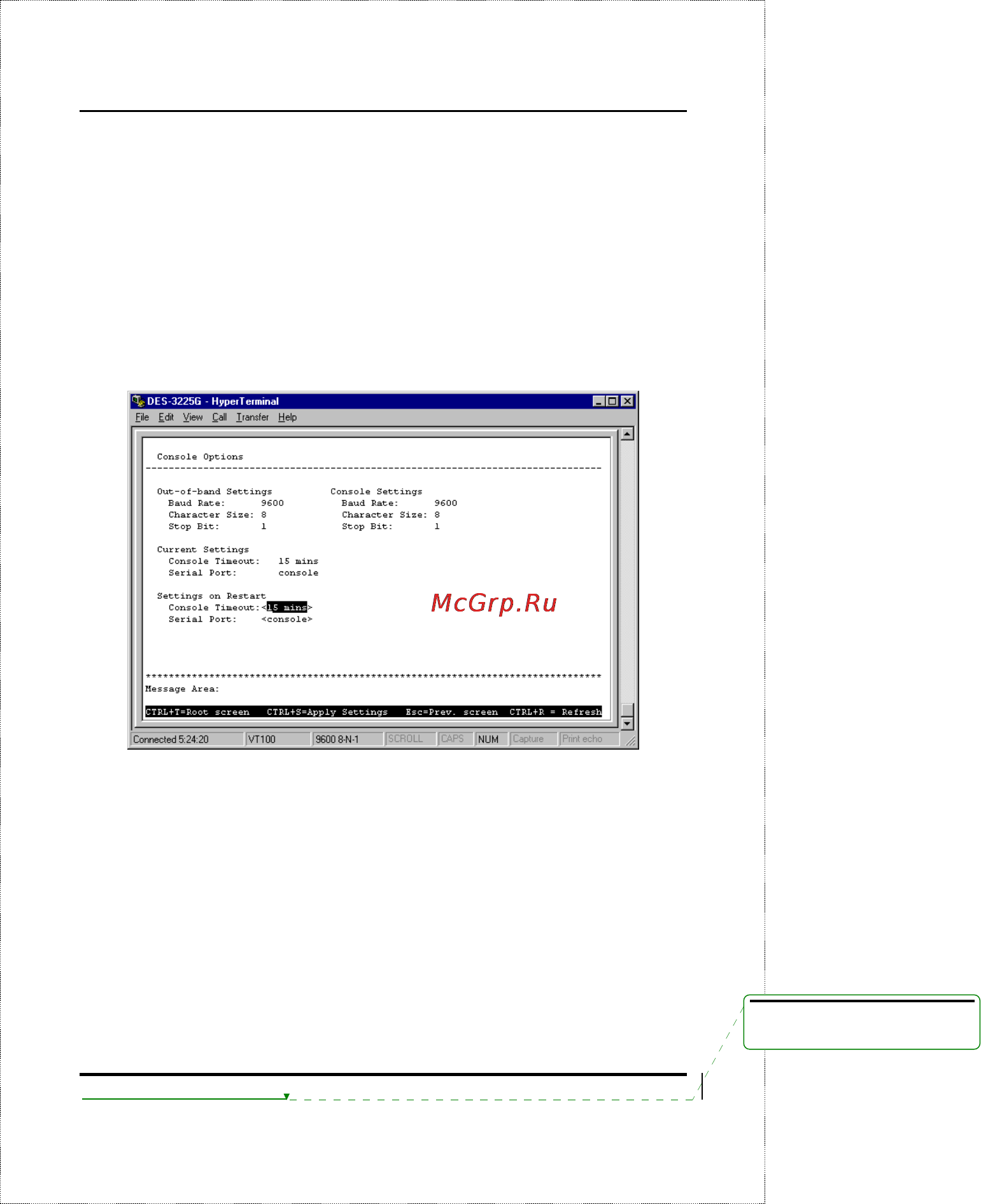

Figure 6-9. Console Options screen
The following fields can be set:
Settings on Restart:
♦ Console Timeout This setting for the restart of the console
is 15 mins, 30 mins, 45 mins, 60 mins, or Never.
♦ Serial Port Determines whether the serial port should be
used for out-of-band (SLIP) management or for console
Удалено: Using the Console
Interface
