24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 97

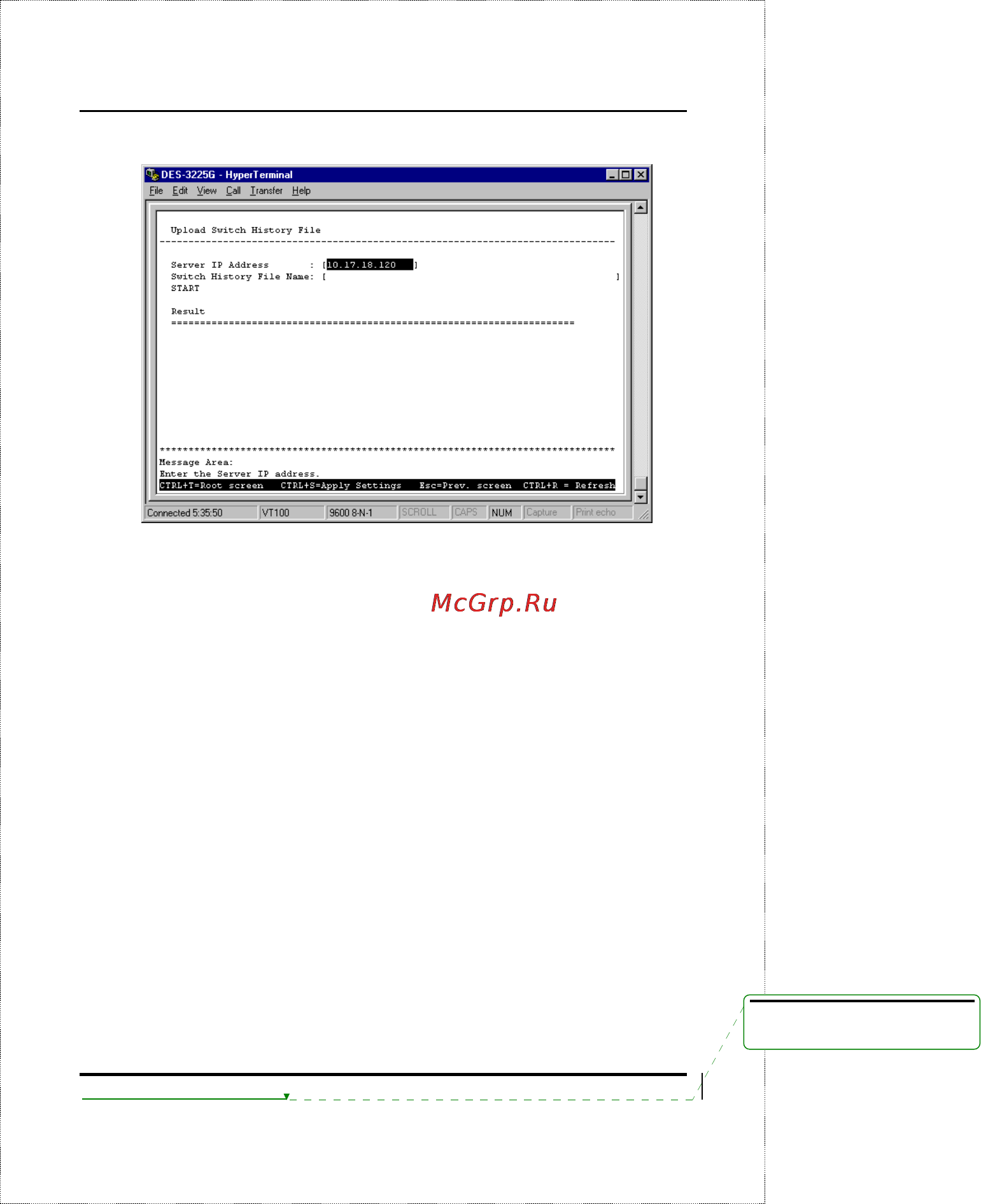

Figure 6-38. Upload Switch History File screen
The fields you can set are:
♦ Server IP Address The IP address of the TFTP server where
the switch history file is located.
♦ Switch History File Name The name and full path of the file
to be transferred.
Press START to begin the upload. The result will be displayed in
the lower part of the screen.
Community Strings and Trap Stations
The Switch sends out SNMP traps to network management
stations whenever certain exceptional events occur, such as when
the Switch is turned on or when a system reset occurs. The Switch
allows traps to be routed to up to four different network
management hosts.
