24-port NWay Ethernet Switch User’s Guide
Connecting The Switch 21
♦ A 100BASE-TX hub or switch can be connected to the Switch
via a two-pair Category 5 UTP/STP straight cable.
If the other switch or hub contains an unused Uplink port, we
suggest connecting the other device’s Uplink (MDI-II) port to any of
the switch’s (MDI-X) ports (1x - 22x, or one of the 100BASE-TX
module ports) using a normal straight-through cable, as shown
below.

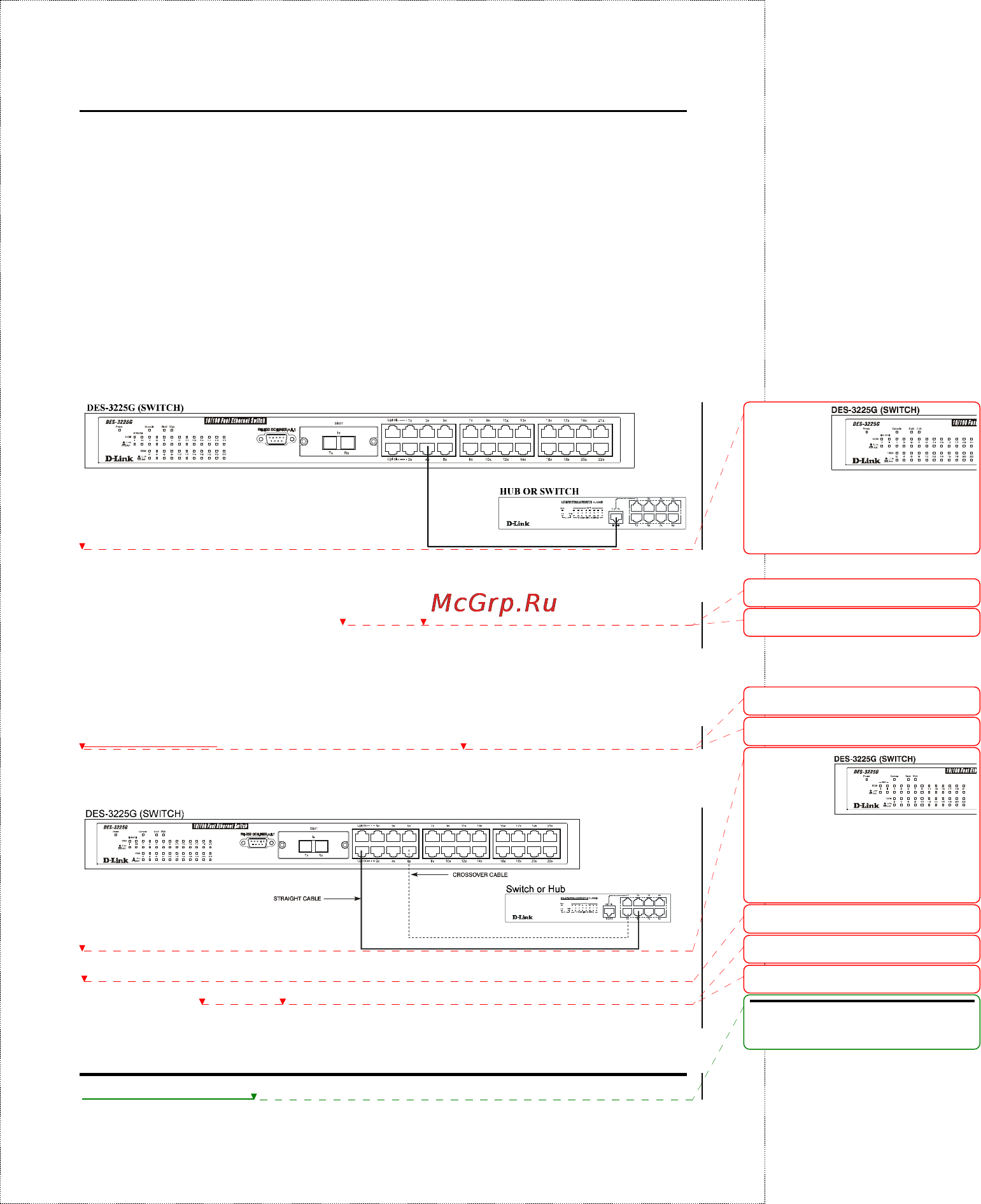

Figure 4-2. Switch connected to a 10BASE-T or 100BASE-TX hub
or switch
If the other device does not have an unused Uplink port, make the
connection with a normal straight-through cable from one of the
Uplink ports on the switch to any normal crossed port on the hub.
Alternatively, if you have a crossover cable you can save the Uplink
ports for other connections and make this one from a crossed port to
another crossed port.
Figure 4-3. Switch connected to a normal (non-Uplink) port on a hub
or switch using a straight or crossover cable
Удалено:
Удалено:
(
Удалено: )
Удалено: I
Удалено:
,
Удалено:
Удалено: ¶
Удалено:
(
Удалено: )
Удалено: Using the Console
Interface
