D-Link DES-2108/E [154/199] Configure mac based vlan

24-port NWay Ethernet Switch User’s Guide

140 Web-Based Network Management

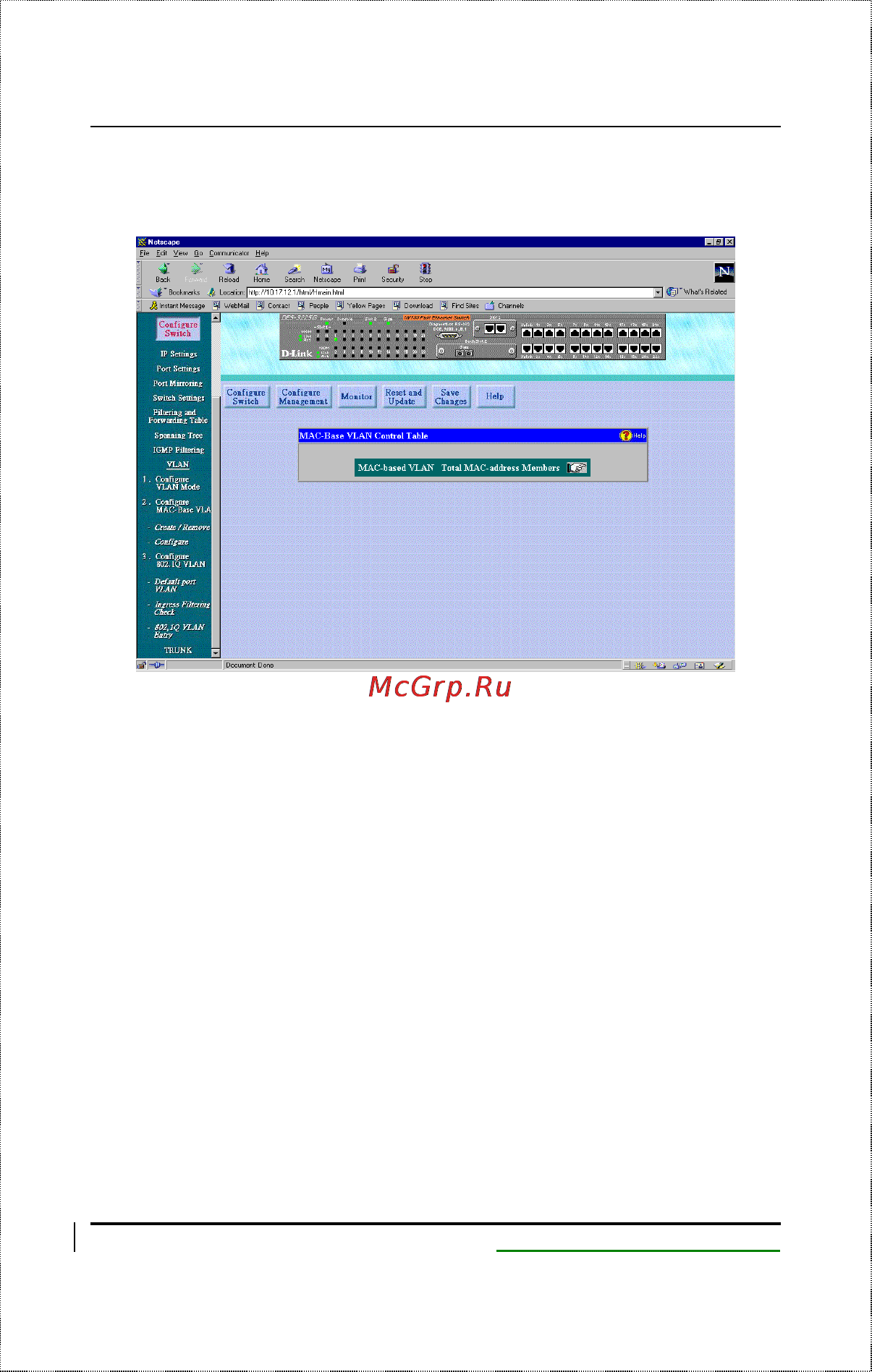

Configure MAC-Based VLAN

Click the pointer icon on the right hand side to access the

Add/Delete MAC-Based VLAN window:
