D-Link DES-2108/E [101/199] Configure 802 q vlan

24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 87

Configure 802.1Q VLAN

Choose Configure 802.1Q VLAN on the VLAN Configuration

screen (under Configure VLAN of the Configuration menu) to

access the 802.1Q VLAN Configuration menu:

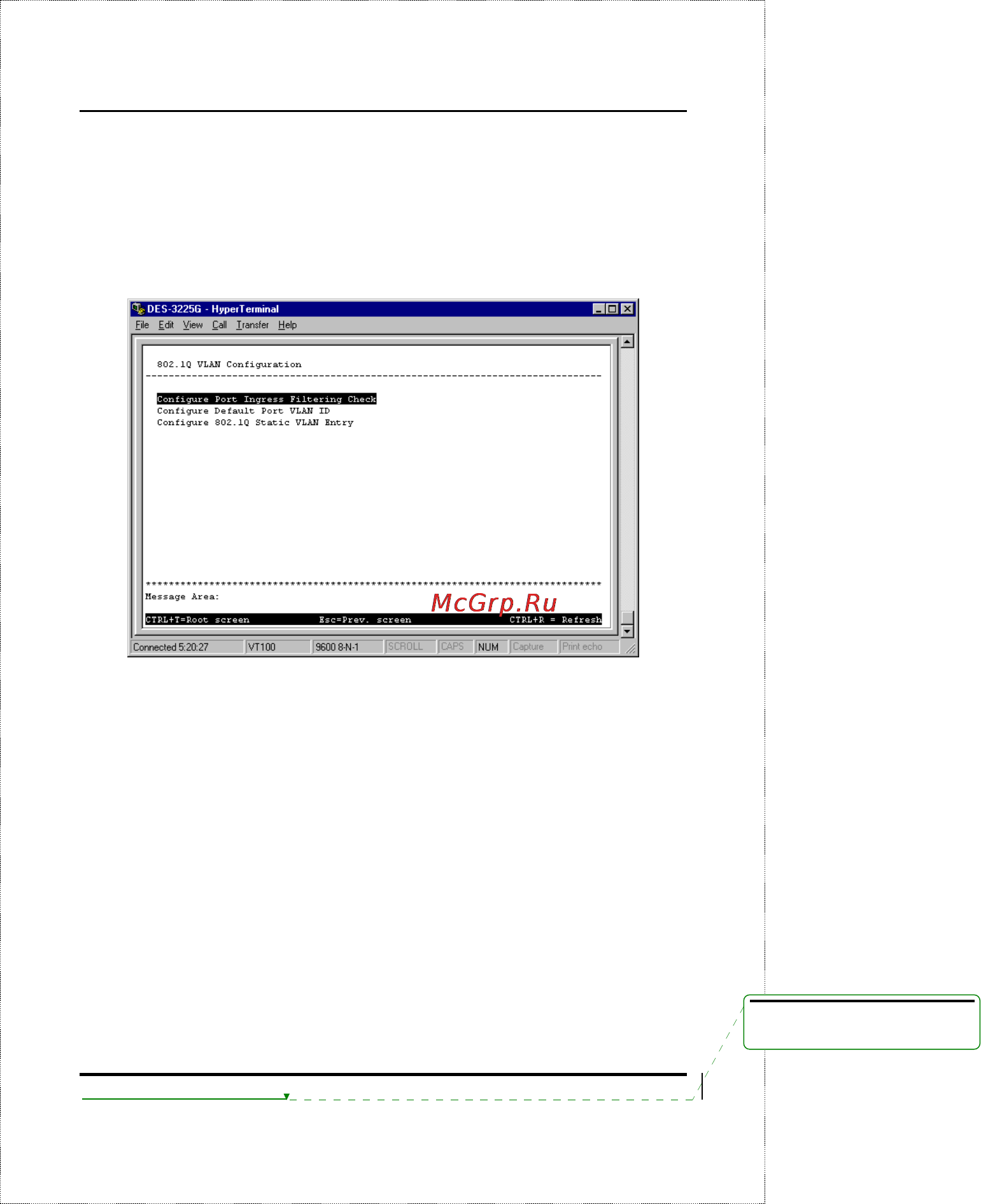

Figure 6-29. 802.1Q VLAN Configuration menu

Choose Configure Port Ingress Filtering Check to access the

first item on the menu. The following screen appears:
