D-Link DES-2108/E [89/199] Stp port control

24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 75

ID, which in turn is used when determining the root bridge

of a multibridged network. The root bridge is responsible

for processing data packets when network loops occur. The

smaller the number set, the higher the bridge priority is.

The higher the bridge priority, the more chance the bridge

has of becoming the root bridge. Zero is the highest

priority.

STP Port Control

To change the parameters on individual ports:

1. Choose Configure Spanning Tree Protocol from the

Configuration menu.

2. Choose STP Port Control from the Configure Spanning

Tree Protocol menu. The following screen appears:

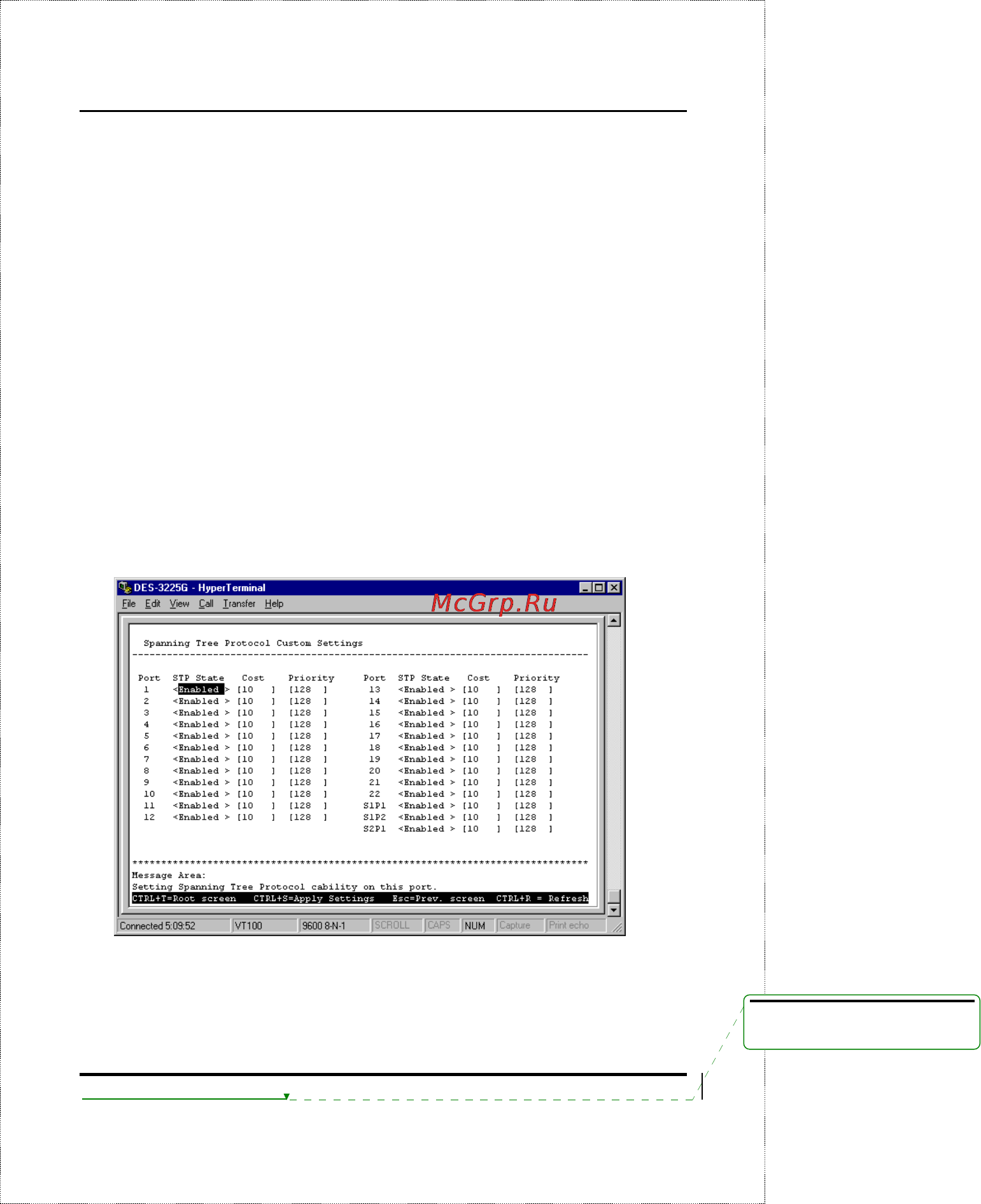

Figure 6-18. Spanning Tree Protocol Custom Settings screen
