24-port NWay Ethernet Switch User’s Guide
Web-Based Network Management 125
be forwarded to several ports, and if some of them are
‘‘blocking,’’ the packet will not be discarded, rather it will
be forwarded only to the ports that are not ‘‘blocking.’’
Filtering and Forwarding Table
When a packet hits the Switch, it looks in the filtering and
forwarding tables to decide what to do with the packet; either to
filter it off the network, or to forward it through the port on which
its destination lies.

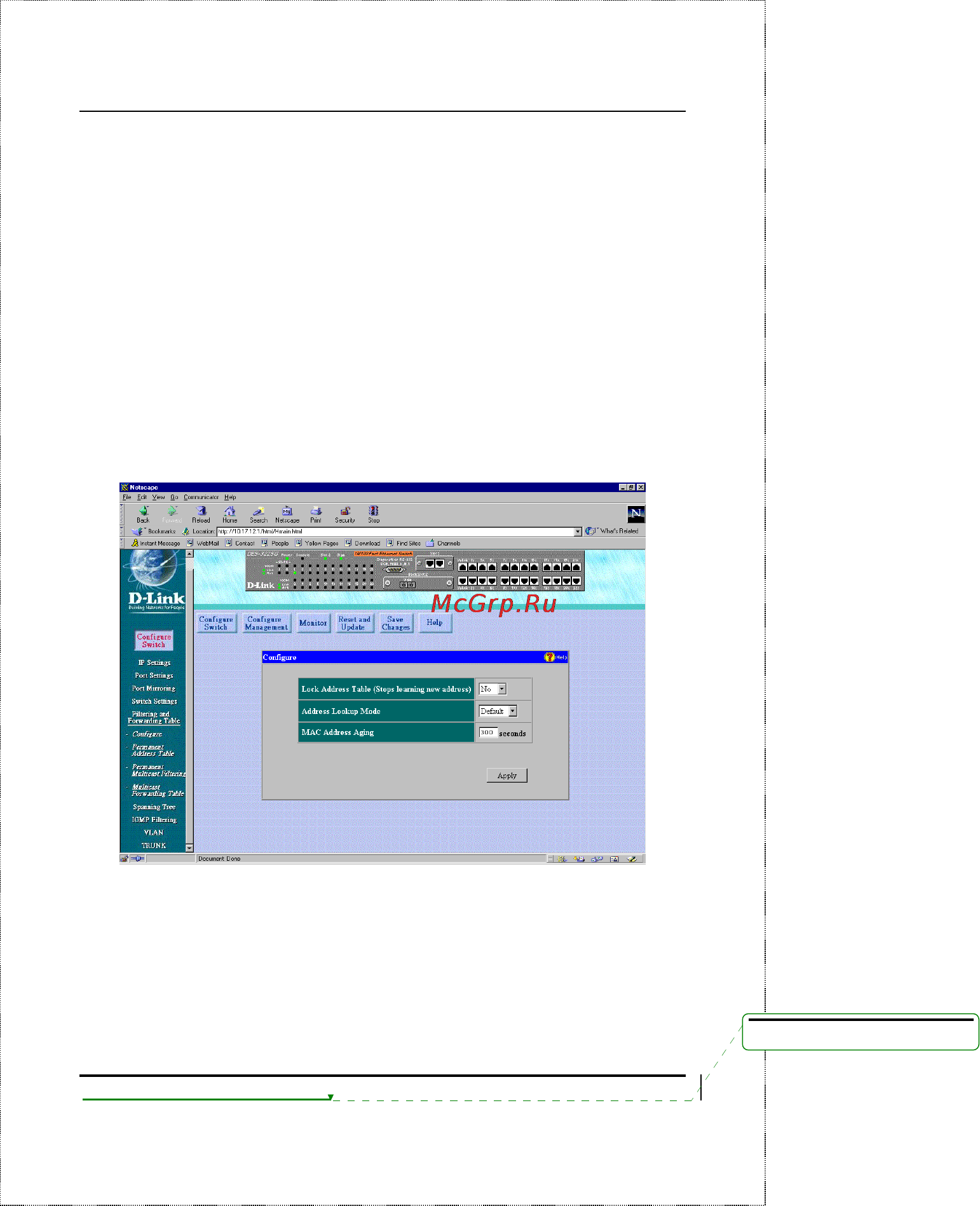

Configure
This window allows you to stop or start address learning, use an
address look-up mode, and select an age-out time of the MAC
address in the selected address table. Click Apply to let your
changes take effect.
The following fields above can be set:
