D-Link DES-2108/E [160/199] Traps and community strings

24-port NWay Ethernet Switch User’s Guide

146 Web-Based Network Management

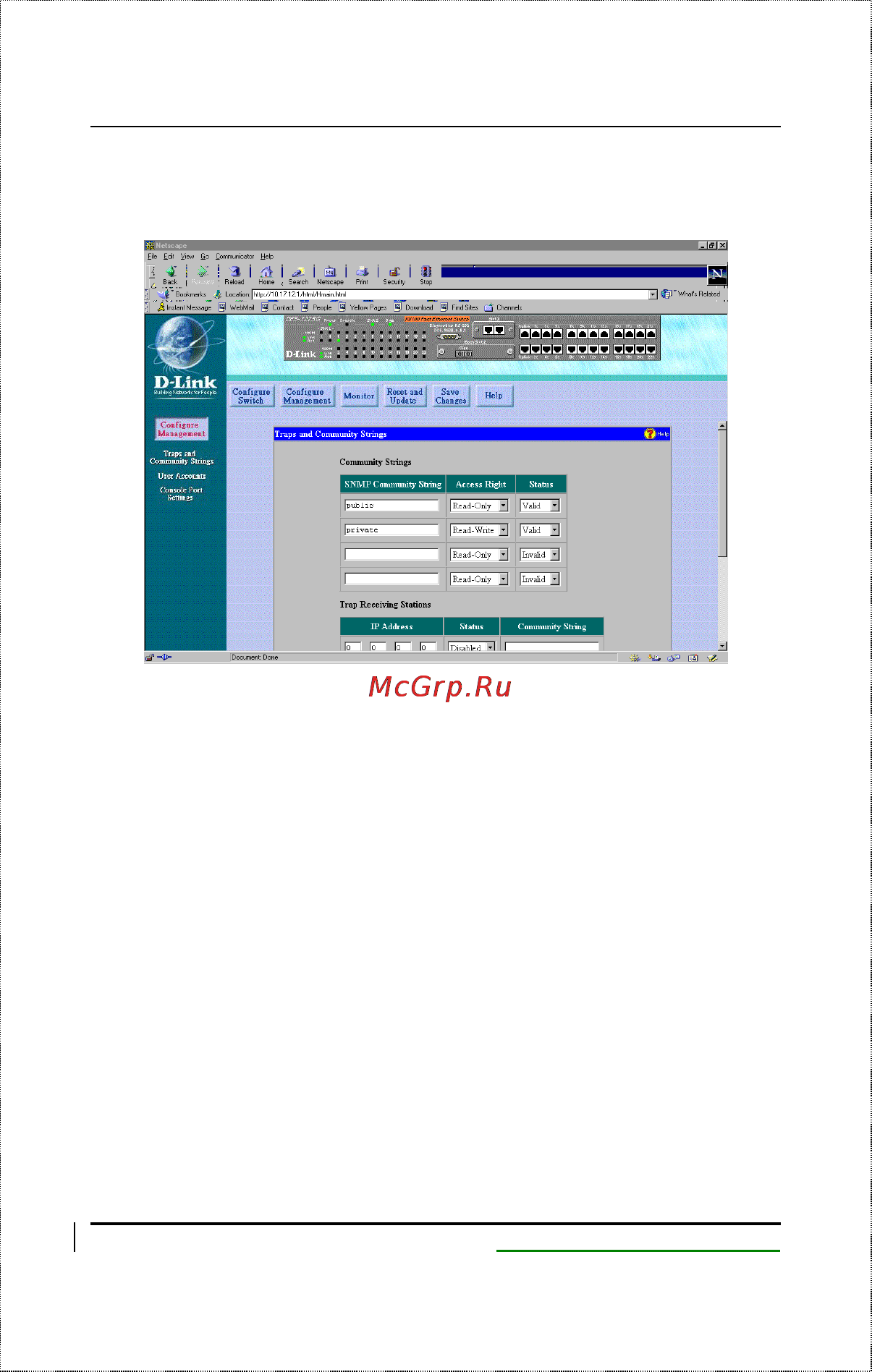

Traps and Community Strings

To use the functions on this window, enter the appropriate

SNMP information in the Community Strings and Trap

Receiving Stations sections--you may enter up to four entries

in each section. A trap receiving station is a device that

constantly runs a network management application to receive

and store traps. Then click Apply to put the settings into

effect.

The Community Strings information is described as follows:

♦ SNMP Community String A user-defined SNMP

community name.

♦ Access Right The permitted access of Read-Only or

Read-Write using the SNMP community name.

♦ Status Option to set the current community string to

Valid or Invalid.
