24-port NWay Ethernet Switch User’s Guide
20 Connecting The Switch

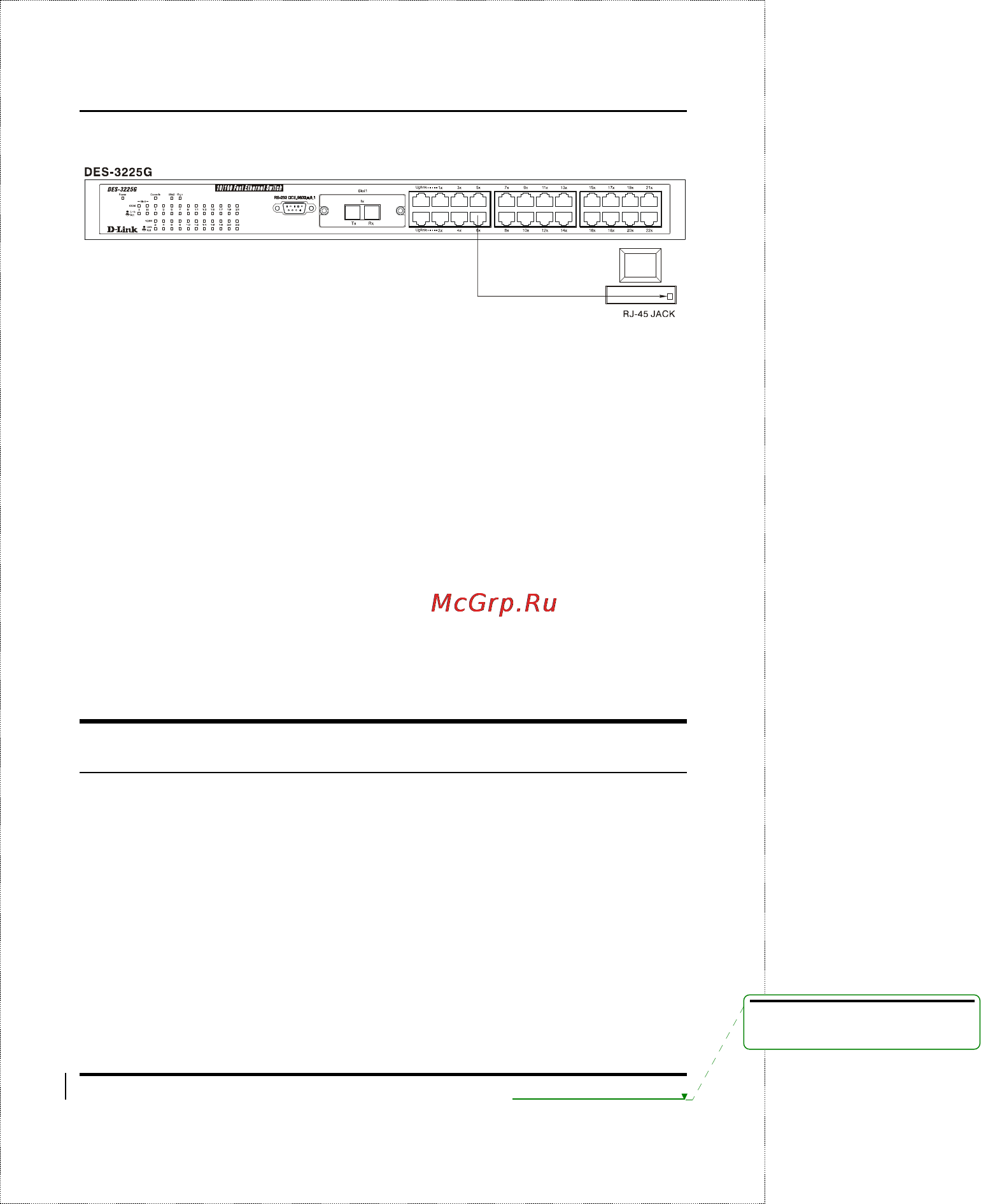

Figure 4-1. Switch connected to an End Node
The LED indicators for the port the end node is connected to are lit
according to the capabilities of the NIC. If LED indicators are not
illuminated after making a proper connection, check the PC’s LAN
card, the cable, switch conditions, and connections.
The following LED indicator states are possible for an end node to
switch connection:
1. The 100M LED indicator comes ON for a 100 Mbps and stays
OFF for 10 Mbps.
2. The Link/Act LED indicator lights up upon hooking up a PC
that is powered on.
Switch to Hub or Switch
These connections can be accomplished in a number of ways. The
most important consideration is that when using a normal,
straight-through cable, the connection should be made between a
normal crossed port (Port 1X, 2X, etc.) and an Uplink (MDI-II) port.
If you are using a crossover cable, the connection must be made
from Uplink to Uplink, or from a crossed port to another crossed
port.
♦ A 10BASE-T hub or switch can be connected to the Switch
via a two-pair Category 3, 4 or 5 UTP/STP straight cable.
