24-port NWay Ethernet Switch User’s Guide

Web-Based Network Management 163

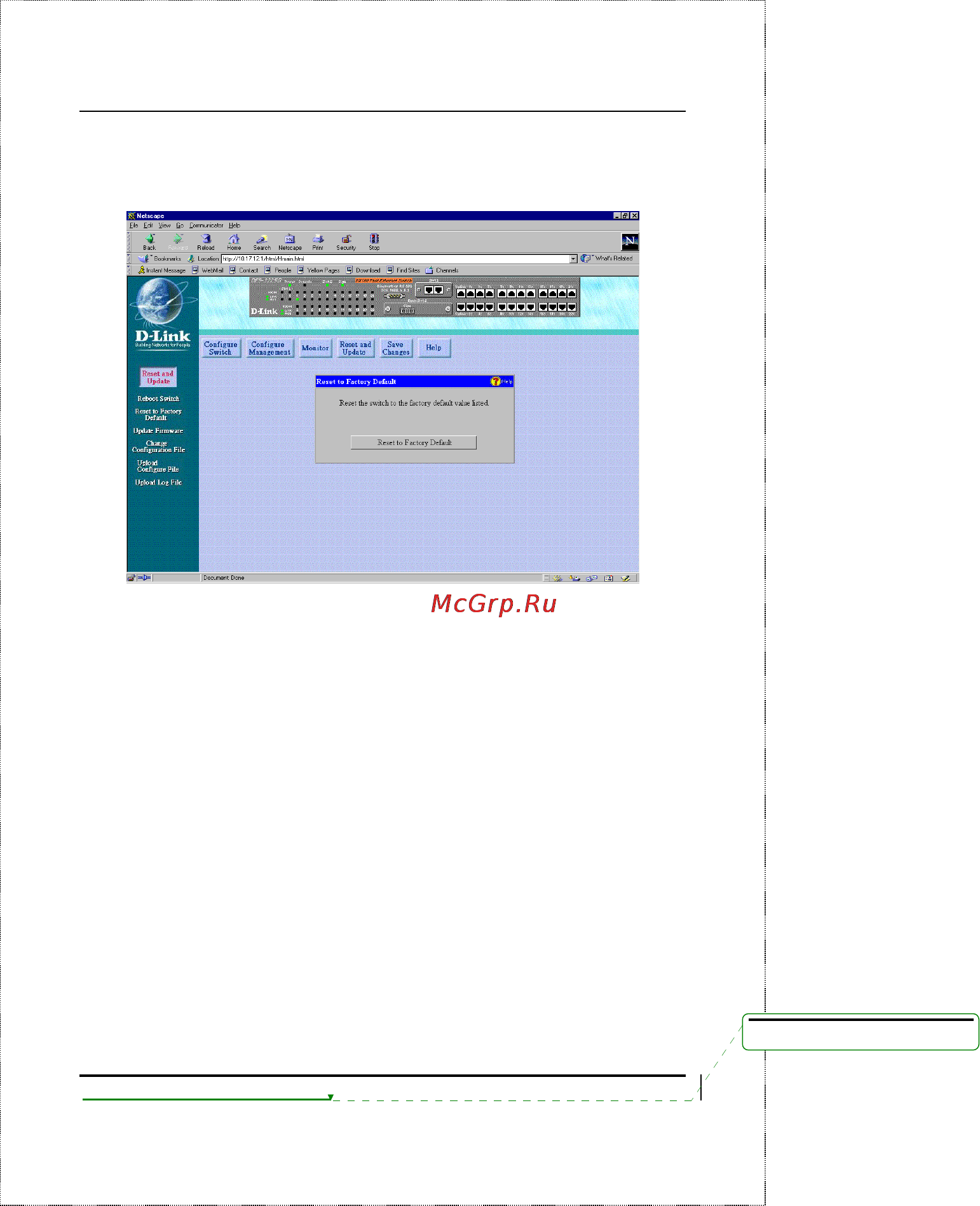

Reset to Factory Default

Doing a remote reset is equivalent to turning the Switch off and on

again. All parameters are returned to the values stored in

EEPROM. Click the Reset to Factory Default to reset the

Switch.
